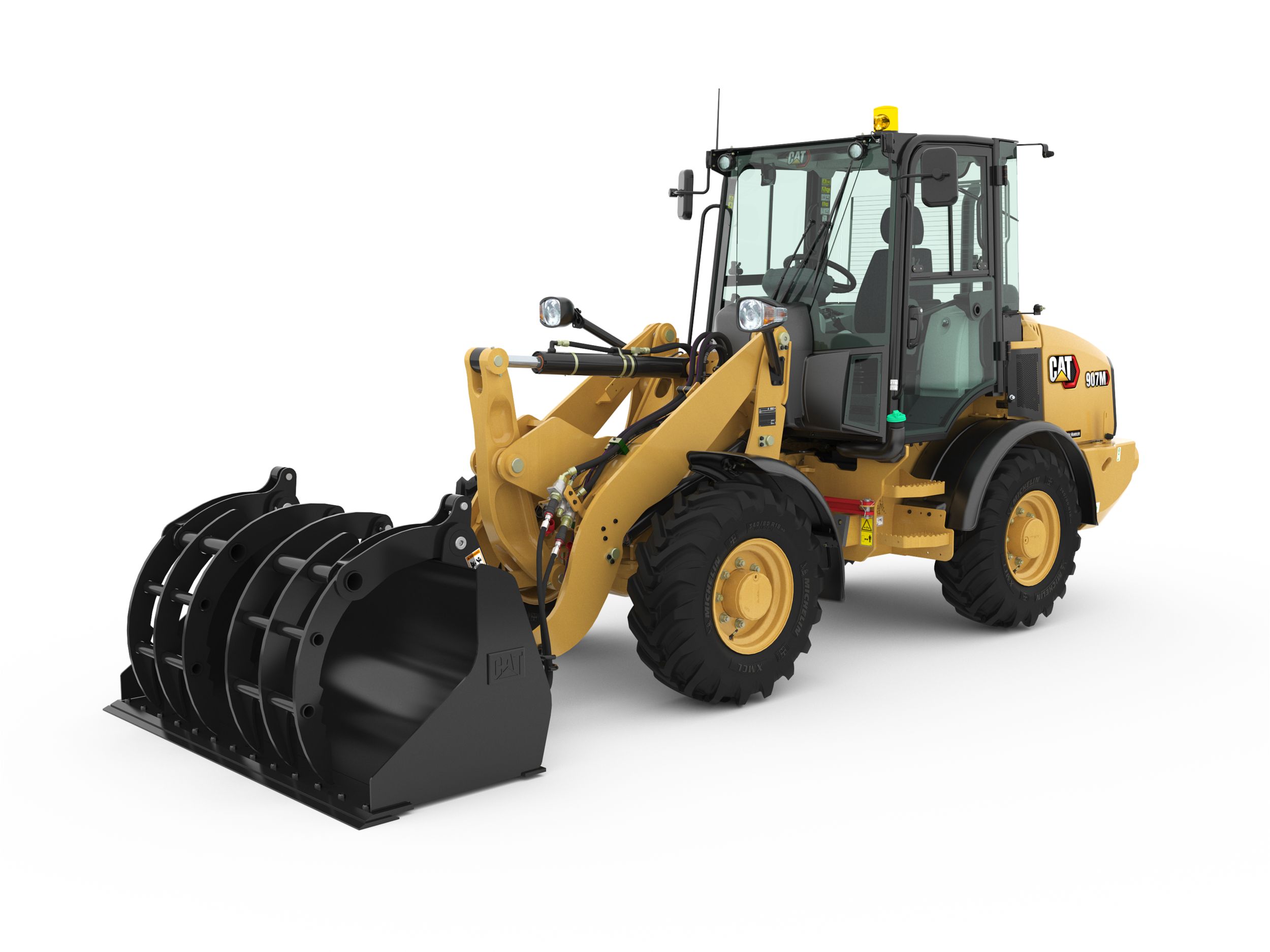

Wheel Loaders

Engine

Maximum Gross Power
73HP
Model
Cat C3.3B DIT*
Emissions
*The Cat C3.3B DIT engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards.
Rated Net Power - 2,500 rpm - SAE J1349
68HP
Maximum Gross Power - ISO 14396
73HP
Maximum Gross Power - SAE J1995
74HP
Maximum Net Power - SAE J1349
68HP

Weights

Operating Weight
12958lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).

Buckets

Bucket Capacities
0.75-1.2 m3 (1.0-1.6 yd3)
Bucket Capacities - ISO Coupler
0.75-1.2 m³
Bucket Capacities - SSL Style Coupler
1.0-1.6 yd³

Engine - Tier 4 Final/Stage IV

Maximum Net Power - ISO 9249
69HP

Travel Speeds

Speed 1
6.2mile/h
Speed 2
12.4mile/h
High Speed
21.7mile/h

Hydraulic System

Main Relief - 3rd Aux Flow
3400psi
Main Relief - 3rd Aux Flow: Standard
20gal/min
Main Relief - 3rd Aux Flow: High Flow
31gal/min
Hydraulic Cycle Time - Lift
5.2 seconds
Hydraulic Cycle Time - Lower
3.2 seconds
Hydraulic Cycle Time - Dump
1.3 seconds
Hydraulic Cycle Time - Rackback
2.1 seconds

Service Refill Capacities

Cooling System
4.5gal (US)
Fuel Tank
20.6gal (US)
Hydraulic System
18.5gal (US)
Engine Oil
3gal (US)

Dimensions - With ISO Coupler - Approximate

Height - Ground to Cab
8.33ft
Height - Ground Clearance
11in
Length - Wheel Base
7.08ft
Length - Overall with Bucket
17.67ft
Reach - Bucket at 45°
2.42ft
Dig Depth
4.2in
Clearance - Bucket at 45°
8.08ft
Clearance - Level Bucket
9.83ft
Height - Bucket Pin
10.5ft
Departure Angle
33°
Length - Overall with Forks
19.42ft
Reach - Ground
2.42ft
Reach - Level Arm
4ft
Fork Dig Depth
3.1in
Clearance - Level Arm
4.42ft
Clearance - Full Lift
9.92ft
Fork Reach at Full Lift
1.42ft
Turning Radius - Over Bucket
14.67ft
Turning Radius - Inside Tire
6.83ft
Width - Bucket
6.67ft
Width - Tread Center
4.58ft
Width - Over Tires
6ft
Articulation Angle
39°
Dump Angle at Full Lift
45°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab
8.33ft
Height - Ground Clearance
11in
Length - Wheel Base
7.08ft
Length - Overall with Bucket
18.17ft
Reach - Bucket at 45°
2.75ft
Dig Depth
4.5in
Clearance - Bucket at 45°
7.75ft
Clearance - Level Bucket
9.83ft
Height - Bucket Pin
10.5ft
Departure Angle
33°
Length - Overall with Forks
19.42ft
Reach - Ground
2.42ft
Reach - Level Arm
4.17ft
Fork Dig Depth
0.2in
Clearance - Level Arm
4.67ft
Clearance - Full Lift
10.17ft
Fork Reach at Full Lift
1.67ft
Turning Radius - Over Bucket
14.75ft
Turning Radius - Inside Tire
6.83ft
Width - Bucket
6.67ft
Width - Tread Center
4.58ft
Width - Over Tires
6ft
Articulation Angle
39°
Dump Angle at Full Lift
43°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.

Operating Specifications - ISO Coupler

Tire Size
340/80 R18
Operating Weight
12854lb
Rated Bucket Capacity
1.2yd³
Breakout Force - Bucket
11240lbf
Rated Operating Load at Full Turn - Bucket
4019lb
Straight Tipping Load - Bucket
9531lb
Full Turn Static Tipping Load - Bucket
8038lb
Rack Back - Transport Position
52°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
5226lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).

Operating Specifications - SSL Coupler

Tire Size
340/80 R18
Operating Weight
12958lb
Rated Bucket Capacity
1.2yd³
Breakout Force - Bucket
8983lbf
Rated Operating Load at Full Turn - Bucket
3763lb
Straight Tipping Load - Bucket
8946lb
Full Turn Static Tipping Load - Bucket
7529lb
Rack Back - Transport Position
53°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
4974lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).

Maximum Material Densities - General Purpose Bucket

Rated Capacity
1.2yd³
Dump Height
97in
Maximum Material Density
3031lb/yd³
Bucket Width
80in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Multi Purpose Bucket

Rated Capacity
1yd³
Dump Height
85in
Maximum Material Density
3460lb/yd³
Bucket Width
74in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Light Material Bucket

Rated Capacity
1.6yd³
Dump Height
85in
Maximum Material Density
2363lb/yd³
Bucket Width
82in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Standard Equipment:

  • Loader
    • Return to dig work tool positioner
    • Adjustable implement modulation
  • Transmission/hydraulics
    • Adjustable speed control (creeper control)
    • Rimpull control
    • Electronic throttle lock
    • Adjustable Hystat response settings
    • Ride control
    • 18° frame oscillation, 78° articulation
    • Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
    • Transmission inching function
    • Hydrostatic drive
    • Work tool quick coupler
    • Proportional auxiliary hydraulic circuit
    • Loader arm float function
    • Connect under pressure hydraulic quick connector
    • Parallel lift Z-bar loader
    • Demand based cooling fan
  • Engine
    • Precleaner for engine air filter
    • Cat C3.3B DIT Tier 4 Final/Stage IIIB
    • Two stage air cleaner with visual indicator
    • Cat extended life coolant
    • Lockable engine compartments
    • Easy quick release fuel filter/water separator
    • Engine oil drain valve (non spill eco drain)
    • Closed circuit breather
    • Eco Mode
  • Electrical
    • Magnetic rotating beacon
    • Work tool wiring harness
    • Working lights, two front and two rear
    • Cab mounted fuse panel
    • Battery disconnect switch
    • Heavy duty battery, 12V
    • Engine cold starter aid
    • Alternator 90 amp
    • Service point connector for electronic diagnostics (Electronic Technician)
    • Reverse alarm
  • General
    • E-coat paint primer
    • Pressure test points
    • Recovery hitch and pin
    • Scheduled Oil Sampling S·O·S ports
  • Operator Environment
    • Adjustable steering column
    • Air conditioning
    • Heater with window, side and feet vents
    • Heated rear window
    • Radio/CD/MP3/WMA/AUX
    • Two doors with sliding window
    • Wiper/washer, front and rear
    • Cabin light
    • Pressurized cab
    • Cup holder
    • Sun visor
    • ROPS and FOPS certified canopy/cab
    • Adjustable arm rest
    • Retractable seat belt
    • Auxiliary power sockets
    • Coat hook
    • On board digital display cluster
    • Sound suppression
    • Multifunction joystick with direction control
    • Two external knock back mirrors
    • Warning indicators for major systems
    • Easy clean cab floor
    • Lockable storage box
    • Adjustable internal mirror
    • Operator station on isolation mounts
    • Digital service hour meter
    • Gauges: fuel hydraulic temp, coolant temp, speedometer
    • Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
    • Suspended brake/accelerator pedals
    • Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat

Optional Equipment:

  • Transmission/hydraulics
    • 100% differential lock on both axles, selectable on the move
  • Loader
    • High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
    • Load check valves
  • Engine
    • Engine block heater 120V
  • Electrical
    • Machine Security System (MSS)
  • General
    • Custom color
    • Tire options
  • Fluids
    • Cat extended life coolant (–50° C/–58° F)
  • Operator Environment
    • Rear blind
  • Work Tools
    • For all work tools and standard/high flow options (consult your Cat dealer)
