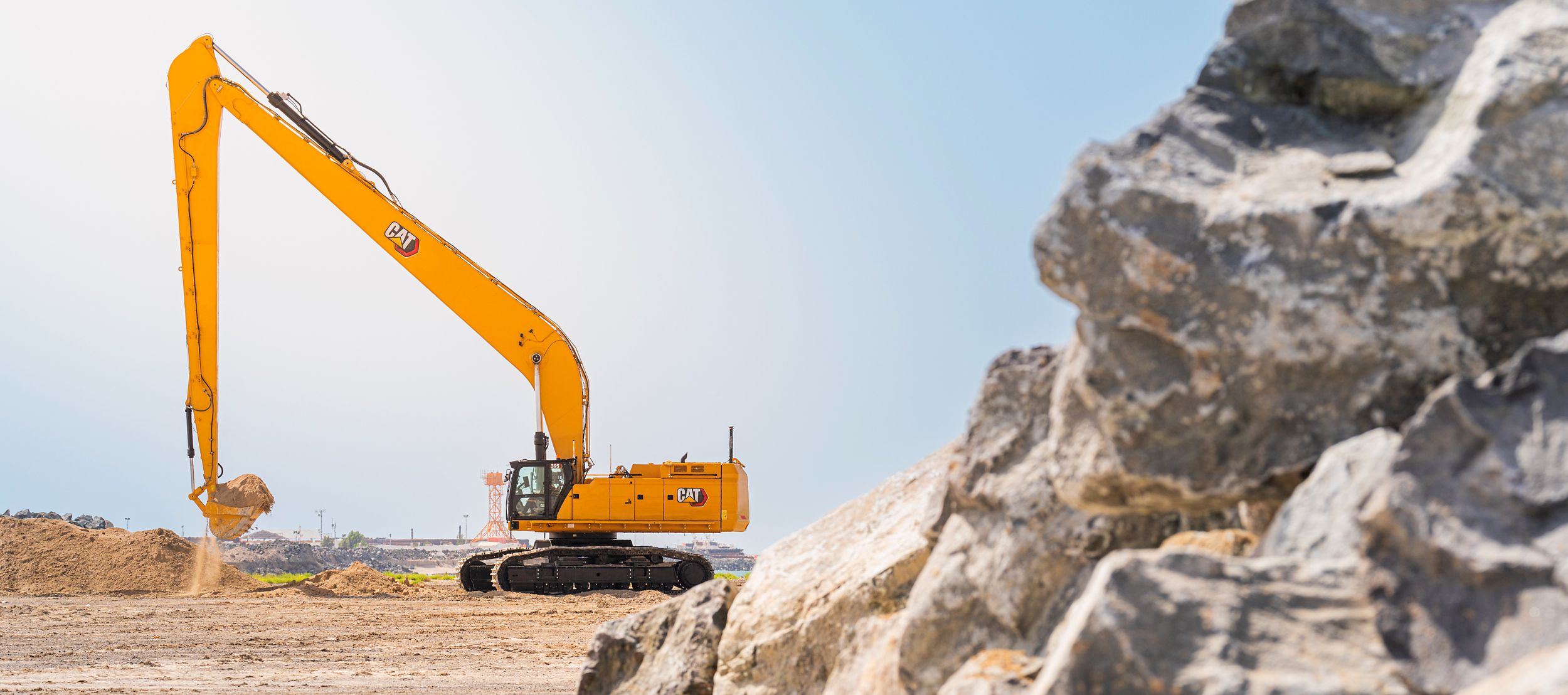

395 Excavator

Back to Home

The Cat 395 gets every job done every time. A 10% higher digging force eases bucket penetration to reduce digging cycle time in the most demanding applications. With up to a 15% higher payload and the ability to carry the SD6.5m3 bucket, this mass excavator can load a 70-ton off-road truck in 5-6 passes. For deep trenching work, the 395 digs down deep with maximum digging depths from 7190mm (23’7” ft) up to 11 710 (38’5” ft). The 395 is built for extreme durability with 2x reinforced booms, sticks, upper and lower frames. Reduced hydraulic oil capacity, improved filters with longer service intervals, and an integrated auto-lube-ready system save you up to 20% in maintenance costs. Equipped with the latest technology and data, the 395 helps you make informed and smart decisions to improve efficiency, increase productivity, and enhance safety.

Request a quote
Biodiesel Capability B20¹
Bore 6in
Displacement 1105in³
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Engine Model Cat C18
Engine Power - ISO 14396 543HP
Engine Power - ISO 14396 (DIN) 551hp (metric)
Net Power - ISO 9249 542HP
Net Power - ISO 9249 (DIN) 550hp (metric)
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,700 rpm. Advertised power is tested per the specified standard in effect at time of m
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO
Stroke 7in
Note (1) Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.
Operating Weight 207400lb
Boom GP 8.4m (25'7")
Bucket SD 5.2m³ (6.8 yd³)
Bucket Digging Force - ISO 86100ft·lbf
Maximum Cutting Height 44.5ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 31.4ft
Maximum Digging Depth 31.9ft
Maximum Loading Height 30.4ft
Maximum Reach at Ground Level 48.3ft
Maximum Vertical Wall Digging Depth 22.3ft
Minimum Loading Height 9.11ft
Stick R4.4m (14'5")
Stick Digging Force - ISO 68540ft·lbf
Main System - Maximum Flow - Implement 281gal/min
Maximum Pressure - Equipment 5366psi
Maximum Pressure - Swing 4496psi
Maximum Pressure - Travel 5076psi
Maximum Swing Torque 267333ft·lbf
Swing Speed 6.26r/min
Cooling System 19gal (US)
DEF Tank 21gal (US)
Engine Oil 18gal (US)
Final Drive - Each 5gal (US)
Fuel Tank Capacity 322gal (US)
Hydraulic System - Including Tank 196gal (US)
Hydraulic Tank 98gal (US)
Swing Drive 6gal (US)
Boom GP 8.4m (25'7")
Bucket SD 5.2m³ (6.8 yd³)
Counterweight Clearance 5.5ft
Ground Clearance 2.9ft
Handrail Height 12.4ft
Note Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps
Shipping Height - Top of Cab 12ft
Shipping Length 49.6ft
Stick R4.4m (14'5")
Tail Swing Radius 15.11ft
Track Gauge 11.6ft
Track Length 20.1ft
Track Length to Center of Rollers 16.1ft
Transport Width 12.9ft
Recyclability 98%
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.00 kg (2.2lb) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons).

Standard Equipment:

  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Cab
    • High-resolution 254 mm (10") LCD touch screen monitor
    • Heated seat with air-adjustable suspension (Deluxe only)
    • Heated and cooled seat with auto adjustable suspension (Premium only)
    • Sound suppressed cab with viscous mounts
    • Automatic bi-level air conditioner
    • Jog dial and shortcut keys for monitor control
    • Keyless push-to-start engine control
    • Height-adjustable console, infinite with no tool
    • Tilt-up left-side console
    • 51 mm (2") orange seat belt
    • Bluetooth integrated radio (including USB, aux port and microphone)
    • 2 x 12V DC outlets
    • Cup and storage compartments
    • Openable two-piece front window (Deluxe standard)
    • Upper radial wiper with washer (Deluxe cab only)
    • Parallel wiper with washer (Premium only)
    • Openable polycarbonate skylight hatch (Deluxe standard)
    • LED dome light
    • Floor welcome light
    • Roller front sunscreen
    • Roller rear sunscreen (Premium standard)
    • Rear window emergency exit
    • Washable floor mat
    • Beacon Ready
  • Cat Technology
    • VisionLink
    • Remote Flash
    • Remote Troubleshoot
    • Operator Coaching
    • Compatibility with radios and base stations from Trimble, Topcon, and Leica
    • Capability to install 3D grade systems from Trimble, Topcon, and Leica
    • Cat Grade 2D
    • Cat Assist (Grade, Boom, Bucket, Swing, Lift)
    • Cat Payload (Static Weigh, Semiautomatic Calibration, Payload/Cycle Information, USB Reporting Capability)
    • Work tool recognition (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)
    • Work tool tracking (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)
  • Electrical System
    • Maintenance-free 1,400 CCA batteries (x2)
    • Centralized electrical disconnect switch
    • Chassis light
    • Exterior lights (integrated into storage box)
  • Engine
    • Three selectable modes: Power, Smart, and Eco
    • Auto engine speed control
    • Up to 4500m (14,760 ft) altitude capability
    • 52°C (126°F) high-ambient cooling capacity
    • -18°C (-0.4°F) cold start capability
    • Hydraulic reverse fan
    • Double element air filter with integrated pre-cleaner
    • 3 vertical side-by-side cooling system
    • Remote disable
    • 95 Amp alternator
  • Hydraulic System
    • Boom and stick regeneration circuit
    • Electronic main control valve
    • Dedicated closed loop swing circuit
    • Anti-reaction valve
    • Auto hydraulic oil warmup
    • Auto swing parking brake
    • High performance hydraulic return filter
    • Two speed travel
    • Bio hydraulic oil capability
  • Safety And Security
    • Caterpillar One Key security system
    • Lockable fuel drain compartment
    • Lockable external tool / storage box
    • Lockable door, fuel, and hydraulic tank locks
    • Lockable disconnect switch
    • Service platform with anti-skid plate & recessed bolts
    • Right hand handrail and hand hold (ISO 2867:2011 compliant)
    • Visibility mirror package
    • Signaling/warning horn
    • Ground-level secondary engine shutoff switch
    • Rearview and right-hand-sideview cameras
    • Walkway
    • Travel alarm
    • 2D E-Fence (E-ceiling, E-floor, E-swing, E-wall, E-cab avoidance)
  • Service And Maintenance
    • Integrated vehicle health management system
    • Auto lube ready
    • Grouped location of engine oil & fuel filters
    • Scheduled Oil Sampling (S·O·S) ports
    • QuickEvac maintenance ready
    • Reversing cooling fan
  • Undercarriage And Structures
    • Long variable gauge undercarriage
    • Swivel guard
    • Grease lubricated track
    • Standard counterweight
    • HD bottom guard
    • HD travel motor guard
    • Long variable gauge
    • Standard counterweight
    • Towing eye on base frame

Optional Equipment:

  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Booms And Sticks
    • 7.25 m (23'9") Mass boom
    • 5.5 m (18'1") HD Reach stick
    • 8.4 m (27'7") GP boom
    • 10 m (32'10") Reach boom
    • 2.92 m (9'7") Mass stick
    • 2.92 m (9'7") GP stick
    • 3.4 m (11'2") Mass stick
    • 3.4 m (11'2") GP stick
    • 3.7 m (12'2") GP stick
    • 4.4 m (14'5") HD Reach stick
    • Bucket linkage, HB2 type without lifting eye, Autolube ready
    • Bucket linkage, HB2 type without lifting eye, Autolube ready
    • Bucket linkage, JC type with lifting eye, Autolube ready
    • Bucket linkage, JC type without lifting eye, Autolube ready
  • Cab
    • Cat Stick Steer
    • Auxiliary relay
    • Additional high-resolution LCD touch screen monitor for Cat Grade Advanced 2D and 3D
    • Roller rear sunscreen (Deluxe)
    • Radial lower wiper
    • Joystick with horizontal sliders
    • LH/RH electrical pedal for tool control
    • Dual exit rear window kit
    • Front windshield laminated glass (P5A glass, EU demolition regulation)
    • Cab/Operator Protective Guards (OPG) (not compatible with cab light cover, rain protector)
    • Mesh guard full front (not compatible with cab light, cover, rain protector)
    • Mesh guard lower half front
    • Rain protector for front windshield plus cab light cover
  • Cat Technology
    • VisionLink Productivity
    • Cat Grade Connectivity
    • Cat Grade 2D with Attachment Ready Option (ARO)
    • Cat Grade 3D single GNSS
    • Cat Grade dual GNSS
    • GNSS antennae
    • Laser catcher
    • Cat Tilt Rotator (TRS) Integration
  • Electrical System
    • 1,800 lumen LED premium surround lights
    • LED boom and cab lights
  • Engine
    • -32°C (-25°F) cold start capability
    • Cold start block heaters
  • Hydraulic System
    • Hydraulic efficiency monitoring
    • Advanced tool control
    • Medium-pressure auxiliary circuit
    • Quick coupler circuit
    • Smart Boom
  • Safety And Security
    • Cat Command remote control
    • Swing alarm
    • 360° visibility
    • Boom lowering check valve
    • Stick lowering check valve
    • Inspection lighting
    • Cat Detect people detection
    • Swing alarm
    • 360° visibility
    • Boom lowering check valve
    • Stick lowering check valve
    • Inspection lighting
    • Tilt-up walkway
    • Bluetooth key fob
    • 76mm (3") retractable seat belt
  • Service And Maintenance
    • Electric refueling pump with auto shutoff
    • Fast-fill fuel system
    • QuickEvac maintenance ready
  • Undercarriage And Structures
    • Counterweight with removal device
    • 650mm (26") HD double grouser track shoes
    • 750mm (30") HD double grouser track shoes
    • 900mm (35") HD double grouser track shoes
    • Three-piece segmented track guiding guards
    • Two-piece segmented track guiding guards
