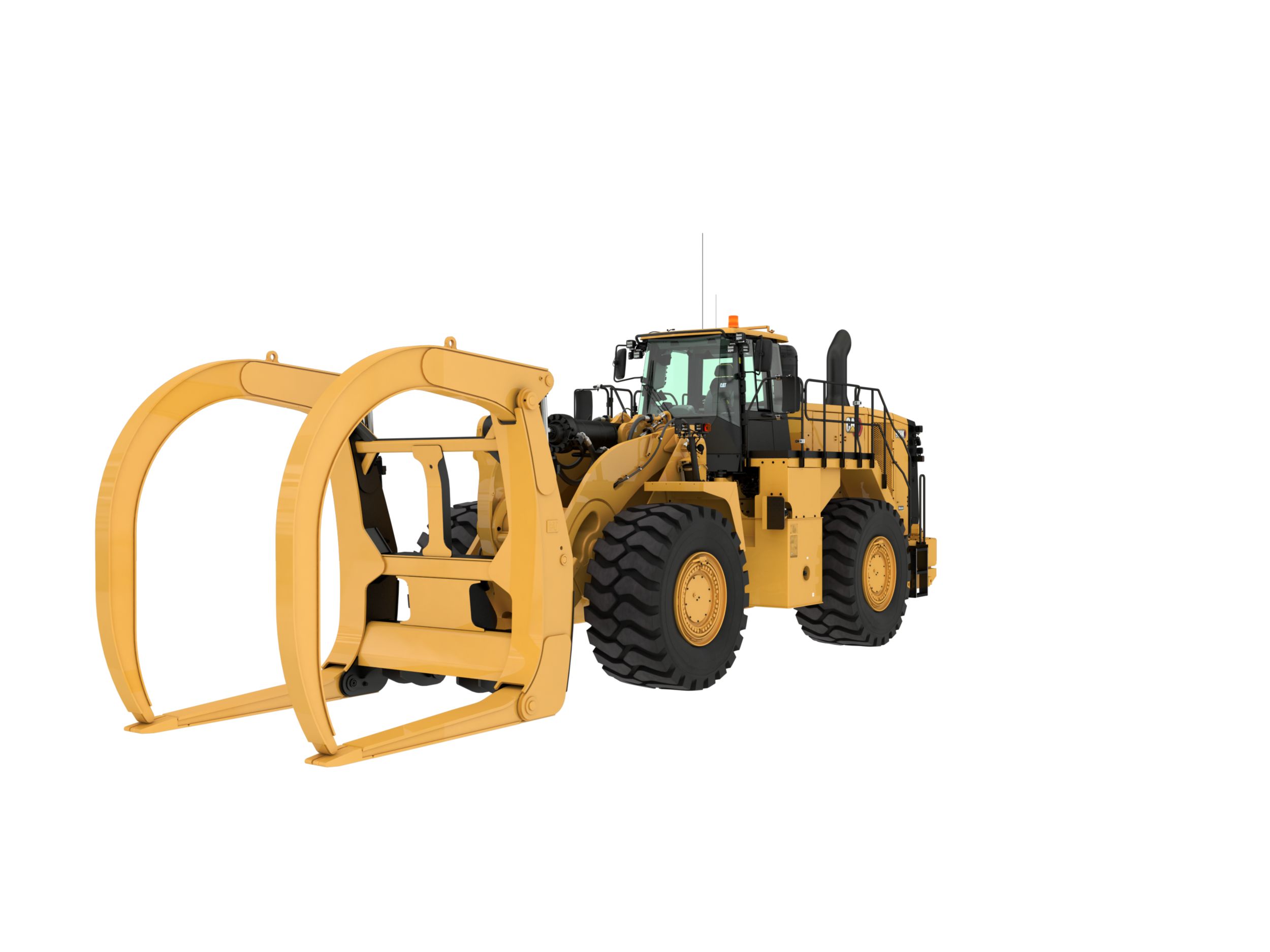

| Bore | 5.7in |
|---|---|
| Displacement | 1105in³ |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V Technology or Tier 2 Equivalent |
| Engine Model | Cat® C18 ™ |
| Gross - ISO 14396 | 580HP |
| Net Power | 541HP |
| Net Power - SAE J1349 | 541HP |
| Peak Power Speed | 1500/min |
| Peak Power Speed - 1,500 rpm - Gross - ISO 14396 | 580HP |
| Peak Power Speed - 1,500 rpm - Gross - SAE J1995 | 588HP |
| Peak Power Speed - 1,500 rpm - Net Power - SAE J1349 | 541HP |
| Peak Torque - 1,200 rpm | 2104lb/ft |
| Rated Speed | 1700/min |
| Stroke | 7.2in |
| Torque Rise | 58% |
| Operating Weight | 139920lb |
|---|---|
| Tipping Load - Articulated 37° | 68005lb |
| Tipping Load - Straight | 78115lb |
| Direct Drive - Forward 1 | Lock-up disabled |
|---|---|
| Direct Drive - Forward 2 | 7.8mile/h |
| Direct Drive - Forward 3 | 13.9mile/h |
| Direct Drive - Forward 4 | 24.4mile/h |
| Direct Drive - Reverse 1 | 5mile/h |
| Direct Drive - Reverse 2 | 8.9mile/h |
| Direct Drive - Reverse 3 | 15.8mile/h |
| Forward - 1 | 4mile/h |
| Forward - 2 | 7.2mile/h |
| Forward - 3 | 12.7mile/h |
| Forward - 4 | 21.6mile/h |
| Reverse - 1 | 4.7mile/h |
| Reverse - 2 | 8.3mile/h |
| Reverse - 3 | 14.4mile/h |
| Transmission Type | Cat-Planetenlastschaltgetriebe |
| Front | Fixed |
|---|---|
| Oscillation Angle | 13° |
| Rear | Trunnion |
| Maximum Flow | 71.3gal/min |
|---|---|
| Relief Valve Setting - Steering | 4351psi |
| Steering Cycle Times - High Idle | 3.4s |
| Steering Cycle Times - Low Idle | 5.6s |
| Steering System - Circuit | Pilot, load sensing |
| Steering System - Pump | Piston, variable displacement |
| Total Steering Angle | 74° |
| Cooling System | 31.7gal (US) |
|---|---|
| Crankcase | 15.9gal (US) |
| Diesel Exhaust Fluid Tank | 8.7gal (US) |
| Differential - Final Drives - Front | 49.1gal (US) |
| Differential - Final Drives - Rear | 49.1gal (US) |
| Hydraulic System - Tank Only | 63.4gal (US) |
| Hydraulic System Factory Fill | 125.5gal (US) |
| Transmission | 31.7gal (US) |
| Dump Angle at Maximum Lift | 39.4° |
|---|---|
| Fork Height at Maximum Lift | 15.3ft |
| Fork Height with Level Arms | 8.1ft |
| Fork Top Clamp Opening | 12.3ft |
| Front Axle Centerline to Fork Tip | 15.6ft |
| Ground to Bumper Clearance | 3.1ft |
| Ground to Center of Front Axle | 3.2ft |
| Ground to Lower Hitch Clearance | 1.9ft |
| Ground to Top of Exhaust Stacks | 13.8ft |
| Ground to Top of Hood | 10.9ft |
| Ground to Top of ROPS | 13.8ft |
| Hinge Pin Height at Maximum Lift | 16.1ft |
| Maximum Overall Length | 41ft |
| Rear Axle - Centerline to Bumper | 10.5ft |
| Wheel Base | 14.9ft |
| Machine Sound Level (ISO 6395) | 111dB(A) |
|---|---|
| Operator Sound Level (ISO 6396) | 71dB(A) |
| Machine Sound Level (ISO 6395) | 109dB(A) |
|---|---|
| Operator Sound Level (ISO 6396) | 70dB(A) |
| Fork End Area | 69ft² |
|---|
| Cylinders, Double Acting - Lift, Bore and Stroke | 235 mm × 976 mm (9.25 in × 38.4 in) |
|---|---|
| Cylinders, Double Acting - Tilt, Bore and Stroke | 292 mm × 671 mm (11.5 in × 26.4 in) |
| Lift/Tilt System | Variable displacement piston |
| Lift/Tilt System - Circuit | EH- Positive Flow Control, Flow Sharing |
| Maximum Flow | 13.7gal/min |
| Maximum Flow at 1,400-1,860 rpm | 153gal/min |
| Pilot System | Variable displacement piston |
| Relief Valve Setting - Lift/Tilt | 4641psi |
| Relief Valve Setting - Main | 580psi |
| Brakes | SAE J1473 OKT90, ISO 3450:1992 |
|---|
