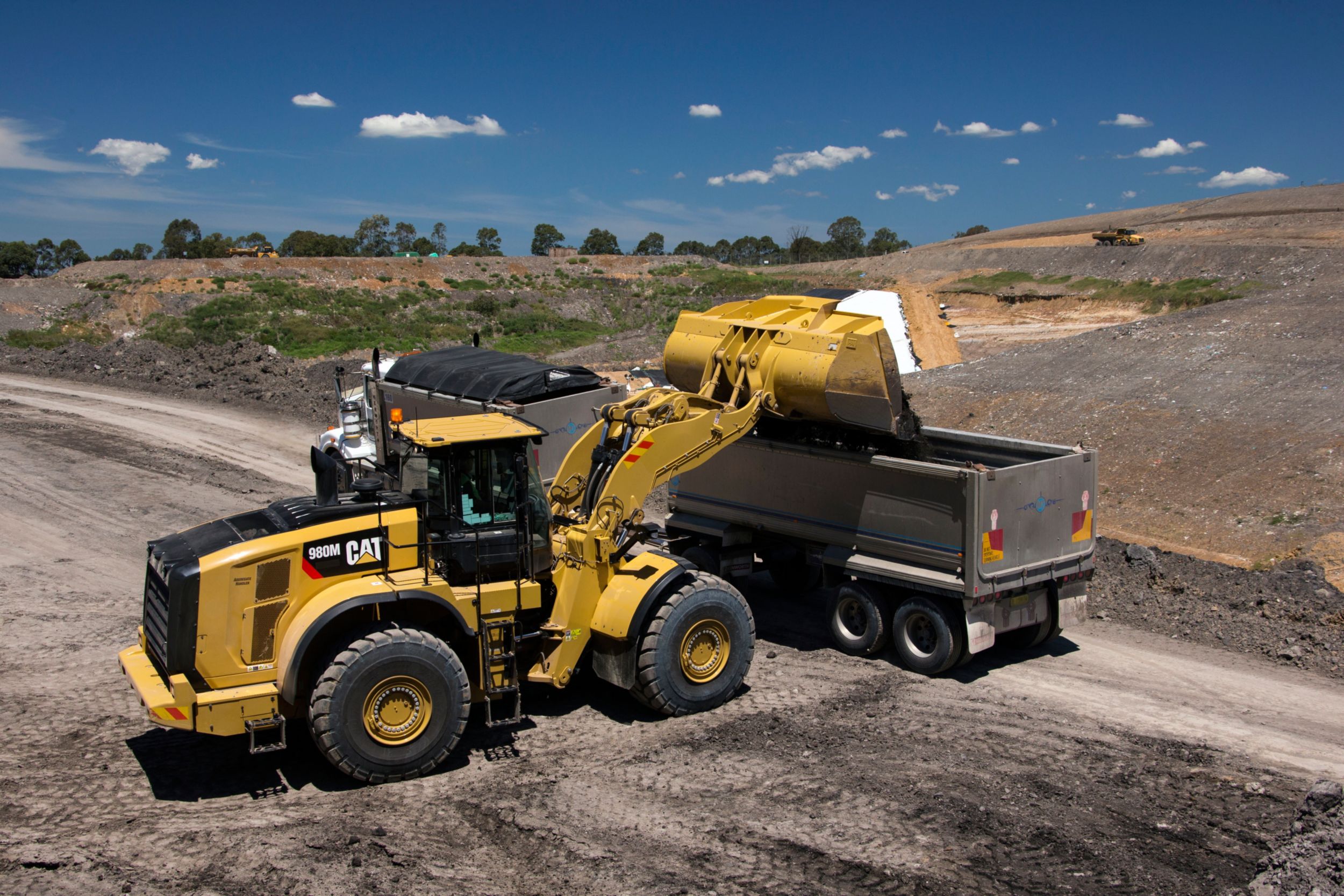

| Displacement | 763in³ |
|---|---|
| Emissions | Tier 4/Stage IV |
| Engine Model | Cat C13 |
| Maximum Net Power - 1,700 rpm - ISO 9249 | 386HP |
| Maximum Net Power - 1,700 rpm - ISO 9249 - Metric | 392HP |
| Maximum Net Power - 1,700 rpm - SAE J1349 | 386HP |
| Maximum Net Power - 1,700 rpm - SAE J1349 - Metric | 392HP |
| Maximum Net Torque - 1,100 rpm | 1515ft·lbf |
| Maximum Power - 1,700 rpm - ISO 14396 | 420HP |
| Maximum Power - 1,700 rpm - ISO 14396 - Metric | 426HP |
| Maximum Power - 1,700 rpm - SAE J1995 | 425HP |
| Maximum Power - 1,700 rpm - SAE J1995 - Metric | 431HP |
| Net Power - ISO 9249 | 386HP |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
| Peak Gross Torque - 1,200 rpm - ISO 14396 | 1609ft·lbf |
| Peak Gross Torque - 1,200 rpm - SAE J1995 | 1627ft·lbf |
| Note | Weight based on a machine configuration with Michelin 29.5R25 XLDD1 L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, open differential axles, secondary steering, sound suppression, and a 5.4 m³ (7 |
|---|---|
| Operating Weight | 66337lb |
| Bucket Capacities | 4.2-12.2 m³ (5.25-16.0 yd³) |
|---|
| Centerline of Rear Axle to Edge of Counterweight | 8.17ft |
|---|---|
| Centerline of Rear Axle to Hitch | 6.25ft |
| Ground Clearance | 1.42ft |
| Height - Top of Exhaust Pipe | 12.33ft |
| Height - Top of Hood | 10.25ft |
| Height - Top of ROPS | 12.58ft |
| Hinge Pin Height at Carry | 2.08ft |
| Hinge Pin Height at Maximum Lift | 14.83ft |
| Lift Arm Clearance at Maximum Lift | 12.42ft |
| Maximum Width over Tires | 10.83ft |
| Note | All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires. |
| Overall Length - Without Bucket | 26.17ft |
| Rack Back - Carry Height | 48 degrees |
| Rack Back - Maximum Lift | 61 degrees |
| Rack Back at Ground | 40 degrees |
| Tread Width | 8ft |
| Wheel Base | 12.5ft |
| Centerline of Rear Axle to Edge of Counterweight | 8.17ft |
|---|---|
| Centerline of Rear Axle to Hitch | 6.25ft |
| Ground Clearance | 1.42ft |
| Height - Top of Exhaust Pipe | 12.33ft |
| Height - Top of Hood | 10.25ft |
| Height - Top of ROPS | 12.58ft |
| Hinge Pin Height at Carry | 2.25ft |
| Hinge Pin Height at Maximum Lift | 15.58ft |
| Lift Arm Clearance at Maximum Lift | 13.08ft |
| Maximum Width over Tires | 10.83ft |
| Note | All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires. |
| Overall Length - Without Bucket | 26.83ft |
| Rack Back - Carry Height | 48 degrees |
| Rack Back - Maximum Lift | 61 degrees |
| Rack Back at Ground | 39 degrees |
| Tread Width | 8ft |
| Wheel Base | 12.5ft |
| Note (1) | *Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
|---|---|
| Note (2) | **For machines in European Union countries and in countries that adopt the EU Directives. |
| Note (3) | ***European Union Directive 2000/14/EC as amended by 2005/88/EC. |
| With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** | 109 LWA*** |
| With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** | 72dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) | 112dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) | 78 dB(A)* |
| With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) | 72dB(A) |
| Forward - 1 | 4.3mT/hr |
|---|---|
| Forward - 2 | 8.3mT/hr |
| Forward - 3 | 14.6mT/hr |
| Forward - 4 | 24.5mT/hr |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 933 mm (37 in) roll radius. |
| Reverse - 1 | 4.8mT/hr |
| Reverse - 2 | 9.4mT/hr |
| Reverse - 3 | 16.7mT/hr |
| Reverse - 4 | 24.5mT/hr |
| Cooling System | 14gal (US) |
|---|---|
| Crankcase | 9.8gal (US) |
| DEF Tank | 5.5gal (US) |
| Differential - Final Drives - Front | 22gal (US) |
| Differential - Final Drives - Rear | 22gal (US) |
| Fuel Tank | 112.5gal (US) |
| Hydraulic Tank | 40gal (US) |
| Transmission | 20.3gal (US) |
| Breakout Force | 50357lbf |
|---|---|
| Note (1) | For a machine configuration as defined under "Weight." |
| Note (2) | Full compliance to ISO 143971:2007 Sections 1 thru 6. |
| Static Tipping Load - Full 40° Turn - No Tire Deflection | 45847lb |
| Static Tipping Load - Full 40° Turn - With Tire Deflection | 43133lb |
| Hydraulic Cycle Time - Total | 10.1s |
|---|---|
| Implement System - Maximum Operating Pressure | 4975psi |
| Implement System - Maximum Pump Output at 2,250 rpm | 119gal/min |
| Emissions | Tier 4/Stage IV |
|---|
| Bucket Range | 4.2-12.2 m³ (5.25-16.0 yd³) |
|---|
