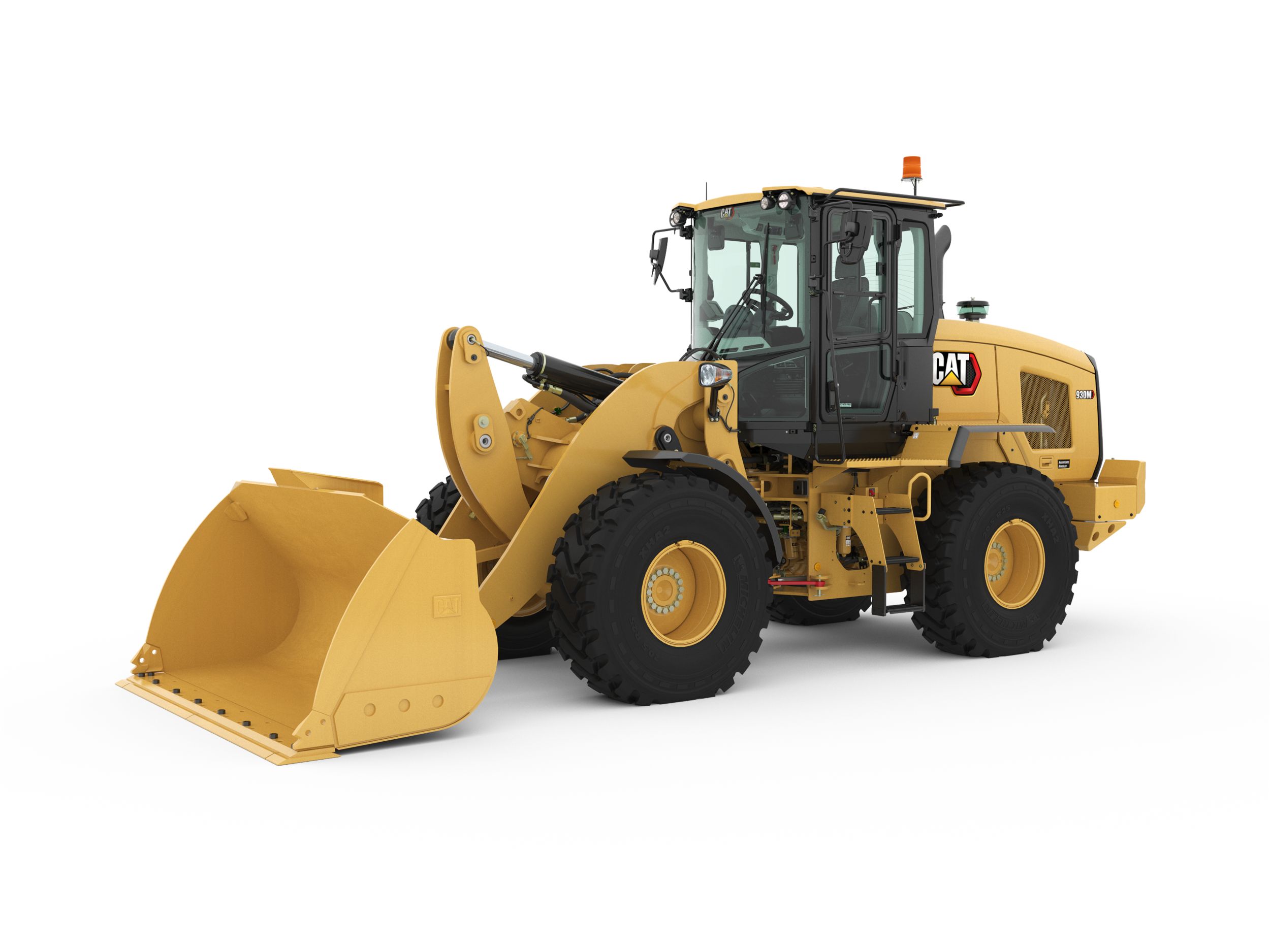

New 930M Aggregate Handler Small Wheel Loader in North Carolina

Back to

The Cat® 930M Aggregate Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. The optimized Z-bar loader linkage combined with long wear life Performance Series buckets delivers improved payloads and bucket longevity. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience the new industry benchmark.

Pricing: From $285,539.13*

Additonal Note:

* Taxes, shipping & handling, surcharges, assembly charges, destination, freight and/or delivery charges are not included. This is not an offer for sale. Displayed pricing is for informational purposes only. The pricing shown above utilizes the Manufacturer's Suggested Retail Price (MSRP) that is published for the machine (without any attachments or protection plans) as described above. The actual prices and terms and conditions of sale for all products are to be solely determined by the selling
Request a quote
Bore 4in
Displacement 427in³
Emissions The Cat C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 4 Final emission standards.
Engine Model Cat® C7.1
Maximum Gross Power 168hp
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4) 168hp
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*) 160hp
Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4) 170hp
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3*) 162hp
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4) 1800r/min
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600r/min
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4) 601ft·lbf
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*) 586ft·lbf
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4) 587ft·lbf
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3*) 572ft·lbf
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4) 588ft·lbf
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*) 573ft·lbf
Maximum Rated Gross Power - ISO 14396 168hp
Maximum Rated Gross Power - ISO 14396 (metric) 170hp
Net Power (Performance Power Mode: Range 1-4) 1800r/min
Net Power (Standard Power Mode: Range 1-3*) 1600r/min
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4) 166hp
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158hp
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 164hp
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156hp
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 163hp
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156hp
Note (1) *Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note (2) Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3) No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Stroke 5in
Note (1) **Aggregate Handler machine equipped with full counterweight and optional guards.
Note (2) ~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
Operating Weight 31848lb
Operating Weight (1) 14 374 kg (31,689 lb)**
Operating Weight (2) 14 446 kg (31,848 lb)~
Bucket Capacities 2.5-5.0 m3 (3.3-6.5 yd3)
Declared Sound Levels Declared Sound Levels
– Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)*
– Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)*
FOPS ISO 3449:2005 LEVEL II
Note (1) * Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.
ROPS ISO 3471:2008
Brakes - Parking Spring applied hydraulically released
Brakes - Service Inboard wet disc
Front Axle Fixed
Front Axle - Traction Aid* Locking differential (standard)
Note (1) Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note (2) Offset rims available to meet European roading requirements.
Note (3) *Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.
Rear Axle Oscillating
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65 ± 10.5 degrees
Rear Axle - Traction Aid - Optional Limited slip differential
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height) 1.5/1.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level) 2.7/2.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift) 5.1/5.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time 9.3/10.1 seconds
Lift Cylinder, Double Acting - Bore Diameter 4.7in
Lift Cylinder, Double Acting - Rod Diameter 2.6in
Lift Cylinder, Double Acting - Stroke 28.7in
Maximum Flow - Implement Pump 50gal/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow* 50gal/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow* 42gal/min
Maximum Working Pressure - Implement Pump 3771psi
Note (1) Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note (2) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Note (3) * 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Relief Pressure - Tilt Cylinder 4061psi
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure 3771psi
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure 4061psi
Tilt Cylinder, Double Acting - Bore Diameter 5.9in
Tilt Cylinder, Double Acting - Rod Diameter 3.5in
Tilt Cylinder, Double Acting - Stroke 21.9in
Forward and Reverse - Range 1* 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2 8mile/h
Forward and Reverse - Range 3 17mile/h
Forward and Reverse - Range 4 25mile/h
Note * Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
Cooling System 7.9gal (US)
Diesel Exhaust Fluid (DEF) Tank 5gal (US)
Engine Crankcase 5.3gal (US)
Front Axles 6.9gal (US)
Fuel Tank 51.5Gal
Hydraulic System - Including Tank 43.6gal (US)
Hydraulic Tank 23.8gal (US)
Rear Axles 6.6gal (US)
Transmission - Gear Box 2.2gal (US)
Maximum Flow - Steering Pump 34gal/min
Maximum Working Pressure - Steering Pump 3500psi
Note (1) Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note (2) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed 2.4s
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited 2.8s
Steering Cylinder, Double Acting - Bore Diameter 2.8in
Steering Cylinder, Double Acting - Rod Diameter 1.6in
Steering Cylinder, Double Acting - Stroke 17.2in
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430. The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
Full Turn Tip Load (1) 9203 kg (20,289 lb)**
Full Turn Tip Load (2) 9302 kg (20,507 lb)~
Note (1) **Aggregate Handler machine equipped with full counterweight and optional guards.
Note (2) ~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
Recyclability 94%

Standard Equipment:

  • Power Train
    • Axle Duo-Cone seal guards
    • Axle seal guards
    • Auto idle shut down feature
    • Auto idle shut down feature
    • Cat C7.1 engine
      – Power modes (Standard and Performance)
      – Power by range (High Power in Range 4)
      – Turbocharged and aftercooled
      – Diesel particulate filter (Fit for Life)
    • Cat® C7.1 engine: – Power Modes (Standard and Performance) – Power by Range (High Power in Range 4) – Turbocharged and aftercooled – Filtered crankcase breather – Diesel particulate filter (Fit for Life)
    • Coded start (requires secondary display)
    • Coolant protection to –34° C (–29° F)
    • Differential lock in front axle
    • Differential lock in front axle
    • Enclosed wet disc full hydraulic brakes
    • Dry type air cleaner
    • Hydraulically driven demand cooling fan
    • Enclosed wet disc full hydraulic brakes
    • Hydrostatic transmission with electronic control
      – Operator modes (Default, TC, Hystat, and Ice)
      – Directional Shift Aggressiveness (fast, medium, slow)
      – Rimpull control, adjust wheel torque
      – Creeper control, adjust ground speed
    • Fuel priming pump, automatic
    • Parking brake, electric
    • Fuel water separator
    • Single plane cooling package wide six fins per inch density
    • Hydraulically driven demand cooling fan
    • Oil sampling ports
    • Intelligent hydrostatic transmission: – Power train modes – Directional Shift Aggressiveness – Rimpull control, adjust wheel torque – Creeper control, adjust ground speed
    • Throttle lock and max speed limiter
    • Lubed for life driveshafts
    • Parking brake, electric
    • Wide spaced 6 fins per inch cooling package
    • S·O·SSM sampling ports
    • Throttle lock and maximum speed limiter
  • Hydraulics
    • Automatic lift lower and tilt kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow)
    • Hydraulic response setting (fast, medium, slow)
    • Automatic lift, lower and tilt kickouts
    • Load sensing hydraulics and steering
    • Bucket and Fork Modes, adjustable in-cab
    • Seat-mounted hydraulic joystick controls
    • Cylinder damping at kickout and end stops
    • Fine Mode control in Fork Mode
    • Hydraulic Response setting
    • Load sensing hydraulics and steering
    • Seat-mounted hydraulic joystick controls
  • Electrical
    • Alternator, 115 amp, heavy duty
    • Batteries, 1,000 CCA (2) 24V system, disconnect switch
    • Back-up alarm
    • Emergency shutdown switch
    • Halogen work and roading lights, LED rear tail lights
    • Alternator, 115-amp, heavy duty
    • Product Link PRO with three year subscription
    • 12V power supply in cab (2)
    • Remote jump start post
    • Batteries, 1,000 CCA (2) 24 volt system
    • Resettable main and critical function breakers
    • Back-up alarm
    • Emergency shutdown switch
    • Heavy duty gear reduction starter
    • Product Link PRO with subscription
    • Remote jump start post
    • Resettable main and critical function breakers
  • Operator Environment
    • 75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • Cab, pressurized
    • Camera, rearview
    • External heated mirrors with lower parabolic
    • Ground level cab door release
    • 75 mm (3 in) retractable seat belt, with audible alarm and indicator
    • Hydraulic control lockout
    • Automatic temperature control
    • Mirror, single
    • Cab, enclosed and pressurized
    • Lunch box storage
    • Cup holders
    • Radio ready speakers
    • External heated mirrors with lower parabolic
    • Rear window defrost, electric
    • Ground level cab door release
    • Column mounted multi function control – lights, wipers, turn signal
    • Gauges: – Digital hour meter, odometer, tachometer, ground speed and direction indicator – Engine coolant temperature gauge – Fuel and Diesel Exhaust Fluid level – Hydraulic oil temperature gauge
    • Tilt and telescopic steering wheel
    • Hydraulic control lockout
    • Tinted front glass
    • Interior cab lighting, door and dome
    • Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
    • Interior rearview mirrors (2)
    • Suspension seat, fabric
    • Lunch box storage
    • Operator warning system indicators
    • Radio ready speakers
    • Rear window defrost, electric
    • Seat-mounted controls, adjustable
    • Sliding glass on the side windows
    • Column mounted multi function control – lights, wipers, turn signal
    • Suspension seat, fabric
    • Tilt and telescopic steering wheel
    • Wet arm wiper/washer, front and rear
  • Other Standard Equipment
    • Large-access enclosure doors with adjustable close/open force
    • Cat optimized Z-bar linkage with parallel lift
    • Recovery hitch, with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures
    • Large-access enclosure doors
    • Parallel lift loader linkage
    • Recovery hitch with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures

Optional Equipment:

  • Cab, Deluxe (standard In Europe):
    • Automatic blower control
    • Electrically adjustable heated mirrors (2)
    • LED interior lighting
    • Secondary display to adjust settings
  • Cold Start Package:
    • Ether starting aid, block heater and additional batteries 1,000 CCA (4 in total)
  • Optional Equipment
    • Autolube, integrated in secondary display
    • Auxiliary flow, third and fourth function
    • Differential, limited slip, rear
    • Beacon light, strobe
    • Cab, deluxe (standard in Europe)
      – Camera, rearview integrated into advanced display
      – Electrically adjustable external heated mirrors (2)
      – Secondary display to enable features and adjust parameters
      – LED interior lighting
      – Sunscreen, front and rear
      – Touchscreen secondary display
      – Ride control adjustable speed activation
      – Preventative maintenance reminders
      – Integrated help function (26 languages)
    • Camera, roof mounted, front view with separate display
    • Cold start package
      – Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
    • Counterweight, additional options
    • Coupler, (Fusion and ISO 23727)
    • Debris packages (low, medium, high)
    • Fenders (extended cover and full coverage)
    • Guarding packages
    • Linkage, high lift
    • Lights, auxiliary, halogen or LED with engine and DEF compartment lights
    • Payload Technology
      – Cat Production Measurement (CPM)
      – CPM Printer
    • Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
    • Radio packages
    • Rear Object Detection
    • Ride Control System, adjustable through secondary display
    • Seats
      – Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
      – Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
    • Steering
      – Dual mode and secondary
    • Tire Pressure Monitoring (TPM)
  • Guards
    • Power train, (lower, side, driveshaft and crankcase)
    • Windshield and lights
    • Cylinders, tilt and steering
  • Radio Packages:
    • Radio ready with Bluetooth
    • Radio, AM/FM with Bluetooth and clock
    • Radio, AM/FM with CD player deluxe, weatherband, Bluetooth and clock
  • Seats:
    • Deluxe seat – fully adjustable fabric air suspension seat with high seat backrest
    • Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Heated and cooled bottom cushion and backrest.
  • Steering:
    • Dual mode and Secondary
  • Tires:
    • Bias ply, 17.5, 20.5-25
    • Radial, 17.5, 20.5, 23.5, 550/65, 600/65, 650/65 R25
Renee HerndonRenee Herndon
21:55 29 Feb 24
Dalton was very helpful, The road construction, however, was not! 😂I would rather have to sand paper an alligators @$$ in a phone booth that to get in that mess again.
David LawrenceDavid Lawrence
13:04 22 Feb 24
Brandon PierceBrandon Pierce
22:00 18 Feb 24
Darin NoeDarin Noe
01:17 16 Feb 24
Jose SotoJose Soto
15:26 23 Sep 23
Hunter ElliottHunter Elliott
16:17 07 Sep 23
Rick Kelly-CrapseRick Kelly-Crapse
21:06 25 Aug 23
They had all my parts for my 3208 Cat.Friendly folks at parts counter.
js_loader
