| Bore | 4.13in |
|---|---|
| Displacement | 269in³ |
| Engine Model | Cat® C4.4 |
| Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 | 104HP |
| Net Power - 2,200 rpm - SAE J1349 | 104HP |
| Note | Engine meets Tier 4 Final/Stage IV emission standards. |
| Power - Net | 104HP |
| Stroke | 5in |
| Note | Specifications shown are for machine equipped with mulcher, cab ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank. |
|---|---|
| Operating Weight - LGP | 24698lb |
| Operating Weight - XL | 23746lb |
| Drive Pumps | 1 |
|---|---|
| Maximum Travel Speed - Forward | 5.6mile/h |
| Maximum Travel Speed - Reverse | 6.2mile/h |
| Relief Valve Settings | 7033psi |
| Track Motors | 2 |
| Pump Output | 17.7gal/min |
|---|---|
| Relief Valve Settings | 2988psi |
| Cooling System | 5.92gal (US) |
|---|---|
| Crankcase - With Filter | 2.91gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 4.9gal (US) |
| Final Drive - Each - LGP | 2.6gal (US) |
| Final Drive - Each - XL | 2.6gal (US) |
| Fuel Tank | 51.5gal (US) |
| Transmission - Hydraulic Tank | 15.7gal (US) |
| Ground Contact Area - LGP | 4425in² |
|---|---|
| Ground Contact Area - XL | 2829in² |
| Ground Pressure - LGP | 4.2psi |
| Ground Pressure - XL | 6.2psi |
| Length - Track on Ground - LGP | 89in |
| Length - Track on Ground - XL | 89in |
| Number of Rollers - Each Side | 6 |
| Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage | 43 |
| Shoe Width - LGP | 25in |
| Shoe Width - XL | 16in |
| Track Gauge - LGP | 68in |
| Track Gauge - XL | 59in |
| Control | Hydraulic |
|---|---|
| Drum Capacity - Optional Cable | 256ft |
| Drum Capacity - Recommended Cable | 279ft |
| Maximum Line Pull - Bare Drum | 32150lb |
| Maximum Line Pull - Full Drum | 20000lb |
| Maximum Line Speed - Bare Drum | 50ft/min |
| Maximum Line Speed - Full Drum | 79ft/min |
| Rope Diameter - Optional | 0.63in |
| Rope Diameter - Recommended | 0.5in |
| Speed | Variable |
| Weight | 1684lb |
| Winch Drive | Hydraulic |
| Ground Clearance - LGP | 13in |
|---|---|
| Ground Clearance - XL | 13in |
| Length - Basic Tractor - Without Mulcher - LGP | 128.9in |
| Length - Basic Tractor - Without Mulcher - XL | 128.9in |
| Overall Length - With Blade - LGP | 167.6in |
| Overall Length - With Blade - XL | 168in |
| Track Gauge - LGP | 67.9in |
| Track Gauge - XL | 58.9in |
| Tractor Height - LGP | 108.8in |
| Tractor Height - XL | 112in |
| Width - Tractor - Standard Shoes - No Mulcher - LGP | 92.9in |
| Width - Tractor - Standard Shoes - No Mulcher - XL | 74.8in |

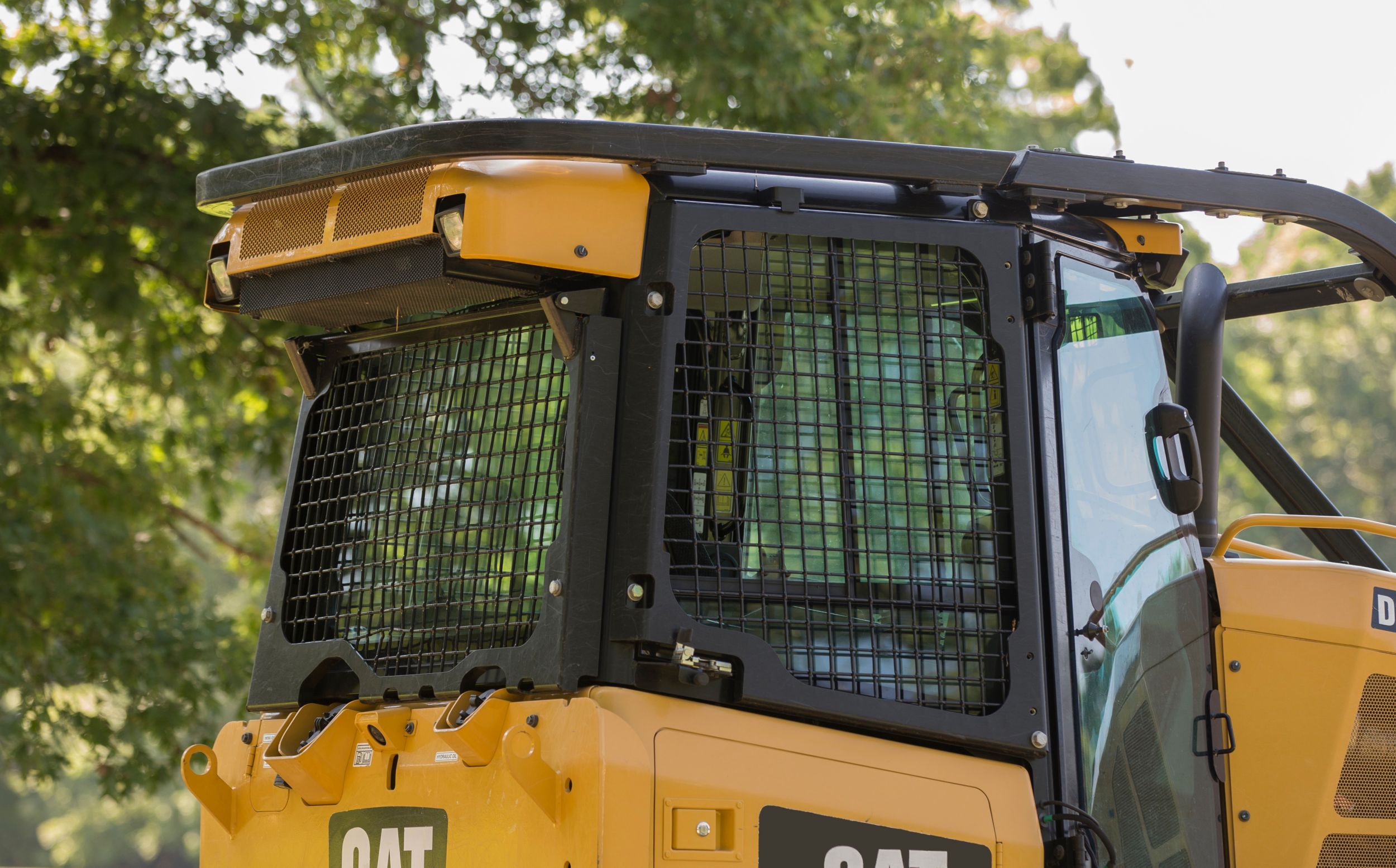

| FOPS | ISO 3449:2005 Level II |
|---|---|
| ROPS | ISO 3471:2008 |
| Sound Levels - ISO 6396:2008 | 79dB(A) |
| Sound Levels - SAE J1166 FEB2008 | 79dB(A) |

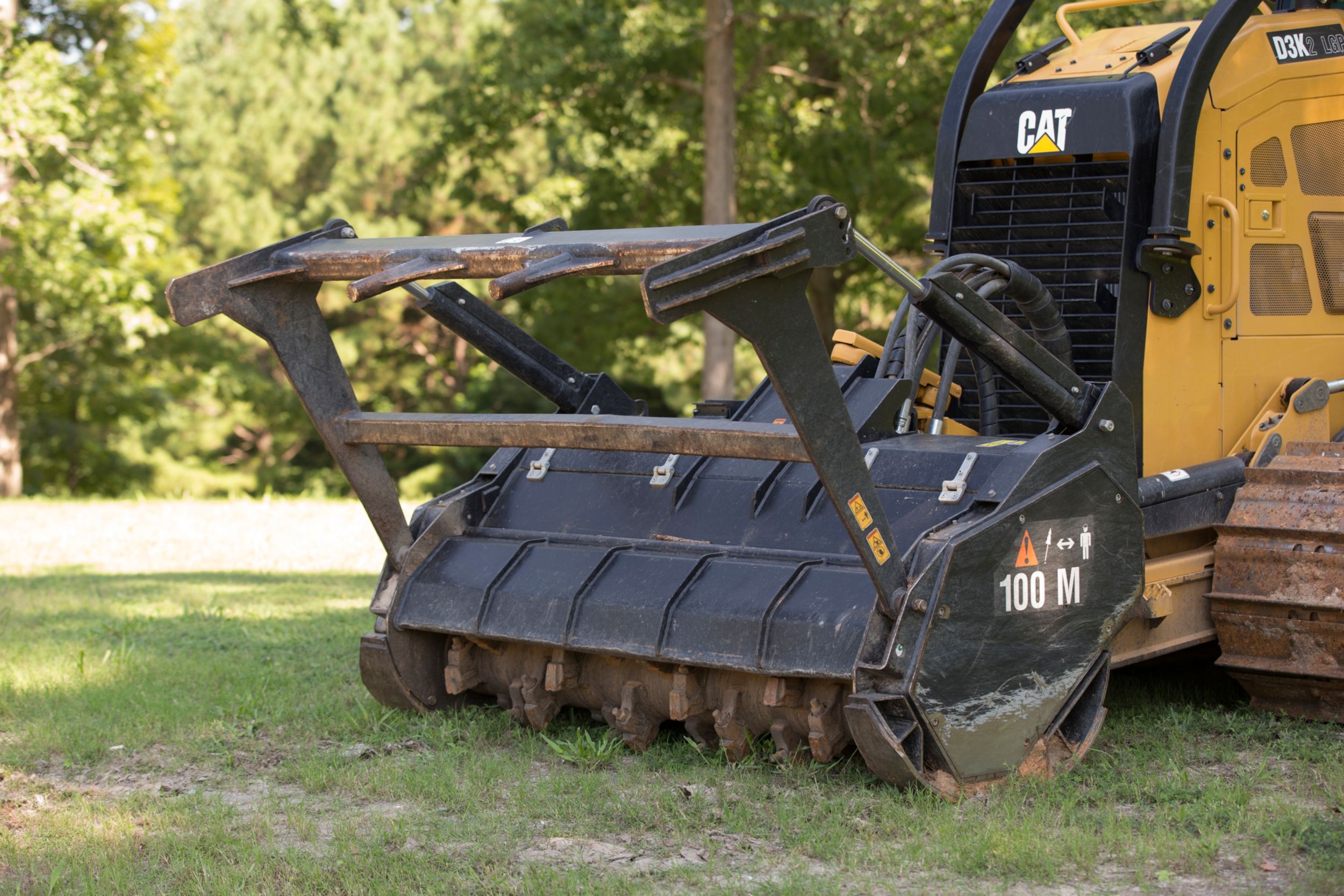

| Drive Method | Polychain belt |
|---|---|
| Drum Speed Range | 2150-2450 rpm |
| Fixed Teeth per Drum | 38 |
| Length | 53in |
| Lift Height | 31in |
| Maximum Angle - Either Side | 25° |
| Maximum Tilt | 14.5in |
| Motor | Closed loop hydrostatic |
| Optimum Hydraulic Flow | 30gal/min |
| Optimum Hydraulic Pressure | 5900psi |
| Overall Height | 58in |
| Overall Width | 84in |
| Weight | 3197lb |
| Working Width | 72in |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
|---|
