Emergency Transfer Load manager

Back to

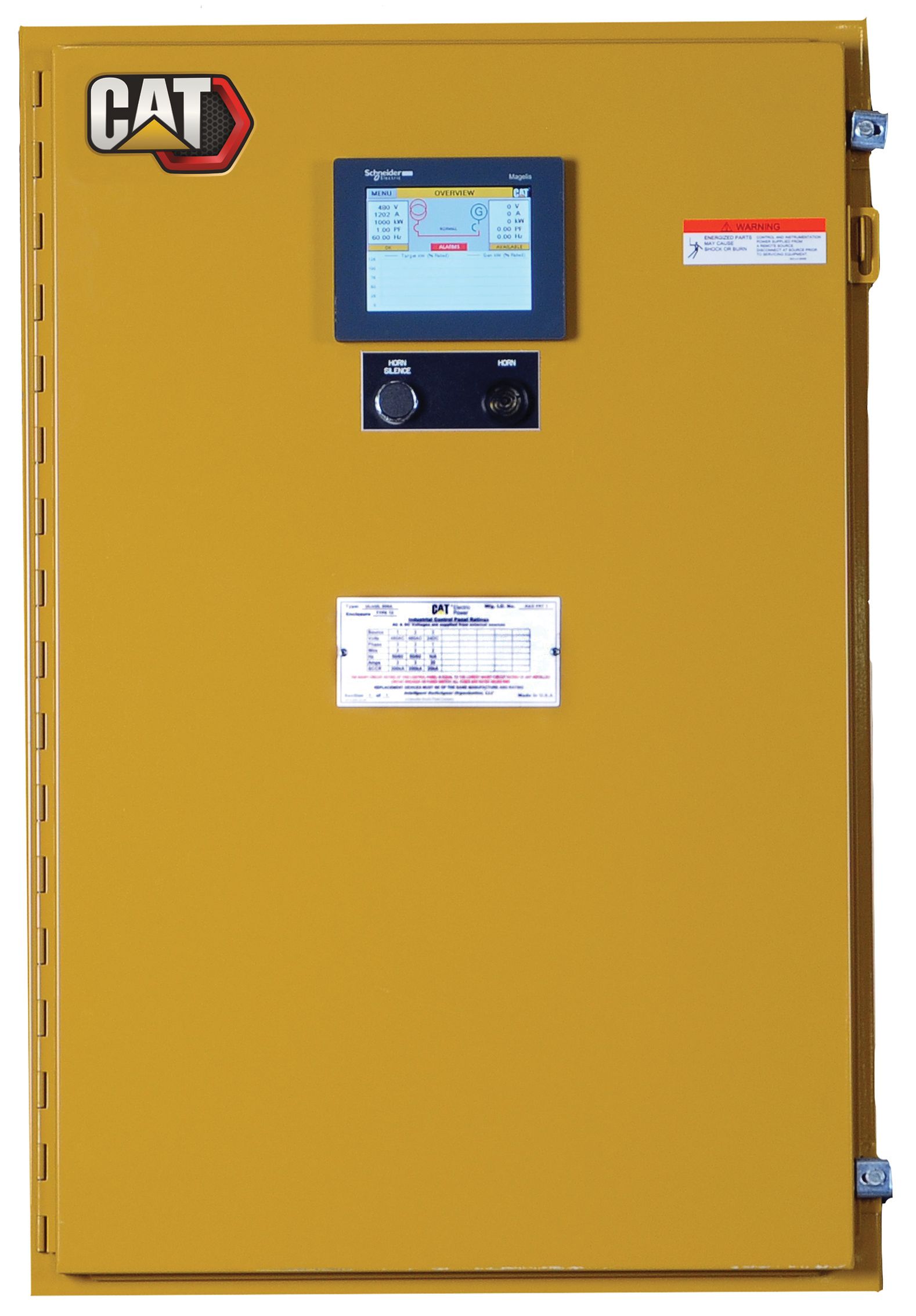

The EXL is a wall mounted system that monitors and controls a single engine generator for operation in parallel with a single utility source. The EXL will support Emergency Standby as well as Utility Paralleling applications.

Pricing: Contact for Pricing

Application LV and MV (208V-32kV)
Configuration Wall mounted paralleling control system that monitors and controls a single generator and a single utility.
Modes of Operation Utility Import, Export, and base load operations, Peak shaving, and Emergency Standby. Closed Transition to/from Generator Power
ANSI Protective Devices 15/25. 27/59, 81 O/U, 32, 40, 50, 51
ANSI Protective Devices 15/25. 27/59, 81 O/U, 32, 40, 47, 51, 86
Certifications IBC, CBC, UBC, & OSHPD Certified
Control Panel Enclosure NEMA 1 or NEMA 3R Freestanding Construction
Low Voltage Standards NEMA SG-5, CSA,ANSI C37.51, ANSI C37.20.1, UL1558 or UL 891, NFPA 110, NFPA 99 and NFPA 70
Medium Voltage Standards NEMA SG-5, ANSI / IEEE C37.20.2, CSA-C22.2 No. 31-M89, EEMAC G8-3.2, NFPA 70, NFPA 99 and NFPA 1110
Operating Temperature 0-50°C
Storage Temperature -20°C to +60°C

Standard Equipment:

  • Instant Auto Selector Switch
    • Allows user to return sysem to automatic in the event of a touchscreen failure
  • Spare Inputs And Outputs
    • 3 digital inputs and 6 relay outputs programmable from the HMI

Optional Equipment:

  • Supplemental Hardware 25 Device
    • Provides additional discrete synchronization protection
