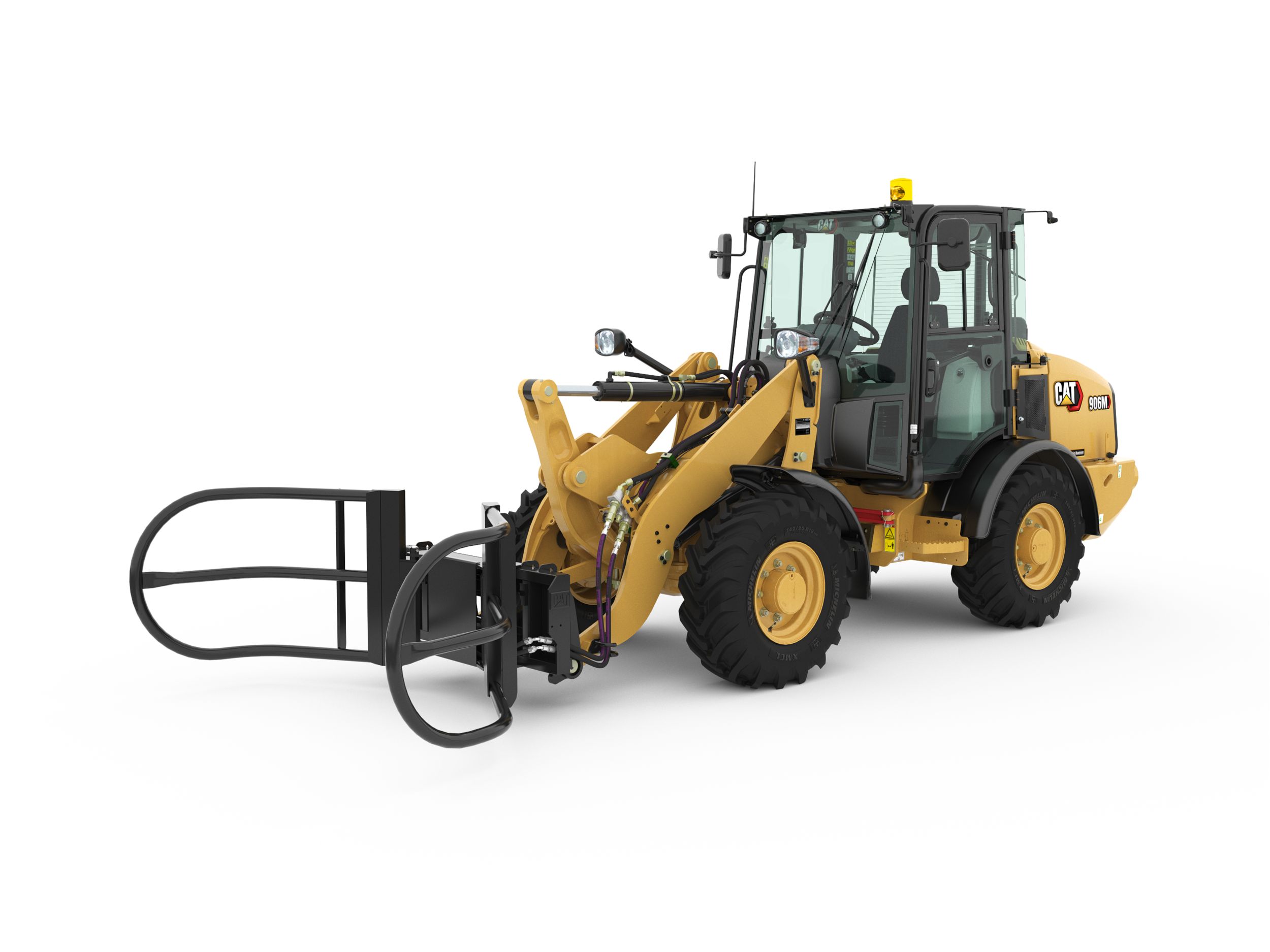

906M Ag Handler – Agricultural Arrangement
Engine
- Maximum Gross Power
-
73.2HP
- Engine Model
-
CatĀ® C3.3B DIT*
- Maximum Gross Power - ISO 14396
-
73.2HP
- Maximum Gross Power - ISO 14396 (metric)
-
74.2mhp
- Rated Net Power - 2,400 rpm - SAE J1349
-
71.9HP
- Rated Net Power - 2,400 rpm - ISO 9249
-
72.9HP
- Emissions
-
*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.
Weights
- Operating Weight
-
12758lb
- Note
-
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).
Buckets
- Bucket Capacities
-
0.75-1.5 m³ (1.0-2.0 yd³)
- Bucket Capacities - ISO Coupler
-
0.75-1.5 m³
- Bucket Capacities - SSL Style Coupler
-
1.0-2.0 yd³
Travel Speeds
- Speed 1
-
6.2mile/h
- Speed 2
-
12.4mile/h
- High Speed
-
21.7mile/h
Service Refill Capacities
- Cooling System
-
4.5gal (US)
- Fuel Tank
-
13.7gal (US)
- Hydraulic System
-
18.5gal (US)
- Engine Oil
-
3gal (US)
Hydraulic System
- Main Relief - 3rd Aux Flow
-
3400psi
- Main Relief - 3rd Aux Flow: Standard
-
20gal/min
- Main Relief - 3rd Aux Flow: High Flow
-
31gal/min
- Hydraulic Cycle Time - Lift
-
5.2 seconds
- Hydraulic Cycle Time - Lower
-
3.2 seconds
- Hydraulic Cycle Time - Dump
-
1.3 seconds
- Hydraulic Cycle Time - Rackback
-
2.1 seconds
Dimensions - With ISO Coupler - Approximate
- Height - Ground to Cab
-
8ft
- Height - Ground Clearance
-
11in
- Length - Wheel Base
-
7.08ft
- Length - Overall with Bucket
-
17.67ft
- Reach - Bucket at 45°
-
2.33ft
- Dig Depth
-
4.2in
- Clearance - Bucket at 45°
-
8.08ft
- Clearance - Level Bucket
-
9.83ft
- Height - Bucket Pin
-
10.5ft
- Departure Angle
-
33°
- Length - Overall with Forks
-
19.42ft
- Reach - Ground
-
2.42ft
- Reach - Level Arm
-
4ft
- Fork Dig Depth
-
3.1in
- Clearance - Level Arm
-
4.42ft
- Clearance - Full Lift
-
9.92ft
- Fork Reach at Full Lift
-
1.42ft
- Turning Radius - Over Bucket
-
14.42ft
- Turning Radius - Inside Tire
-
6.92ft
- Width - Bucket
-
6.17ft
- Width - Tread Center
-
4.58ft
- Width - Over Tires
-
6ft
- Articulation Angle
-
39°
- Dump Angle at Full Lift
-
49°
- Note
-
Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.
Dimensions - With SSL Coupler - Approximate
- Height - Ground to Cab
-
8ft
- Height - Ground Clearance
-
12.4in
- Length - Wheel Base
-
7.08ft
- Length - Overall with Bucket
-
18.25ft
- Reach - Bucket at 45°
-
2.67ft
- Dig Depth
-
4.6in
- Clearance - Bucket at 45°
-
7.58ft
- Clearance - Level Bucket
-
9.83ft
- Height - Bucket Pin
-
10.5ft
- Departure Angle
-
33°
- Length - Overall with Forks
-
19.42ft
- Reach - Ground
-
2.42ft
- Reach - Level Arm
-
4.17ft
- Fork Dig Depth
-
0.3in
- Clearance - Level Arm
-
4.67ft
- Clearance - Full Lift
-
10.17ft
- Fork Reach at Full Lift
-
1.67ft
- Turning Radius - Over Bucket
-
14.58ft
- Turning Radius - Inside Tire
-
6.83ft
- Width - Bucket
-
6.17ft
- Width - Tread Center
-
4.58ft
- Width - Over Tires
-
6ft
- Articulation Angle
-
39°
- Dump Angle at Full Lift
-
47°
- Note
-
Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.
Operating Specifications - ISO Coupler
- Tire Size
-
340/80 R18
- Operating Weight
-
12656lb
- Rated Bucket Capacity
-
1.2yd³
- Breakout Force - Bucket
-
11044lbf
- Rated Operating Load at Full Turn - Bucket
-
3884lb
- Straight Tipping Load - Bucket
-
9674lb
- Full Turn Static Tipping Load - Bucket
-
7769lb
- Rack Back - Transport Position
-
51°
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
-
5082lb
- Note
-
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).
Operating Specifications - SSL Coupler
- Tire Size
-
340/80 R18
- Operating Weight
-
13199lb
- Rated Bucket Capacity
-
1.18yd³
- Breakout Force - Bucket
-
9004lbf
- Rated Operating Load at Full Turn - Bucket
-
3612lb
- Straight Tipping Load - Bucket
-
9246lb
- Full Turn Static Tipping Load - Bucket
-
7676lb
- Rack Back - Transport Position
-
51°
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
-
4835lb
- Note
-
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).
Maximum Material Densities - General Purpose Bucket
- Rated Capacity
-
1.2yd³
- Dump Height
-
97in
- Maximum Material Density
-
3031lb/yd³
- Bucket Width
-
74in
- Note
-
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Maximum Material Densities - Multi Purpose Bucket
- Rated Capacity
-
1yd³
- Dump Height
-
85in
- Maximum Material Density
-
3483lb/yd³
- Bucket Width
-
74in
- Note
-
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Maximum Material Densities - Light Material Bucket
- Rated Capacity
-
1.6yd³
- Dump Height
-
85in
- Maximum Material Density
-
2323lb/yd³
- Bucket Width
-
82in
- Note
-
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Standard Equipment:
-
- Loader
-
- Return to dig work tool positioner
- Adjustable implement modulation
-
- Transmission/hydraulics
-
- Adjustable speed control (creeper control)
- Rimpull control
- Electronic throttle lock
- Adjustable Hystat response settings
- Ride control
- 18° frame oscillation, 78° articulationĀ
- Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
- Transmission inching function
- Hydrostatic drive
- Work tool quick coupler
- Proportional auxiliary hydraulic circuit
- Loader arm float function
- Connect under pressure hydraulic quickĀ connector
- Parallel lift Z-bar loader
- Demand based cooling fan
-
- Engine
-
- Precleaner for engine air filter
- Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine
- Two stage air cleaner with visual indicator
- Cat extended life coolant
- Lockable engine compartments
- Easy quick release fuel filter/water separator
- Engine oil drain valve (non spill eco drain)
- Closed circuit breather
- Eco Mode
-
- Electrical
-
- Magnetic rotating beacon
- Work tool wiring harness
- Working lights, two front and two rearĀ
- Cab mounted fuse panelĀ
- Battery disconnect switch
- Heavy duty battery, 12V
- Engine cold starter aid
- Alternator 90 amp
- Service point connector for electronic diagnostics (Electronic Technician™)
- Reverse alarm
-
- General
-
- E-coat paint primer
- Pressure test points
- Recovery hitch and pin
- Scheduled Oil Sampling SĀ·OĀ·SSM ports
-
- Operator Environment
-
- Adjustable steering column
- Air conditioning
- Heater with window, side and feet vents
- Heated rear window
- Radio/CD/MP3/WMA/AUX
- Two doors with sliding window
- Wiper/washer, front and rear
- Cabin light
- Pressurized cab
- Cup holder
- Sun visor
- ROPS and FOPS certified canopy/cab
- Adjustable arm rest
- Retractable seat belt
- Auxiliary power sockets
- Coat hook
- On board digital display cluster
- Sound suppression
- Multifunction joystick with direction control
- Two external knock back mirrors
- Warning indicators for major systems
- Easy clean cab floor
- Lockable storage box
- Adjustable internal mirror
- Operator station on isolation mounts
- Digital service hour meter
- Gauges: fuel hydraulic temp, coolant temp, speedometer
- Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
- Suspended brake/accelerator pedals
- Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat
Optional Equipment:
-
- Transmission/hydraulics
-
- 100% differential lock on both axles, selectable on the move
-
- Loader
-
- High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
- Load check valves
-
- Engine
-
-
- Electrical
-
- Machine Security System (MSS)
-
- General
-
- Custom color
- Tire options
-
- Fluids
-
- Cat extended life coolant (ā50° C/ā58° F)
-
- Operator Environment
-
-
- Work Tools
-
- For all work tools and standard/high flow options (consult your Cat dealer)
