| Ability of Regenerative Braking | Yes |
|---|---|
| Cooling Method | Liquid |
| Efficiency | 95% |
| Motor Type | Switched Reluctance |
| Rated Power - Nominal | 295hp |
| Rated Power - Peak | 335hp |
| Rated Torque (peak, nominal = @ 12 km/h [7.5 mph] and nominal power) | 3200 N·m/660 N·m (2360 lbf-ft/443 lbf-ft) |
| Service Interval | 12,000-13,000 hours |
| Breakout Force - Lift and Tilt | 53330lb |
|---|---|
| Bucket Capacities | 5.7-7.5 m³ (7.5-9.8 yd³) |
| Nominal Payload Capacity | 33069lb |
| Operating Mass | 107460lb |
| Ride Control | Yes |
| Shipping Weight | 114460lb |
| Static Tipping Load - Full Turn - Lift Arms Horizontal | 89600lb |
| Static Tipping Load - Straight Ahead - Lift Arms Horizontal | 108500lb |
| Lift Cylinder - Bore | 7in |
|---|---|
| Lift Cylinder - Stroke | 33in |
| Lift/Tilt System - Circuit | Electro – Hydraulic, Positive Flow Control, Flow Sharing |
| Lift/Tilt System - Pump | Variable Flow Piston/Hydraulic Load Sense |
| Maximum Flow | 78.5gal/min |
| Relief Valve Setting - Main | 4932psi |
| Tilt Cylinder - Bore | 8in |
| Tilt Cylinder - Stroke | 22in |
| Dump | 3.3s |
|---|---|
| Lower, Empty, Float Down | 2.9s |
| Raise | 6.8s |
| Total Cycle Time | 13.2s |
| Cooling Method | Liquid |
|---|---|
| Efficiency | 96% |
| Motor Type | Switched Reluctance |
| Rated Power (peak, nominal) | 303hp |
| Rated Torque (peak, nominal = 1,600 equivalent rpm) | 600 N·m/531 N·m (443 lbf-ft/392 lbf-ft) |
| Service Interval | 12,000-13,000 hours |
| Component Ratings | IP67, IP69K |
|---|---|
| Cooling Method | Liquid (coolant) |
| Inverter Rating | 350A (nominal DC), 715VDC |
| Service Interval | 12,000-13,000 hours |
| 0% Grade - Loaded | 11.2mile/h |
|---|---|
| 0% Grade - Unloaded | 11.2mile/h |
| 10% Grade - Loaded | 5.3mile/h |
| 10% Grade - Unloaded | 6.9mile/h |
| 15% Grade - Loaded | 3.8mile/h |
| 15% Grade - Unloaded | 4.9mile/h |
| 20% Grade - Loaded | 3mile/h |
| 20% Grade - Unloaded | 3.9mile/h |
| 5% Grade - Loaded | 9.2mile/h |
| 5% Grade - Unloaded | 11.2mile/h |
| Battery Chemistry | Li-lon |
|---|---|
| Battery Cooling Method | Chilled Liquid (Extended Life Coolant) |
| Battery Monitoring | With integrated Caterpillar controls systems |
| Charging Current, Voltage | 1160A (output), 820VDC |
| Charging Method | Ultra Fast Charge Onboard |
| Charging Rate | Up to 4C (matched with MEC500 chargers) |

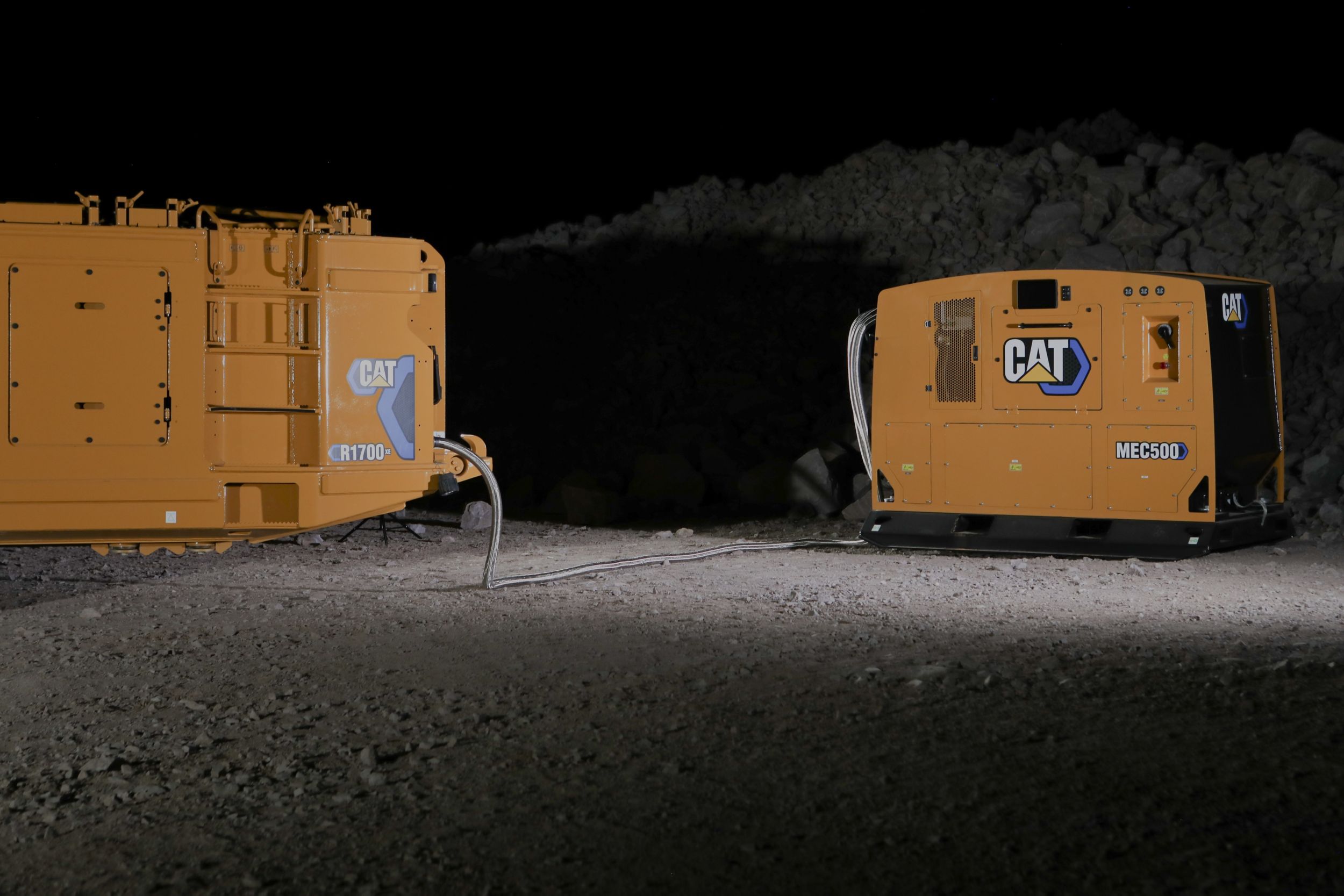

| Maximum Charging Rate | 840 kW (two MEC500 chargers) |
| Minimum Charging Rate | 500 kW |
| On Board Fast Charging Charge time (0-100%) | Less than 20 minutes (two MEC500 in parallel); Less than 30 minutes (one MEC500) |
| Operating Temperature Limits (ambient) | 50° C/–20° C (122° F/-4° F) |
| Pack Energy Capacity - Total | 213 kWh |
| Pack Voltage - Nominal | 715 V |
