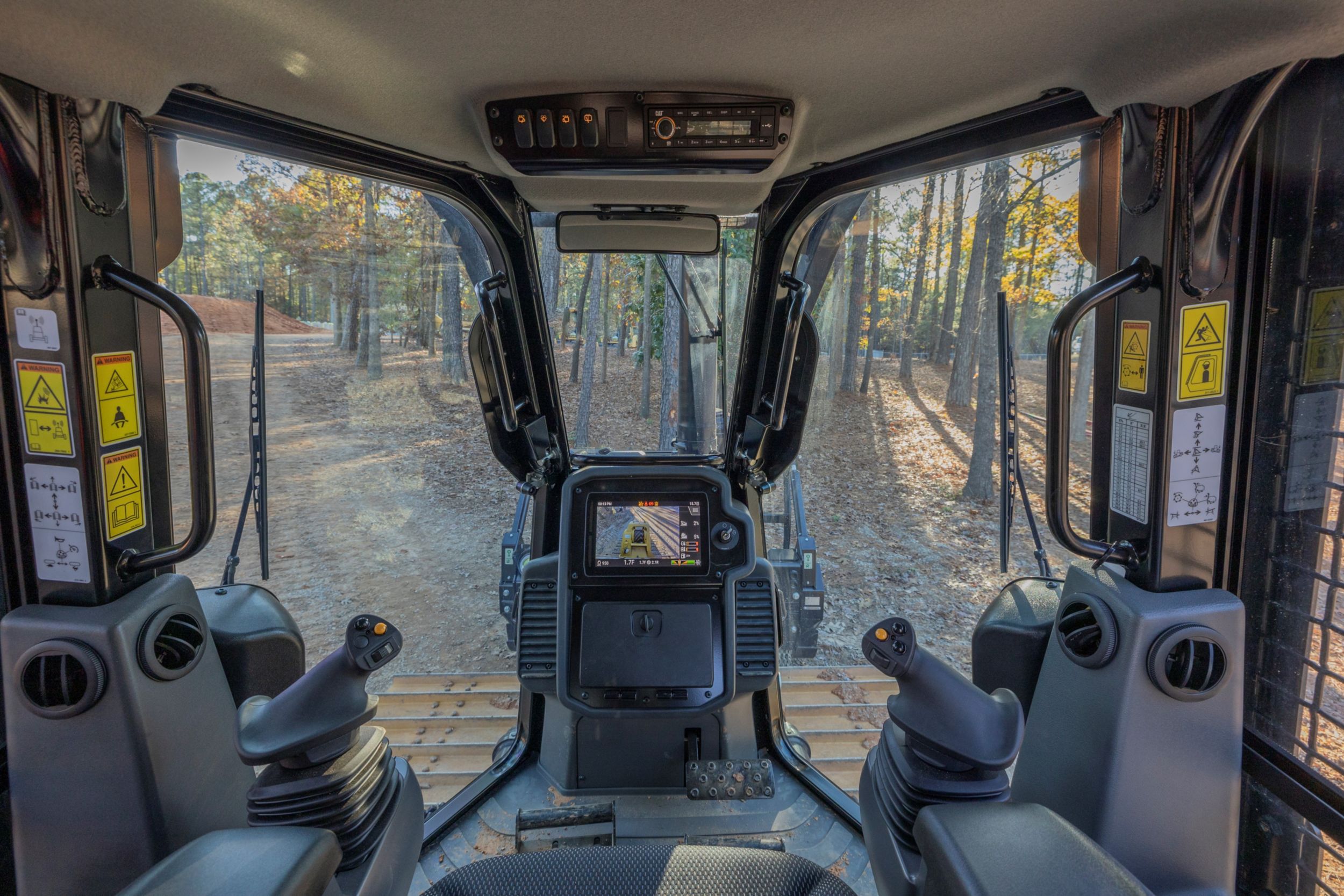

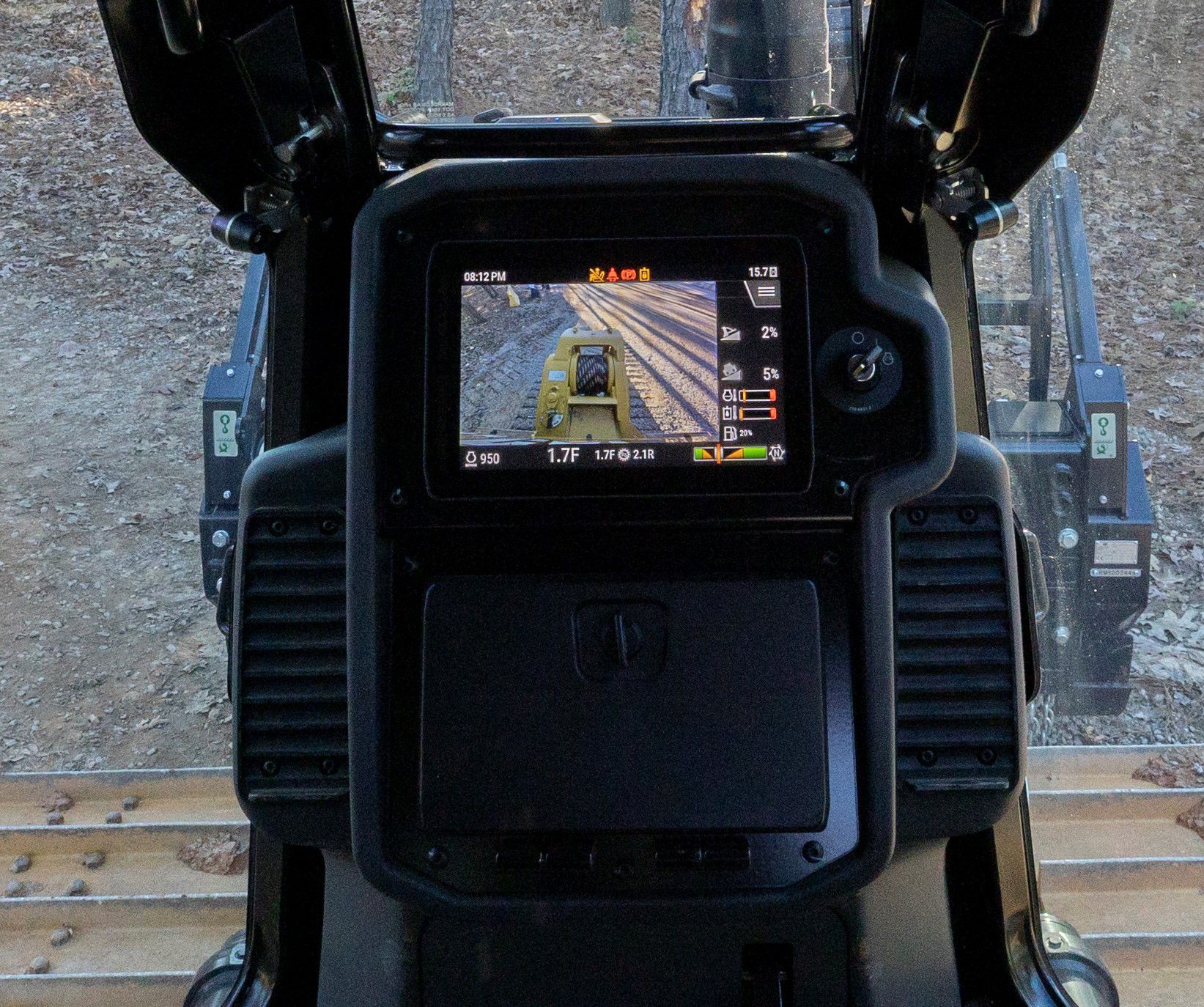

| Displacement | 220in³ |
|---|---|
| Engine Model | Cat C3.6 |
| Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 | 104hp |
| Net Power - 2,200 rpm - SAE J1349 | 104hp |
| Note (1) | Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator. |
| Note (2) | All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. |
| Power - Net | 104hp |
| Control | Hydraulic |
|---|---|
| Drum Capacity - Optional Cable | 195ft |
| Drum Capacity - Recommended Cable | 277ft |
| Drum Diameter | 8in |
| Drum Width | 9.65in |
| Maximum Line Pull - Bare Drum | 32150lb |
| Maximum Line Pull - Full Drum | 20350lb |
| Maximum Line Speed - Bare Drum | 50ft/min |
| Maximum Line Speed - Full Drum | 79ft/min |
| Overall width | 27.91in |
| Rope Diameter - Optional | 0.75in |
| Rope Diameter - Recommended | 0.67in |
| Speed | Variable |
| Throat Clearance | 5.6in |
| Weight | 794lb |
| Winch Drive | Hydraulic |
| Winch Length | 35.63in |
| Note | Specifications shown are for machine equipped with mulcher, cab ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank. |
|---|---|
| Operating Weight | 23338lb |
| Operating Weight - LGP | 24209lb |
| Drive Pumps | 1 |
|---|---|
| Maximum Travel Speed - Forward | 5.6mile/h |
| Maximum Travel Speed - Reverse | 6.2mile/h |
| Relief Valve Settings | 7033psi |
| Track Motors | 2 |
| Pump Output | 17.2gpm |
|---|---|
| Relief Valve Settings | 2988psi |
| Power Train | Hydrostatic |
|---|
| FOPS | ISO 3449:2005 Level II |
|---|---|
| ROPS | ISO 3471:2008 |
| Ground Pressure - LGP | 4.3psi |
|---|---|
| Length - Track on Ground - LGP | 89in |
| Number of Rollers - Each Side | 6 |
| Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage | 43 |
| Shoe Width - LGP | 25in |
| Shoe Width - Standard | 16in |
| Track Gauge | 59in |
| Track Gauge - LGP | 68in |
| Ground Pressure | 6.45psi |
|---|---|
| Length of Track on Ground | 89in |
| Cooling System | 4.2gal (US) |
|---|---|
| Crankcase - With Filter | 2.8gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 4.9gal (US) |
| Final Drive - Each - LGP | 2.6gal (US) |
| Fuel Tank | 51.5gal (US) |
| Transmission - Hydraulic Tank | 23.8gal (US) |
| Final Drives - Each Side | 2.6gal (US) |
|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe). See label or instruction manual for gas refrigerant identification. If machine is equipped with R134a (Global Warming Potential = 14 |
|---|
| Ground Clearance - LGP | 13in |
|---|---|
| Length - Basic Tractor - Without Mulcher - LGP | 128.9in |
| Length - Basic Tractor - Without Mulcher - Standard | 128.9in |
| Overall Length - With Blade - LGP | 167.6in |
| Track Gauge - LGP | 67.9in |
| Tractor Height - LGP | 108.8in |
| Width - Tractor - Standard Shoes - No Mulcher - LGP | 92.9in |
| Width - Tractor - Standard Shoes - No Mulcher - Standard | 74.8in |
| Ground Clearance - Standard | 13in |
|---|---|
| Overall Length - With Blade - Standard | 168in |
| Track Gauge - Standard | 58.9in |
| Tractor Height - Standard | 112in |

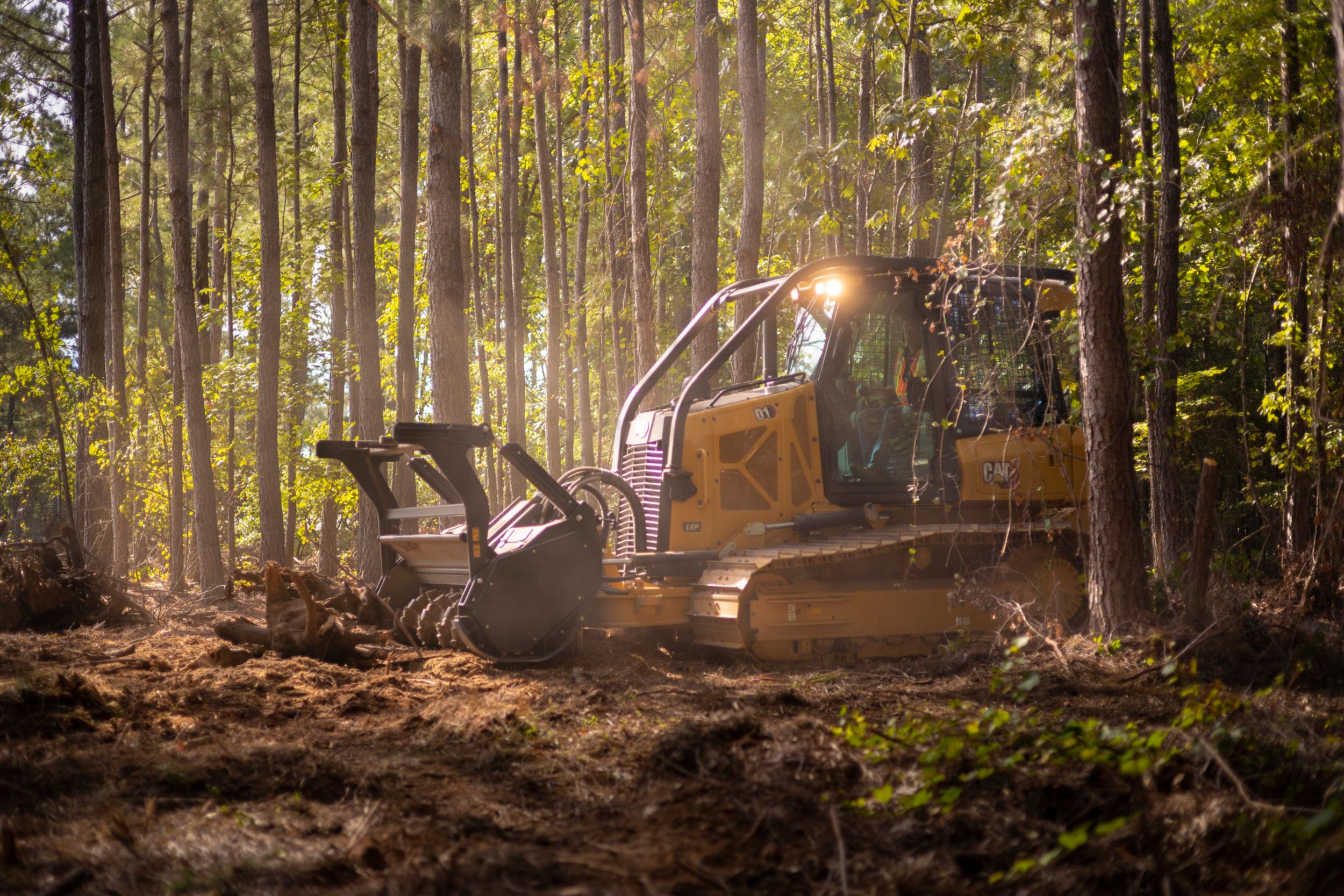

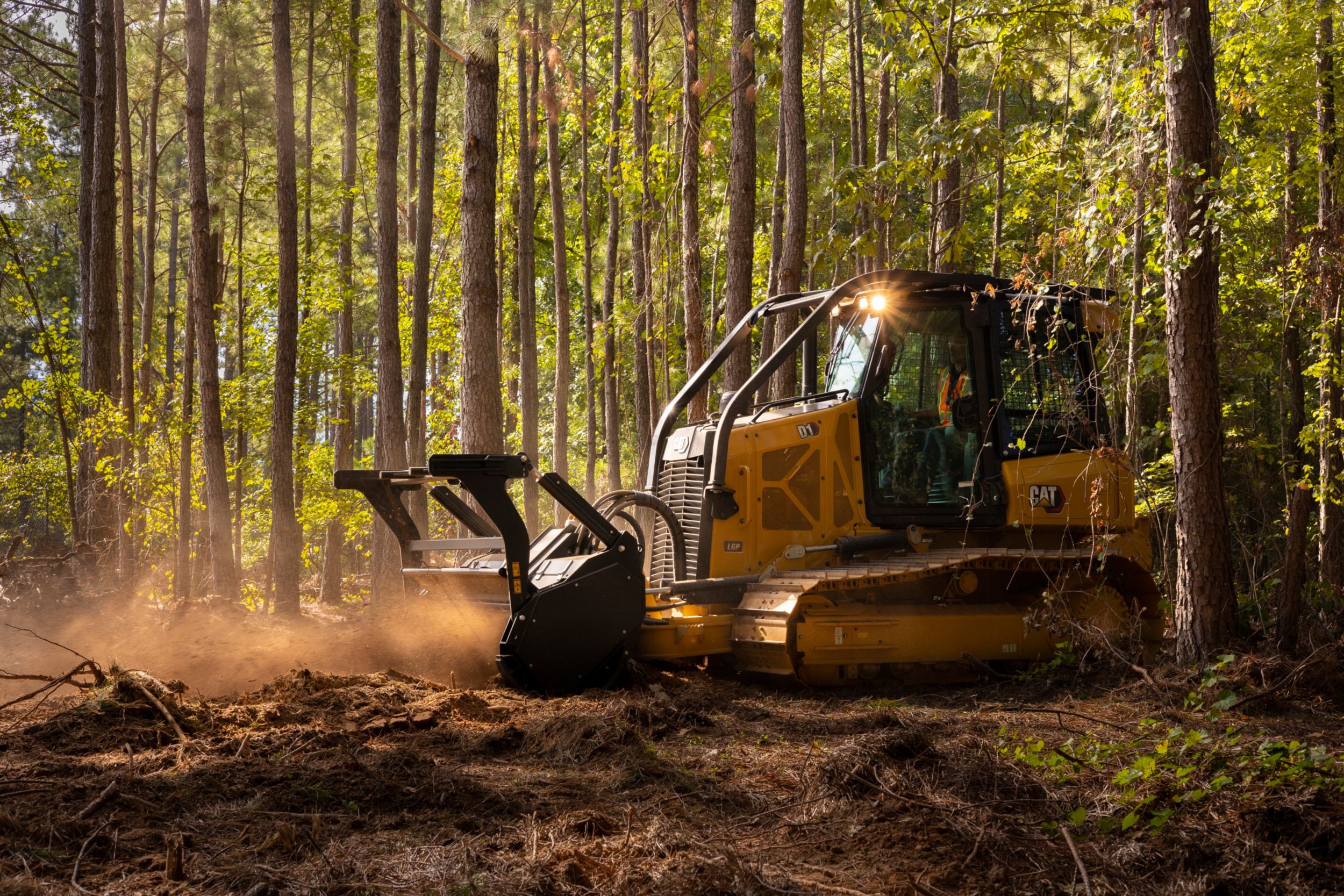

| Drive Method | Polychain belt |
|---|---|
| Drum Speed Range | 2,150-2,450 rpm |
| Fixed Teeth per Drum | 38 |
| Length | 53in |
| Lift Height | 31in |
| Maximum Angle - Either Side | 25° |
| Maximum Tilt | 14.5in |
| Motor | Closed loop hydrostatic |
| Optimum Hydraulic Flow | 30gpm |
| Optimum Hydraulic Pressure | 5900psi |
| Overall Height | 58in |
| Overall Width | 84in |
| Weight | 3197lb |
| Working Width | 72in |
