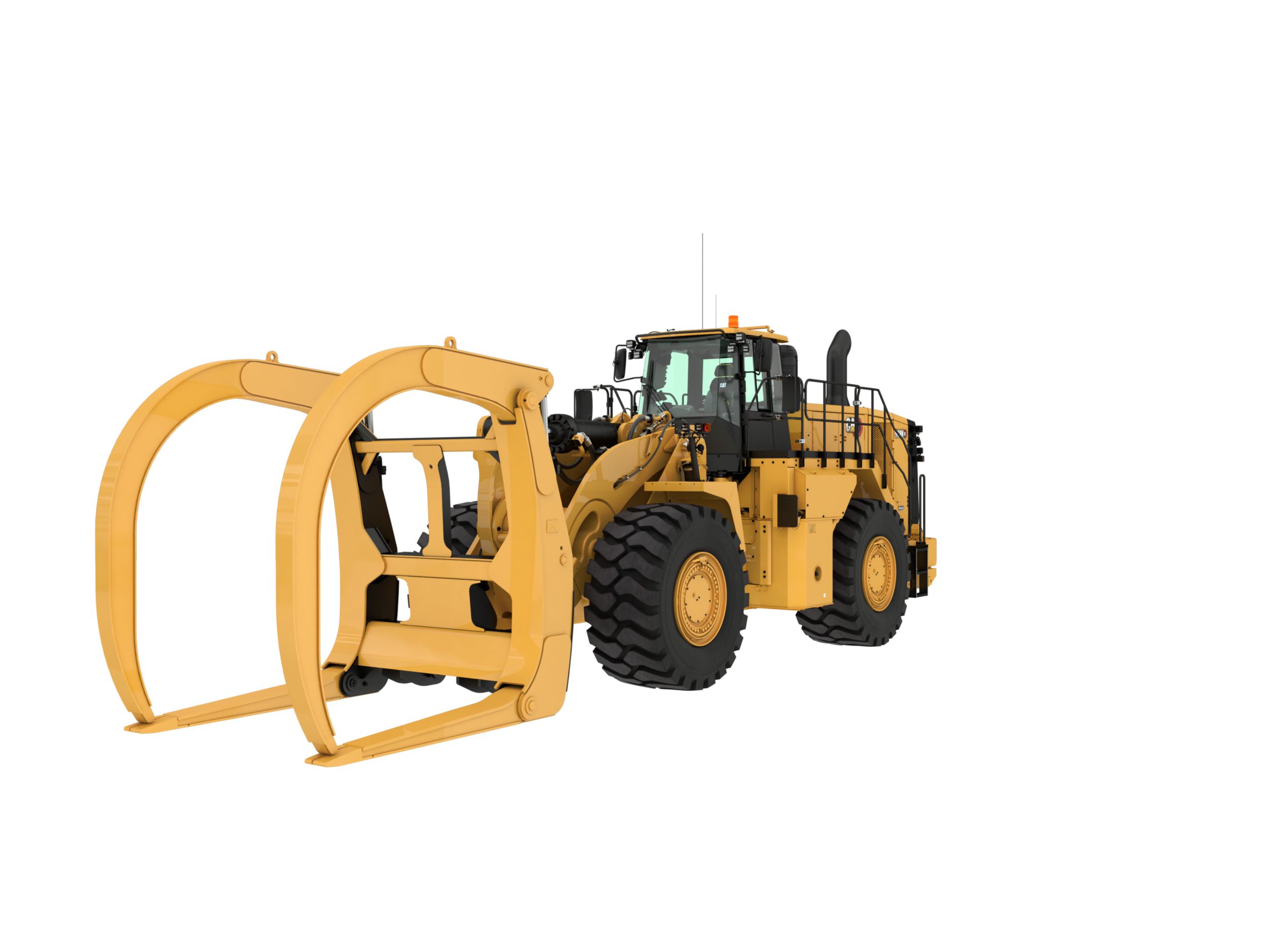

| Bore | 5.7in |
|---|---|
| Displacement | 1105in³ |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 |
| Engine Model | Cat® C18 ™ |
| Engine Power - ISO 14396 | 580HP |
| Gross Power - SAE J1995 | 588HP |
| Net Power - SAE J1349 | 538HP |
| Peak Power Speed | 1,500 rpm |
| Peak Torque - 1,200 rpm - SAE J1995 | 2230ft·lbf |
| Rated Speed | 1,700 rpm |
| Stroke | 7.2in |
| Torque Rise | 58% |
| Bucket Capacity Range | 4.7-13 m3 (6.2-17 yd3) |
|---|---|
| Operating Weight | 116362lb |
| Operating Weight - High Lift | 119618lb |
| Operating Weight - Standard | 116362lb |
| Rated Payload - Loose Material (Standard) | 16ton (US) |
| Rated Payload - Standard (Quarry Face) | 12.5ton (US) |
| Bucket Capacities | 4.7-13 m3 (6.2-17 yd3) |
|---|
| Forward 1 (virtual) | 4.3mile/h |
|---|---|
| Forward 2 (virtual) | 7mile/h |
| Forward 3 (virtual) | 13.8mile/h |
| Forward 4 (virtual) | 20mile/h |
| Reverse 1 (virtual) | 4.3mile/h |
| Reverse 2 (virtual) | 7mile/h |
| Reverse 3 (virtual) | 17.5mile/h |
| Transmission Type | Cat switched reluctance electric drive |
| Lift Cylinder - Bore | 8.7in |
|---|---|
| Lift Cylinder - Stroke | 41.3in |
| Lift/Tilt System - Circuit | EH-Positive Flow Control, Flow Sharing |
| Lift/Tilt System - Pump | Variable displacement piston |
| Maximum Flow at 1,400-1,600 rpm | 153gal/min |
| Relief Valve Setting - Lift/Tilt | 4757psi |
| Tilt Cylinder - Bore | 8.7in |
| Tilt Cylinder - Stroke | 27in |
| Dump | 2.2s |
|---|---|
| Lower Float Down | 3.5s |
| Rack Back | 4.5s |
| Raise | 8s |
| Total Hydraulic Cycle Time | 18.2s |
| Maximum Flow at 1,400-1,600 rpm | 71.3gal/min |
|---|---|
| Steering Cut Off Pressure | 4351psi |
| Steering Cycle Times - High Idle | 3.4s |
| Steering Cycle Times - Low Idle | 5.6s |
| Steering System - Circuit | Pilot, load sensing |
| Steering System - Pump | Piston, variable displacement |
| Total Steering Angle | 86° |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
|---|
| Front | Fixed |
|---|---|
| Oscillation Angle | 13° |
| Rear | Trunnion |
| Brakes | ISO 3450:2011 |
|---|
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards |
|---|
| Cooling System - Jacket Water | 30gal (US) |
|---|---|
| Cooling Systems - Power Train | 8gal (US) |
| Diesel Exhaust Fluid Tank | 8.7gal (US) |
| Differential - Final Drives - Front | 49gal (US) |
| Differential - Final Drives - Rear | 49gal (US) |
| Engine Crankcase | 16gal (US) |
| Fuel Tank | 147gal (US) |
| Hydraulic System - Implement/Steering | 126gal (US) |
| Note | All nonroad Tier 4 Final/Stage V diesel engines are required to use: – The machine has the flexibility to run on either ultra-low-sulfur diesel fuel (ULSD with 15 ppm of sulfur or less). – Cat engines are compatible with the following renewable, alternati |
| Transmission | 16gal (US) |
| Machine Sound Level (ISO 6395) | 109dB(A) |
|---|---|
| Note (1) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (2) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Note (3) | The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Operator Sound Level (ISO 6396) | 72dB(A) |
| B-Pin Height - Maximum Lift | 18ft |
|---|---|
| Clearance at Maximum Lift | 11.9ft |
| Front Axle Centerline to Bucket Tip | 14ft |
| Ground to Bumper Clearance | 3.1ft |
| Ground to Center of Axles | 3.2ft |
| Ground to Lower Hitch Clearance | 1.9ft |
| Ground to Top of Exhaust Stacks | 14.8ft |
| Ground to Top of Hood | 10.9ft |
| Ground to Top of ROPS | 13.8ft |
| Maximum Overall Height - Bucket Raised | 24.5ft |
| Maximum Overall Length | 39.3ft |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |
| Reach - Maximum Lift | 6.5ft |
| Rear Axle - Centerline to Bumper | 10.5ft |
| Wheel Base | 14.9ft |
| B-Pin Height - Maximum Lift | 19.3ft |
|---|---|
| Clearance at Maximum Lift | 13.3ft |
| Front Axle Centerline to Bucket Tip | 15.3ft |
| Ground to Bumper Clearance | 3.1ft |
| Ground to Center of Axles | 3.2ft |
| Ground to Lower Hitch Clearance | 1.9ft |
| Ground to Top of Exhaust Stacks | 14.8ft |
| Ground to Top of Hood | 10.9ft |
| Ground to Top of ROPS | 13.8ft |
| Maximum Overall Height - Bucket Raised | 25.8ft |
| Maximum Overall Length | 40.7ft |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |
| Reach - Maximum Lift | 6.8ft |
| Rear Axle - Centerline to Bumper | 10.5ft |
| Wheel Base | 14.9ft |
| Recyclability | 96% |
|---|
