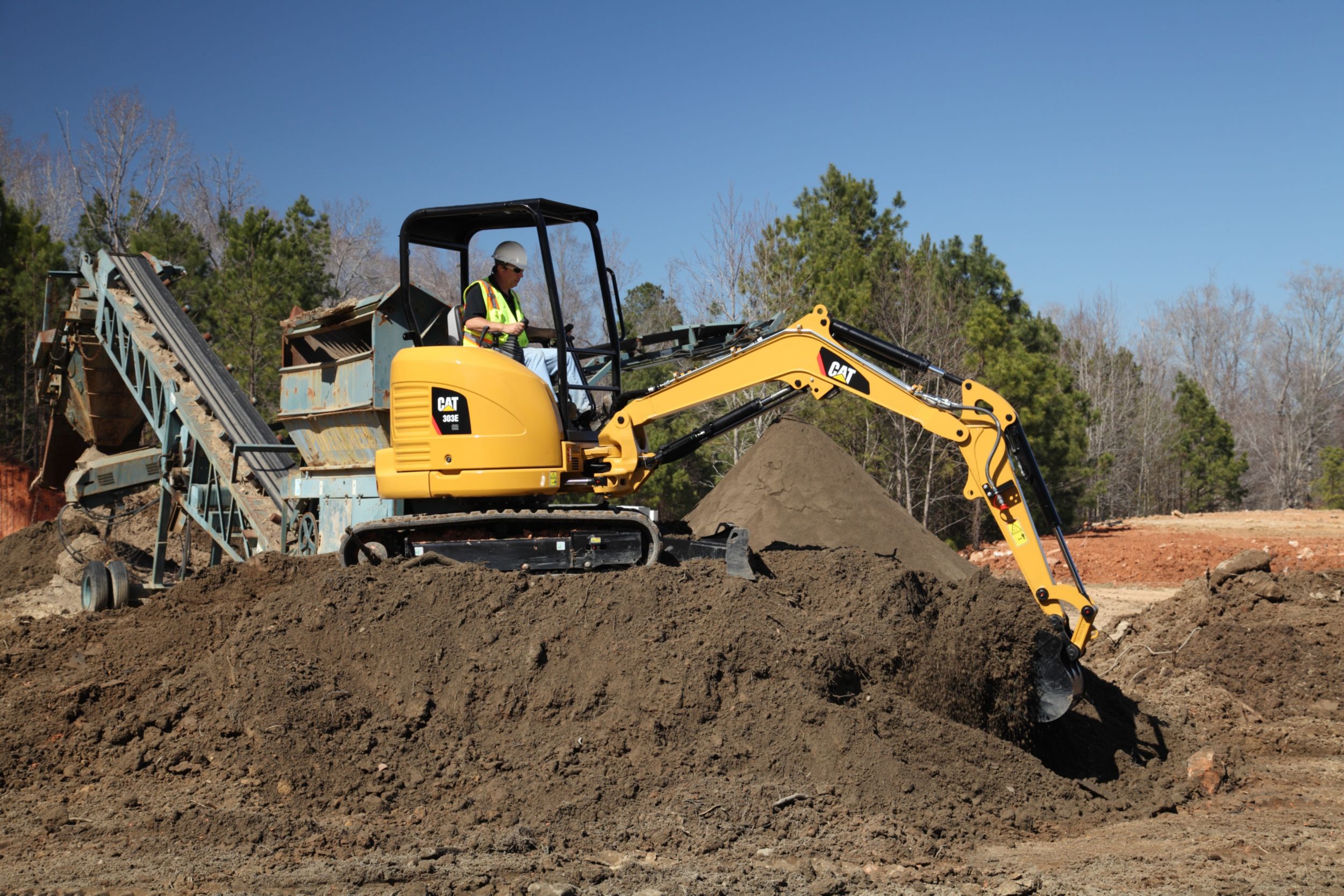

Excavators

Engine

Net Power
23.5HP
Engine Model
Cat C1.3
Gross Power
24.8HP
Rated Net Power - 2,400 rpm - ISO 9249/EEC 80/1269
23.5HP
Note
Cat C1.3 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Gross Power - ISO 14396
24.8HP
Bore
3.1in
Displacement
77in³
Stroke
3.5in

Weights

Operating Weight - With Cab
7204lb
Note
Weight includes counterweight, rubber tracks, bucket, operator, full fuel and auxiliary lines.
Operating Weight - With Canopy
6721lb

Dimensions (Approximate) - Long Stick

Dig Depth
117in
Maximum Reach - Ground Level
193in
Maximum Dig Height
167in
Boom Height in Shipping Position
63in
Boom In Reach
79in
Boom Swing Left
24in
Boom Swing Right
32in
Maximum Blade Depth
19in
Maximum Blade Height
16in
Maximum Dump Clearance
117in
Maximum Reach
198in
Overall Shipping Height
98in
Overall Shipping Length
198in
Overall Track Width
61in
Overall Undercarriage Length
82in
Swing Bearing Height
22in
Tail Swing
31in
Tail Swing with Extra Counterweight
35in
Track Belt/Shoe Width
12in
Vertical Wall
69in

Swing System

Machine Swing Speed
9r/min
Boom Swing - Left*
80°
Boom Swing - Right
50°
Note
*Automatic swing brake, spring applied, hydraulic release.

Blade

Width
60in
Height
13in
Dig Depth
19in
Lift Height
16in

Undercarriage

Number of Carrier Rollers
1
Number of Track Rollers
4
Track Roller Type
Center Flange

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
Tip Over Protective Structure (TOPS)
ISO 12117:1997
Top Guard
ISO 10262:1998 (Level I)

Hydraulic System

Pump Flow at 2,400 rpm
23.1gal/min
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Bucket
6385lbf
Digging Force - Stick - Standard
3732lbf
Operating Pressure - Equipment
3553psi
Operating Pressure - Swing
2625psi
Digging Force - Stick - Long
3327lbf
Operating Pressure - Travel
3553psi
Auxiliary Circuit - Primary (186 bar/2,697 psi)
15.9gal/min
Auxiliary Circuit - Secondary (174 bar/2,523 psi)
7.1gal/min

Travel System

Gradeability - Continuous Operation
20°
Ground Pressure - Cab Long Stick
4.8psi
Ground Pressure - Cab Standard Stick
4.7psi
Maximum Traction Force - High Speed
3417lbf
Maximum Traction Force - Low Speed
6947lbf
Ground Pressure - Canopy Standard Stick
4.4psi
Ground Pressure - Canopy Long Stick
4.5psi
Travel Speed - Low
1.5mile/h
Travel Speed - High
2.8mile/h
Ground Pressure with Cab - Long Stick, Optional Counterweight
5.2psi
Ground Pressure with Cab - Standard Stick, Optional Counterweight
5.1psi
Ground Pressure with Canopy - Long Stick, Optional Counterweight
4.9psi
Ground Pressure with Canopy - Standard Stick, Optional Counterweight
4.8psi
Gradeability (< 10 minutes Operation)
30°

Operating Specifications

Stick Length - Standard
50in
Stick Length - Long
61in
Machine Overhang with Counterweight
5in
Machine Overhang
0in

Lift Capacities at Ground Level* - Lift Point Radius: 4000 mm (13'1")

Note
*The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Liftin
Blade Down - Side
750lb
Blade Up - Front
904lb
Blade Up - Side
662lb
Blade Down - Front
1632lb

Lift Capacities at Ground Level* - Lift Point Radius: 3000 mm (9'8")

Blade Up - Front
1433lb
Blade Up - Side
1080lb
Note
*The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Liftin
Blade Down - Front
2580lb
Blade Down - Side
1191lb

Service Refill Capacities

Hydraulic Tank
12.4gal (US)
Fuel Tank
11.9gal (US)
Engine Oil
1.5gal (US)
Hydraulic System
17.2gal (US)
Cooling System
1.2gal (US)

Dimensions (Approximate) - Standard Stick

Maximum Reach - Ground Level
189in
Maximum Dig Height
178in
Boom Height in Shipping Position
63in
Boom In Reach
83in
Boom Swing Left
24in
Boom Swing Right
32in
Dig Depth
108in
Maximum Blade Depth
19in
Maximum Blade Height
16in
Maximum Dump Clearance
124in
Maximum Reach
195in
Overall Shipping Height
98in
Overall Shipping Length
176in
Overall Track Width
60in
Overall Undercarriage Length
82in
Swing Bearing Height
22in
Tail Swing
31in
Tail Swing with Extra Counterweight
35in
Track Belt/Shoe Width
12in
Vertical Wall
77in

Weights*

Note
*Weight includes counterweight, rubber tracks, bucket, operator, full fuel and auxiliary lines.
Operating Weight with Cab - Long Stick
7296lb
Operating Weight with Cab - Long Stick, Optional Counterweight
7883lb
Operating Weight with Cab - Standard Stick
7204lb
Operating Weight with Cab - Standard Stick, Optional Counterweight
7790lb
Operating Weight with Canopy - Long Stick
6813lb
Operating Weight with Canopy - Long Stick, Optional Counterweight
7400lb
Operating Weight with Canopy - Standard Stick
6721lb
Operating Weight with Canopy - Standard Stick, Optional Counterweight
7307lb

Standard Equipment:

  • Standard Equipment
    • 1-way and 2-way (combined function) auxiliary hydraulic lines
    • Lockable storage box
    • Cab mounted work light
    • Travel alarm (optional in Europe)
    • Dozer blade with float function
    • Suspension seat, vinyl covered
    • Automatic two speed travel
    • Horn
    • Lifting eye on bucket linkage (standard equipment for all regions except Europe)
    • Alternator
    • Product Link
    • Cup holder
    • Control pattern changer
    • Coat hook
    • Standard stick
    • Low maintenance linkage pin joints
    • Gauges or indicators for fuel level engine coolant temperature, hour meter, engine oil pressure, air cleaner, alternator and glow plugs, service interval
    • Rubber track
    • Canopy with Top Guard ISO 10262:1998 (Level 1), ROPS ISO 12117-2:2008 and TOPS ISO 12117:1997
    • Hydraulic oil cooler
    • Auxiliary line quick disconnects
    • Retractable seatbelt
    • Boom cylinder guard
    • Maintenance free battery
    • Adjustable armrests
    • “Thumb ready” sticks
    • Automatic swing park brake
    • Foot travel pedals

Optional Equipment:

  • Optional Equipment
    • Mirrors for cab and canopy
    • Steel track
    • Cab, Top Guard ISO 10262:1998 (Level 1), ROPS ISO 12117-2:2008 and TOPS ISO 12117:1997
    • Mechanical quick coupler
    • Boom mounted light
    • High back suspension seat, fabric covered
    • Beacon socket for canopy machines
