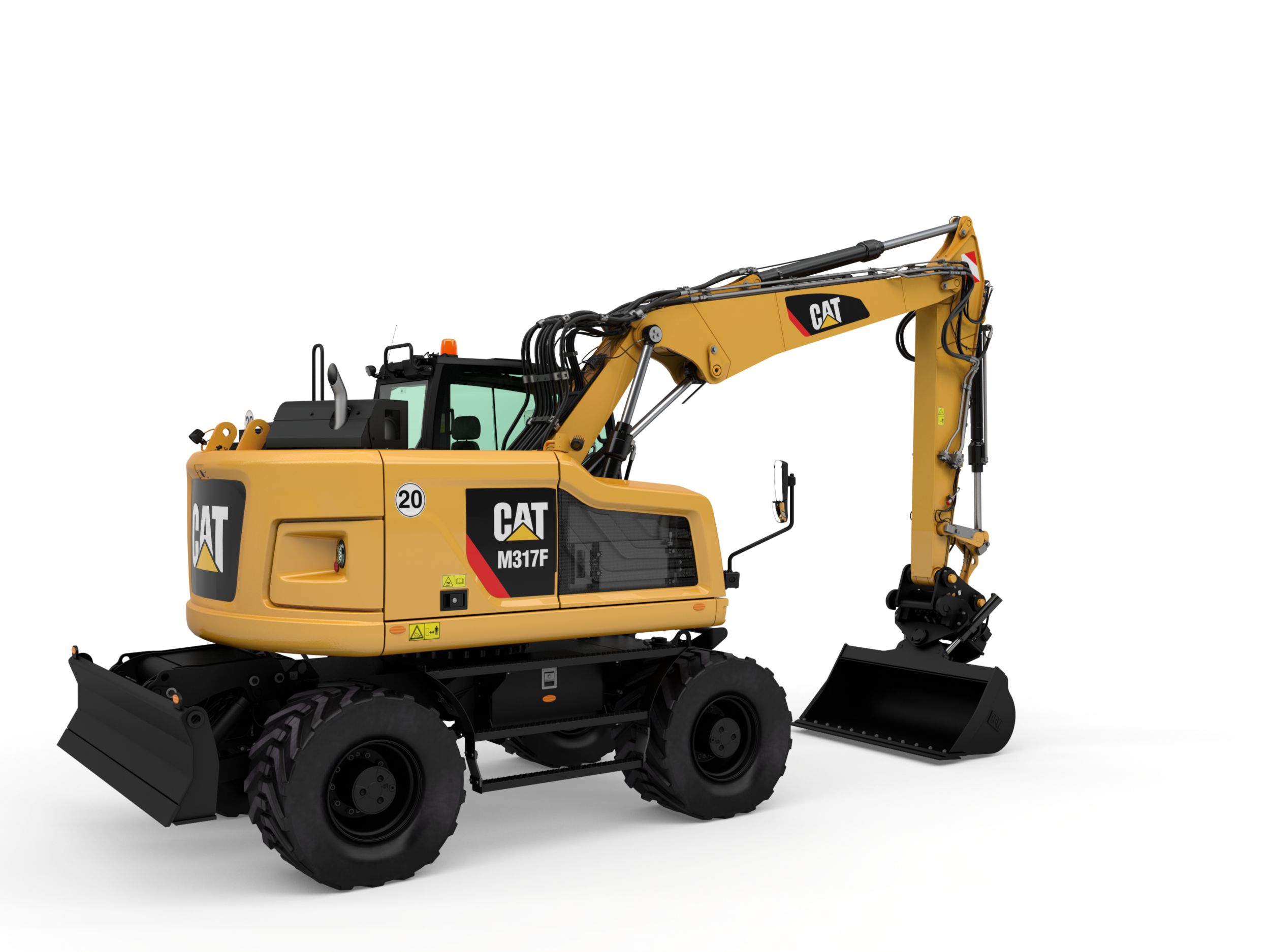

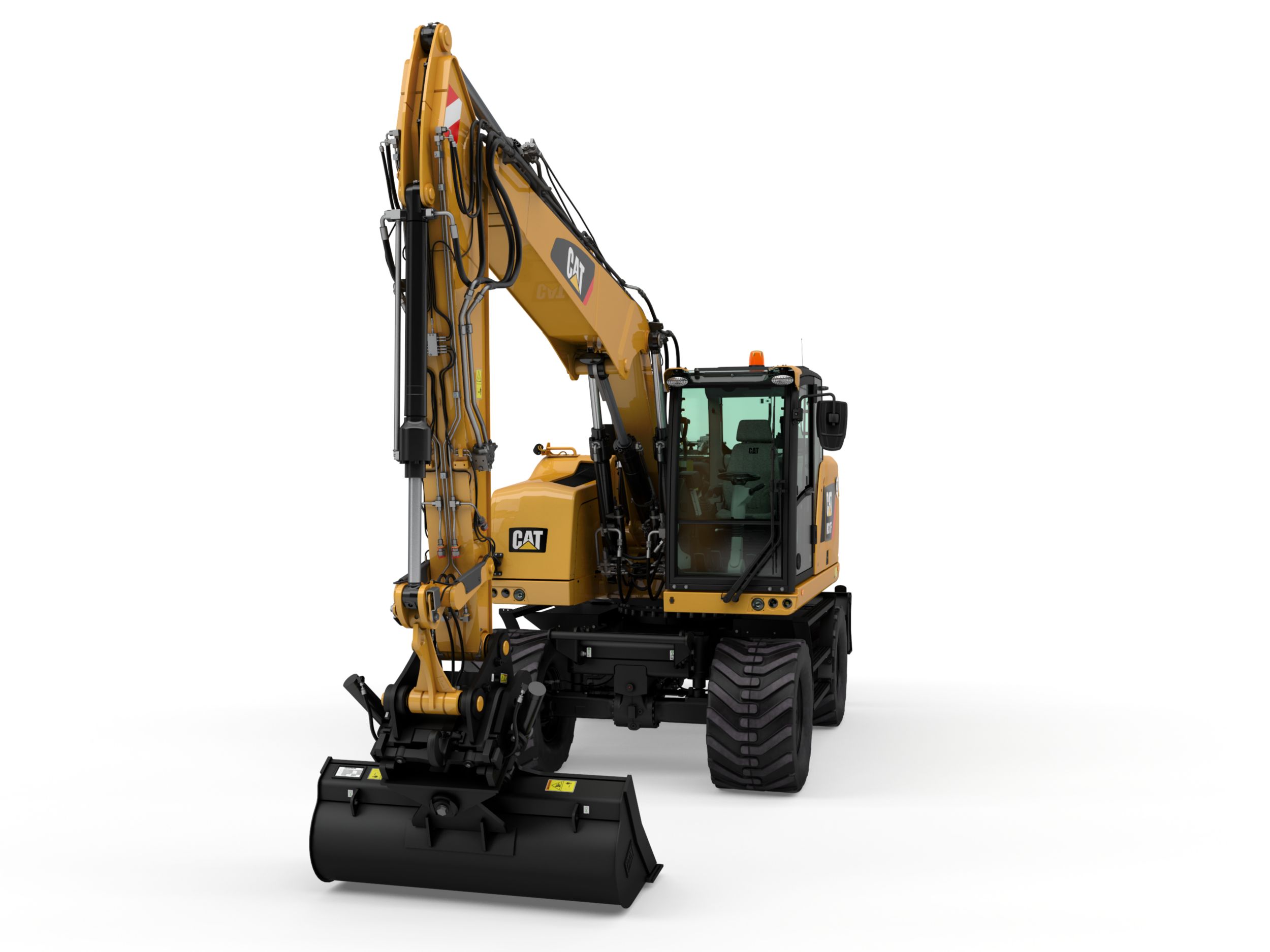

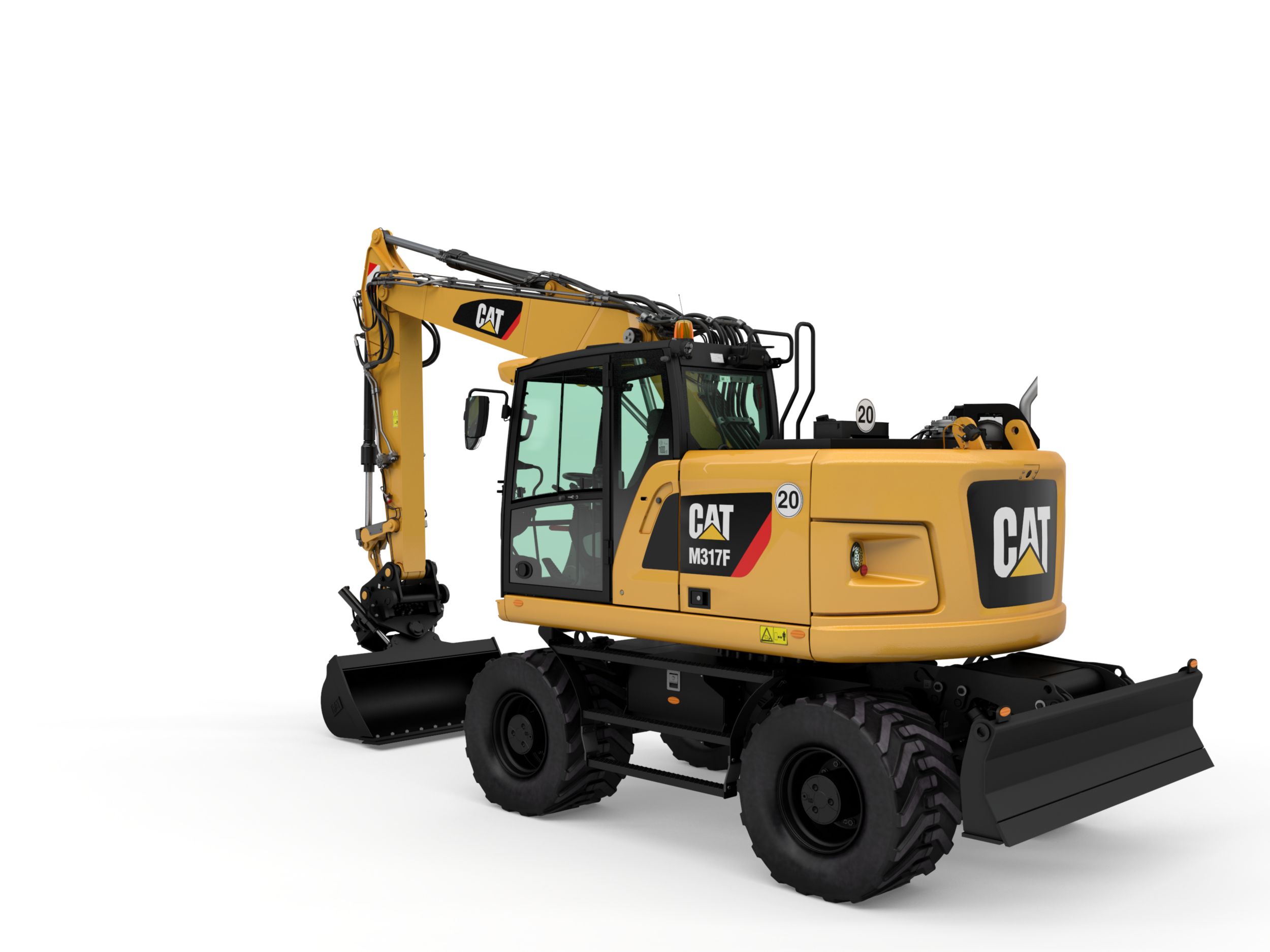

M317F Wheeled Excavator

Back to Home

Working hard has never been easier with Cat® F Series Wheeled Excavators. The M317F compact radius increases your fleet versatility by introducing you into new possible markets like those with tight-quarter tasks and turning radius constraints such as road construction or small job sites. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Request a quote
Bore 4.1in
Displacement 268.5in³
Emissions Meets Tier 4 Final/Stage IV emission standards.
Engine Model Cat C4.4 with Twin Turbo
Engine Power - Maximum Gross - ISO 14396 117 kW (157 hp [159 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349 112 kW (150 hp [152 hp]*)
Maximum Torque - 1,400 rpm 523ft·lbf
Net Power 150HP
Note *Metric values.
Number of Cylinders - In Line 4
Ratings 1800r/min
Stroke 5in
Maximum Travel Speed 19mile/h
Maximum Swing Torque 27289ft·lbf
Swing Speed 9r/min
Drawbar Pull 23380lbf
Maximum Forward/Reverse - 2nd Gear 19mile/h
Maximum Gradeability (17 500 kg/38,580 lb) 70%
Counterweight 9480lb
Note *Includes medium stick, counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.
Operating Weight* 16 750 to 17 750 kg (36,927 to 38,691 lb)
VA Boom - Front Dozer, Rear Outriggers 38691lb
VA Boom - Rear Dozer Only 36927lb
Ground Clearance 14.6in
Maximum Shipping Length - With Long Stick 27.75ft
Maximum Width - With Parallel Blade 8.33ft
Tail Swing Radius 5.83ft
Maximum Flow - Auxiliary Circuit - High Pressure 58gal/min
Maximum Flow - Auxiliary Circuit - Medium Pressure 12.7gal/min
Maximum Flow - Implement/Travel Circuit 58gal/min
Maximum Flow - Swing Mechanism 18.5gal/min
Maximum Pressure - Auxiliary Circuit - High Pressure 5076psi
Maximum Pressure - Auxiliary Circuit - Medium Pressure 2683psi
Maximum Pressure - Implement Circuit - Heavy Lift 5439psi
Maximum Pressure - Implement Circuit - Normal and Travel Circuit 5076psi
Swing Mechanism 4786psi
System 64.7gal (US)
Diesel Exhaust Fluid Tank 5gal (US)
Fuel Tank - Total Capacity 77.9gal (US)
Note Range values are calculated with GD bucket 1100 mm (3'7"), 0.80 m3 (1.05 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").
VA Boom - 2450 mm (8'0") Stick Length: Digging Depth 18.67ft
VA Boom - 2450 mm (8'0") Stick Length: Digging Height 32.5ft
VA Boom - 2450 mm (8'0") Stick Length: Dump Height 22.33ft
VA Boom - 2450 mm (8'0") Stick Length: Reach at Ground Level 29.08ft
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth 19.25ft
VA Boom - 2600 mm (8'6") Stick Length: Digging Height 33.58ft
VA Boom - 2600 mm (8'6") Stick Length: Dump Height 23.33ft
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level 29.92ft
