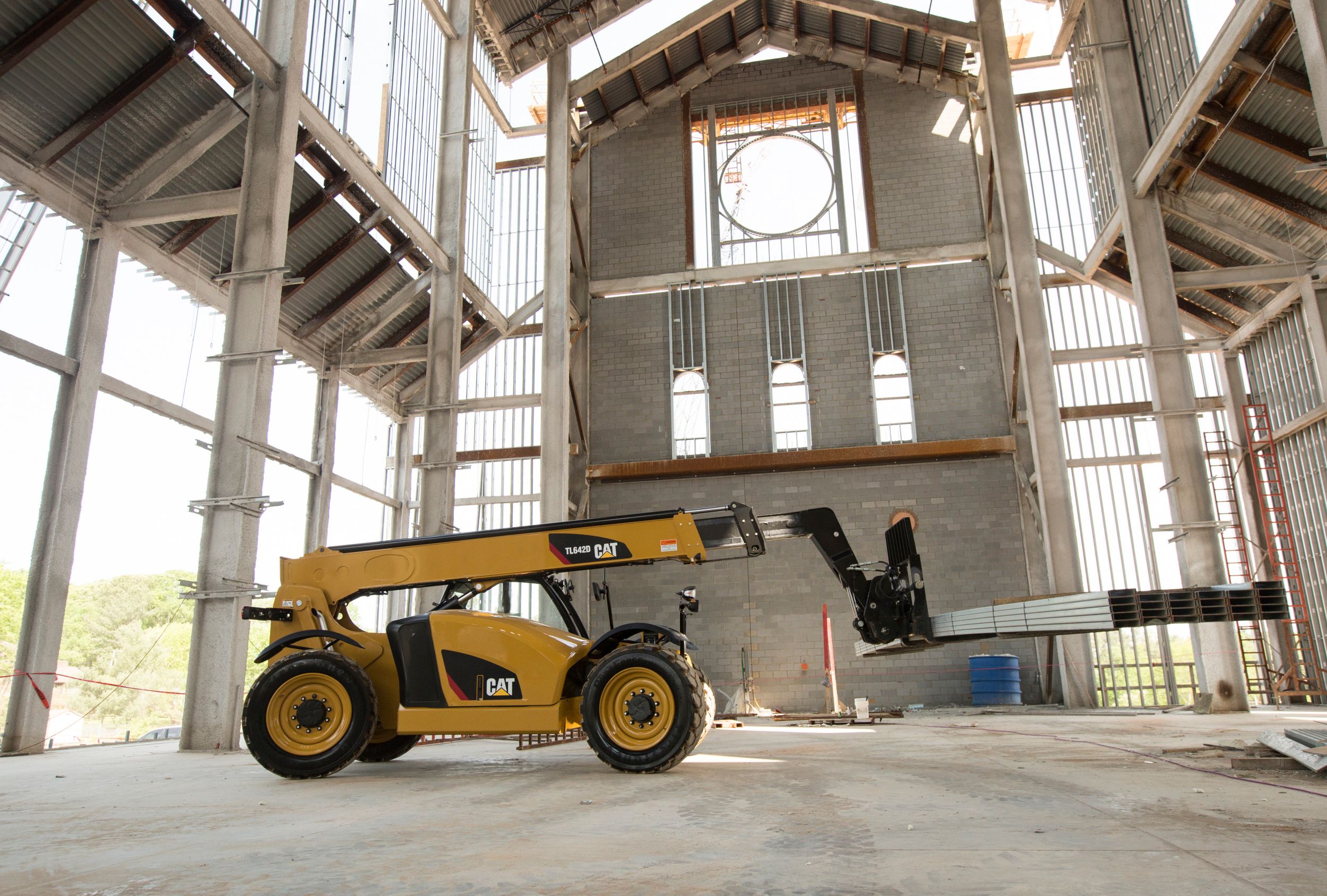

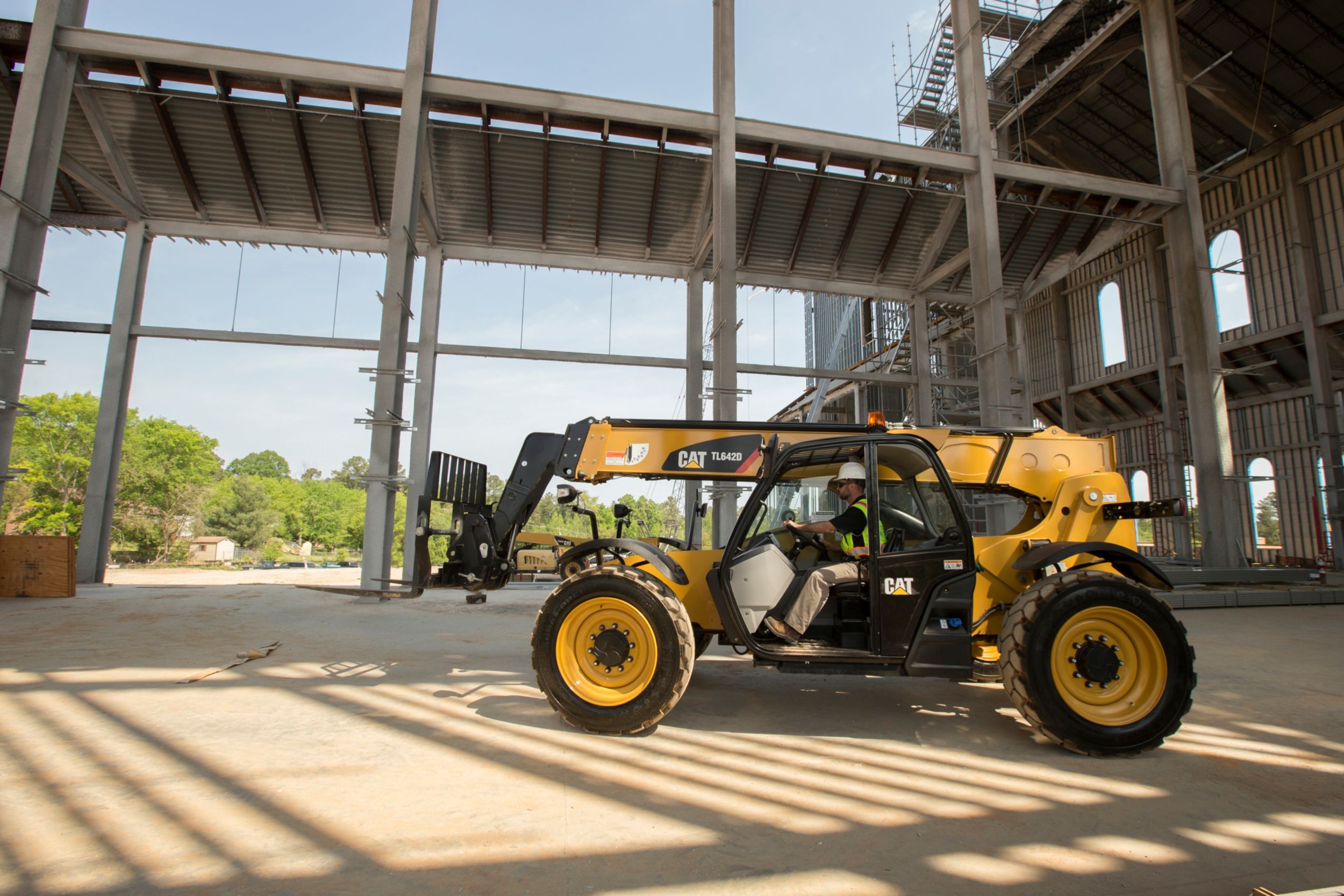

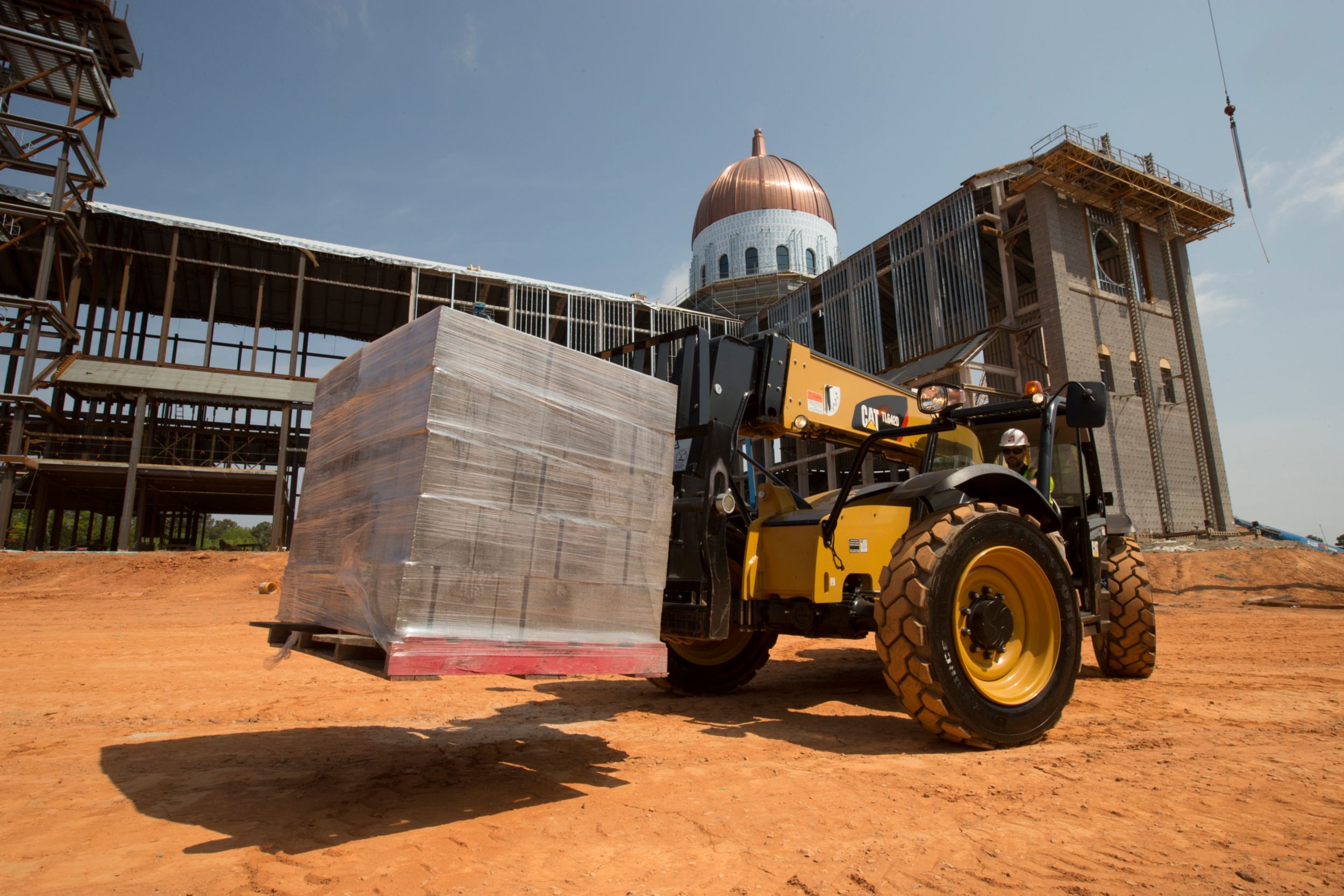

TL642D Telehandler

Back to Home

The TL642D is precision engineered to handle any task, offering stability, maneuverability, speed and power in any application.

From: $174,951.10*

* Taxes, shipping & handling, surcharges, assembly charges, destination, freight and/or delivery charges are not included. This is not an offer for sale. Displayed pricing is for informational purposes only. The pricing shown above utilizes the Manufacturer's Suggested Retail Price (MSRP) that is published for the machine (without any attachments or protection plans) as described above. The actual prices and terms and conditions of sale for all products are to be solely determined by the selling

Request a quote
Capacity at Maximum Height 6500lb
Capacity at Maximum Reach 700lb
Drawbar Pull - Loaded 19783lbf
Frame Leveling 10°
Maximum Forward Reach 30ft
Maximum Lift Height 42ft
Rated Load Capacity 6500lb
Top Travel Speed 21mile/h
Turning Radius - Over Tires 12ft
Engine Model Cat® C3.4B
Gross Power - Basic 100HP
Note Meets U.S. EPA Tier 4 Final emission standards.
Operating Weight 22002lb
Optional (1) 370/75-28 Foam Duraforce
Optional (2) 13.00 × 24-16 PR Air
Optional (3) 13.00 × 24-12 PR Foam Filled
Optional (4) 13.00 × 24 Solid
Standard 370/75-28 Air Duraforce
Diesel Exhaust Fluid (DEF) Tank 5.7gal (US)
Fuel Tank 38.3gal (US)
Hydraulic System 40gal (US)
Boom Down 10.3s
Boom Up 15s
Tele In 9.5s
Tele Out 16.3s
Auxiliary Hydraulic Flow 18gal/min
Auxiliary Hydraulic Pressure 3481psi
Gear Pump Single-section
Note Auxiliary Hydraulic Circuit used for all attachments equipped with cylinders or other hydraulic components.
System Operating Pressure 3770psi
Parking Brakes Wet disc, spring applied hydraulic release on front axle
Service Brakes Inboard wet disc brakes on front and rear axles
Type (1) Trunnion mounted planetary 55 degree steer axles.
Type (2) High bias limited slip differential on front axle.
Carriages - Dual Fork Positioning 50in
Carriages - Side Shift 48in
Carriages - Standard Rotate 50in
Carriages - Standard Tilt 50in
Carriages - Swing 100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung)
Carriages - Wide Rotate 72in
Carriages - Wide Tilt 72in
Cubing Forks [2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in)
Hydraulic IT Coupler Includes Auxiliary Electrics
Lumber Forks - Option 1 [2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in)
Lumber Forks - Option 2 [2] 1829 mm, 50 mm × 150 mm ([2] 72 in, 2 in × 6 in)
Pallet Forks - Option 1 [2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in)
Pallet Forks - Option 2 [2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in)
Pallet Forks - Option 3 [2] 1525 mm, 60 mm × 150 mm ([2] 60 in, 2.36 in × 6 in)
Forward 4 speed
Reverse 3 speed
