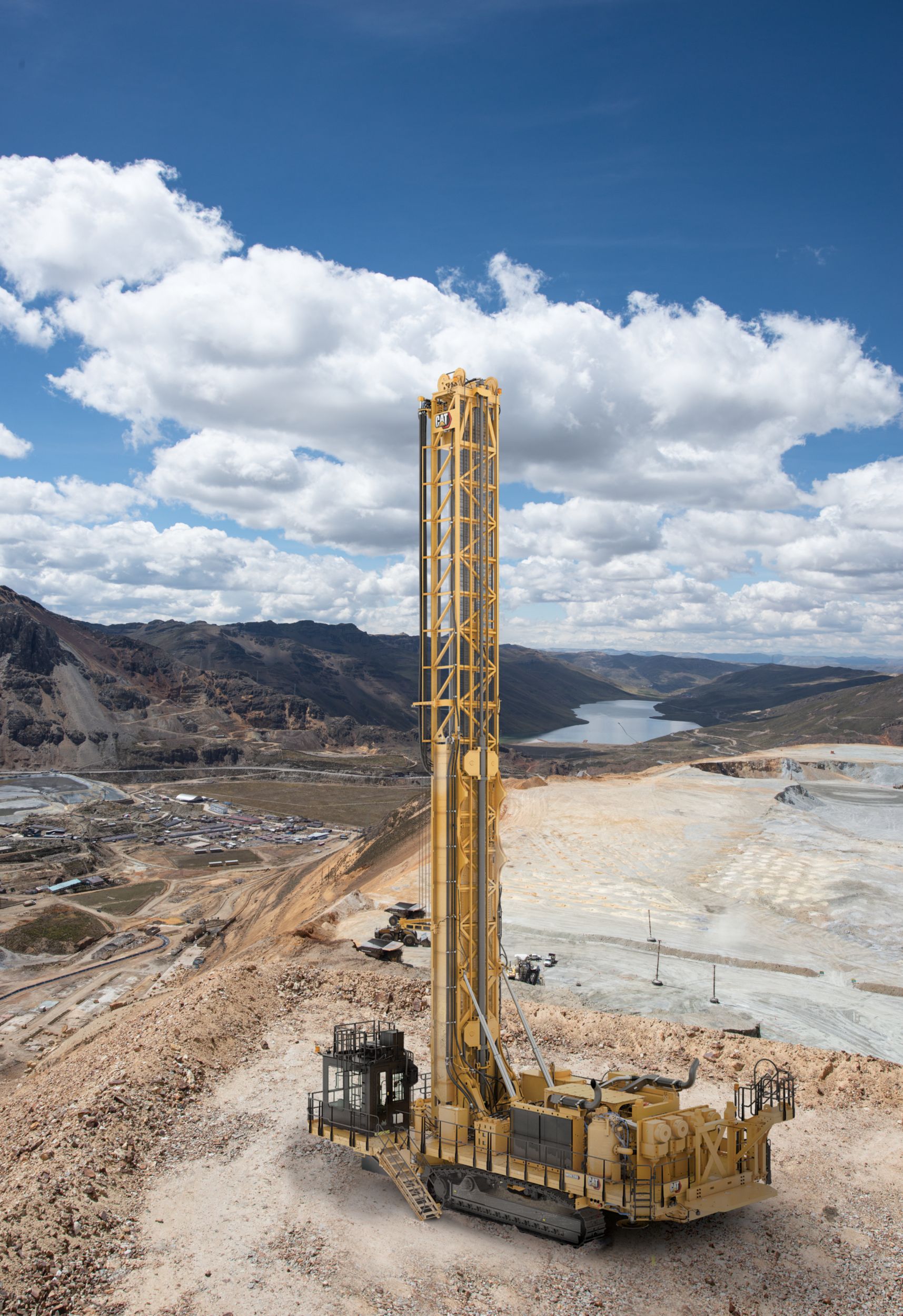

MD6380 Rotary Blasthole Drill

Back to Home
Bit Load Up to 53 845 kg (118,719 lb)
Engine Cat® 3512C @ 1,800 rpm
Hole Diameter 251-381 mm (9.875-15 in)
Features Functional in ambient temperature of 52° C (125° F)
Climate Level 1 Standard Fluids and Lubricants (1) – Temperature range of –1° C (30° F) to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants – Temperatures down to –18° C (–0.4° F)
Components (1) Two (2) primary pumps – 280 cc (piston with proportional electronic controls)
Components (2) One (1) auxiliary circuit pump – 145 cc (piston, load sensing)
Components (3) Two (2) fan pumps – 100 cc (piston with proportional electronic controls)
Components (4) Two (2) charge pumps – 74 cc (fixed displacement)
Components (5) Scheduled Oil Sampling (S·O·SSM) ports
Emissions (1) U.S. EPA Tier 2/EU Stage II equivalent
Engine Cat® 3512C @ 1,800 rpm
Power Rating (ISO 14396) 1273HP
Power Rating (J1995) 1287HP
Choice Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE
Cat 374 EEL - Double Grousers for Hard Rock Applications 29.5in
Cat 374 EEL - Double Grousers for Soft Rock Applications 35.4in
Cat 374 EEL - Drawbar Pull 723316lbf
Bit Load Up To 118719lb
Hole Diameter Range 251-381 mm (9.875-15 in)
Multi-Pass Hole Depth Down To 129ft
Note (1) Vertical or angle drilling
Pull Down Capacity Up To 110000lb
Rotation Torque Up To 15400lbf
Single Pass Hole Depth Down To 65ft
219 mm (8.625 in) diameter – LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
235 mm (9.25 in) diameter – LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
273 mm (10.75 in) diameter – LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
324 mm (12.75 in) diameter – Single pipe rack
– Dust collector side only
– Single pass only
340 mm (13.375 in) diameter – Single pipe rack
– Dust collector side only
– Single pass only
Feature LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe
Variable Grip – 219, 235, 273 mm (8.625, 9.25, 10.75 in)
– 324, 340 mm (12.75, 13.375 in)
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal – 219 mm (8.625 in)
– 235 mm (9.25 in)
– 273 mm (10.75 in)
– 324 mm (12.75 in)
– 340 mm (13.375 in)
Shock absorber with top sub adapter - available in Standard or Premium – 219 mm (8.625 in)
– 235 mm (9.25 in)
– 273 mm (10.75 in)
– 324 mm (12.75 in)
– 340 mm (13.375 in)
Cab - Premium – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass
– Additional storage plus windshield wipers on front and rear windows
– Removable driller window guard plus front window guard and trainer seat
Cab - Standard – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Service Package - Premium – Service center for lubricant drain and fill
– Fast fill fuel and water
– Automated lubricant system
Service Package - Standard – Fast fill fuel and water only
– Automated lubricant system
Water Injection System 600gal (US)
Water Injection System (Note 1) Tank below deck
Water Injection System (Note 2) Fast fill
Water Injection System, High Volume Total Tank Capacity 1400gal (US)
Water Injection System, High Volume Total Tank Capacity (Note 1) 2271 L (600 gal) below deck mounted tank
Water Injection System, High Volume Total Tank Capacity (Note 2) 3028 L (800 gal) above deck mounted tank
Water Injection System, High Volume Total Tank Capacity (Note 3) Fast fill
Water Injection/Dry Dust Collection 600gal (US)
Water Injection/Dry Dust Collection (Note 1) Tank below deck
Water Injection/Dry Dust Collection (Note 2) Fast fill
Water Injection/Dry Dust Collection (Note 3) 204 m³/min (7,200 ft³/min) dry dust collection
Note (1) Four (4) each batteries, sealed
Note (2) Six (6) each batteries, sealed
– Required for semi/full autonomy packages
Components (1) Single pass auto drill/drill assist
Components (2) Multi pass auto drill/drill assist
Components (3) Drill depth meter
Components (4) Auto level, auto retract jacks, auto raise and lower mast
Components (5) Electric controls for drilling, tramming, leveling plus auxiliary functions
Components (6) Product Link™
Type (1) Radio-ready for communication and entertainment radio
Type (2) Integrated Terrain for Drilling complete with wiring and harnesses
Height mast down 21.7ft
Height mast up 87.6ft
Length mast down 92.9ft
Mast Only Shipping Length 82.8ft
Note *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)
Working Length Mast Up* 48.1ft
Working Width (drill end) 22.6ft
Working Width (non-drill end) 19.9ft
Mast Only 88184lb
Without Mast 225533lb
Working Weight Range 142 300 kg (313,717 lb)
Accessory (1) Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock
Accessory (2) One hydraulic pipe catcher
Accessory (3) Hydraulic pipe support in the upper section of the mast

Standard Equipment:

  • Power Train
    • Receiver tank for ASME/CRN/AU or CE receiver tank
  • Cab
    • Standard cab
      – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
    • Viewing hatch to spot over the hole
    • LED lighting
  • Controls
    • Basic drill depth indicator and interlocks
  • Product Link/terrain
    • Product Link (Cellular)
  • Mast
    • No mast access/handrail only
  • Pipe Loader (select One)
    • 219 mm (8.625 in) diameter
      – Two pipe rack
      – Capable of single and multi-pass
    • 235 mm (9.25 in) diameter
      – Two pipe rack
      – Capable of single and multi-pass
    • 273 mm (10.75 in) diameter
      – Two pipe rack
      – Capable of single and multi-pass
    • 324 mm (12.75 in) diameter
      – Single pipe rack
      – Dust collector side only
      – Single pass only
    • 340 mm (13.375 in) diameter
      – Single pipe rack
      – Dust collector side only
      – Single pass only
  • Top Sub/shock Sub (select One)
    • 219 mm (8.625 in) standard
    • 235 mm (9.25 in) standard
    • 273 mm (10.75 in) standard
    • 324 mm (12.75 in) standard
    • 340 mm (13.375 in) standard
  • Tool Groups (select One)
    • 219 mm (8.625 in)
      – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
    • 235 mm (9.25 in)
      – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
    • 273 mm (10.75 in)
      – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
    • 324 mm (12.75 in)
      – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
    • 340 mm (13.375 in)
      – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
  • Variable Grip Hydraulic Breakout Wrench (select One)
    • Grip range
      – 219, 235, 273 mm (8.625, 9.25, 10.75 in)
    • Grip range
      – 324, 340 mm (12.75, 13.375 in)
  • Drill Pipe – 9.9 M (32.5 Ft) Length
    • No pipe thread greaser
  • Tricone Bits Group (select One)
    • Hydraulic bit basket
  • Service Packages/fluid System
    • Standard fast fill for fuel and water only, automated lubricant system
  • Climate/regional Considerations
    • Air receiver tank low pressure (ASME/CRN/AU) or
    • Air receiver tank low pressure (CE)
    • Four (4) batteries
    • Climate Level 1
      – Standard fluids and lubricants
      – With a temperature range of –1° C (30° F) to 52° C (125° F)
    • Certifications CE
  • Frame/deck
    • No tool storage box (cover only)
    • No jib crane (cover only)
  • Dust Suppression
    • Water injection only (no dust collector)
      – 2271 L (600 gal) tank below deck
  • Undercarriage (select One)
    • 750 mm (29.5 in) double grousers for hard rock applications or
    • 900 mm (35.4 in) double grousers for soft rock applications

Optional Equipment:

  • Cab
    • Premium cab
      – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass
      – Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat
    • Cab roof access system (includes ladders, cage and rails)
    • Lights for tram (front and cab)
  • Controls
    • Auto Drill Assist
      – Single pass auto drill
    • Auto Drill Assist
      – Multi pass auto drill
    • Manometer/pressure gauge
    • Remote tram
  • Product Link/terrain
    • Product Link (Satellite)
    • Product Link (Dual)
    • Terrain (Guidance)
  • Mast
    • Mast Access Arrangement
      – Includes steps, guardrails, landing platforms, and walkway
    • Drill pipe thread greaser
    • Tool Lubrication System
      – Rotary tricone, 113.5 L (30 gal)
    • Flashing beacon for mast clearance
    • Overhead winch assembly
      – Includes cable and hook plus remote
  • Top Sub/shock Sub (select One)
    • 219 mm (8.625 in) premium
    • 235 mm (9.25 in) premium
    • 273 mm (10.75 in) premium
    • 324 mm (12.75 in) premium
    • 340 mm (13.375 in) premium
  • Drill Pipe – 9.9 M (32.5 Ft) Length
    • 219 mm (8.625 in) diameter
    • 235 mm (9.25 in) diameter
    • 273 mm (10.75 in) diameter
    • 324 mm (12.75 in) diameter
    • 340 mm (13.375 in) diameter
    • Pipe thread greaser
  • Tricone Bits Group (select One)
    • 9.875 in (251 mm) tricone bit
    • 10.625 in (270 mm) tricone bit
    • 12.25 in (311 mm) tricone bit
    • Bit lock plate 251 mm (9.875 in)
    • Bit lock plate 270 mm (10.625 in)
    • Bit lock plate 311 mm (12.25 in)
    • Bit lock plate 349 mm (13.75 in)
    • Bit lock plate 381 mm (15 in)
  • Service Tools
    • Lifting bail 152 mm (6 in) BECO for 194‑235 mm (7.625-9.25 in) pipe
    • Lifting bail 203 mm (8 in) BECO for 273‑324 mm (10.75-12.75 in) pipe
    • Lifting bail 254 mm (10 in) BECO for 340 mm (13.375 in) pipe
    • Lifting bail 168 mm (6.625 in) API regular thread for 251-349 mm (9.875‑13.75 in) tricone bit
    • Lifting bail 178 mm (7.0 in) API regular thread for 381 mm (15 in) tricone bit
    • Bushing retainment tool (8.625-10.75 in pipe) (6 in, 7 in and 7.8 in flats)
    • Bushing retainment tool (12.75-13.378 in pipe) (10.5 in and 11.38 in flats)
  • Service Packages/fluid System
    • Premium with Service Center for lubricant drain and fill; automated lubricant system, fast fill fuel and water
  • Climate/regional Considerations
    • Six (6) batteries (required for autonomy packages)
    • Climate Level 2
      – Arctic fluids and lubricants
      – Temperatures down to –18° C (–0.4° F)
  • Frame/deck
    • Tool storage box
    • Jib crane pedestal only
    • Blowdown lines and nozzle (with quick connect cooler end and drill deck)
  • Dust Suppression
    • Water injection and dust collector
      – 2271 L (600 gal) tank below deck
      – 204 m³/min (7,200 ft³/min) dry dust collection
    • High capacity water injection
      – 5299 L (1,400 gal)
      • 2271 L (600 gal) below-deck mounted tank and a 3028 L (800 gal) above deck mounted tank
    • Dust curtain hydraulic lifters
      – Front and rear dust curtains (recommended with dust collector)
    • Tram-off Spray System
