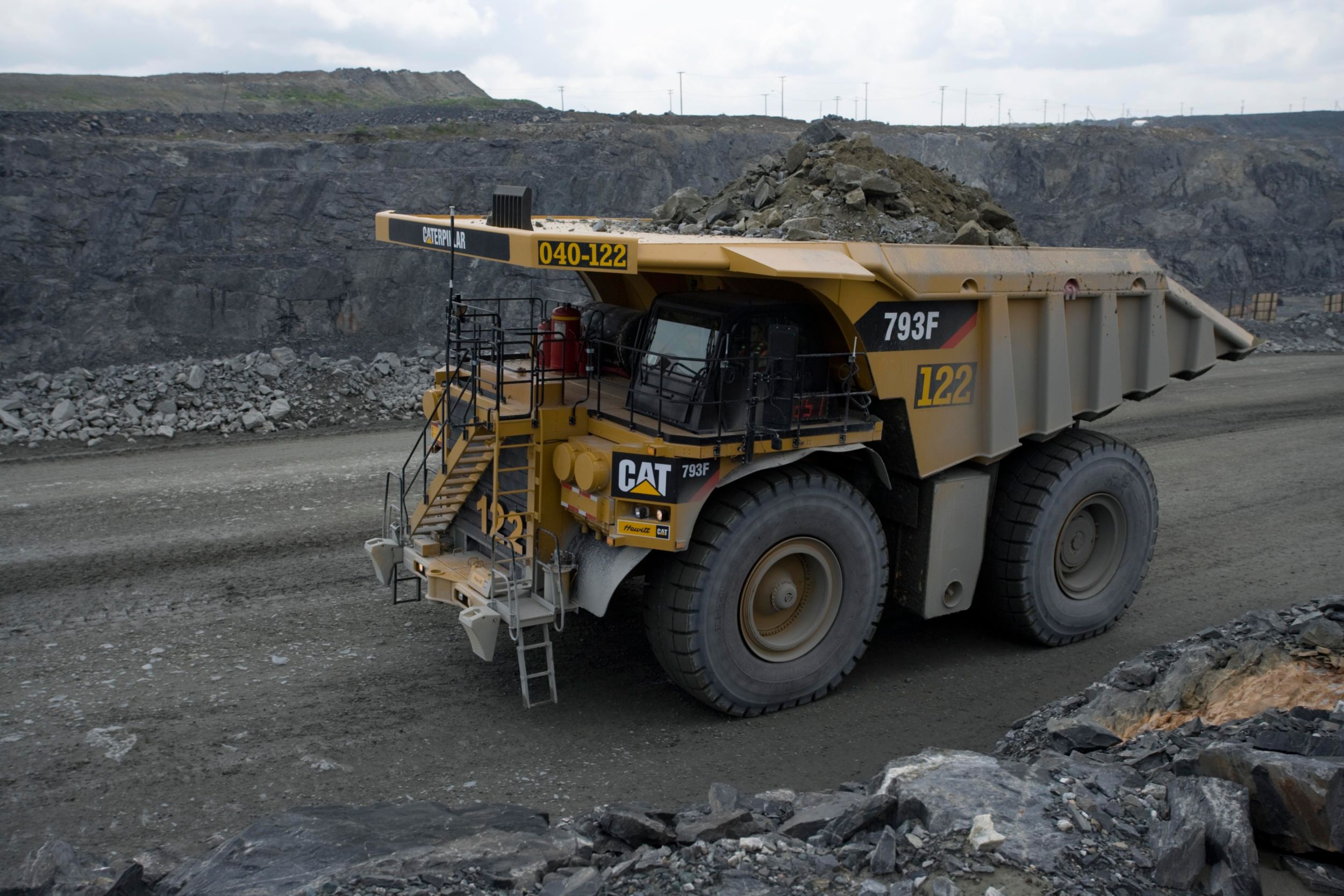

| Body Weight | 67682lb |
|---|---|
| Chassis Weight | 265639lb |
| Nominal Rated Payload | 256ton (US) |
| Note (1) | Consult your tire manufacturer for maximum tire load |
| Note (2) | Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires. |
| Note (3) | Refer to the Cat Mining Truck 10/10/20 Overload Policy for maximum gross machine weight limitations. |
| Rated Gross Machine Weight | 851000lb |
| Bore | 6.9in |
|---|---|
| Displacement | 5187in³ |
| Emissions | Fuel Optimized |
| Engine Model | Cat® C175-16 |
| Gross Power - SAE J1995 | 2650HP |
| Net Power - SAE J1349 | 2478HP |
| Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. |
| Note (2) | EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Rated Speed | 1750r/min |
| Stroke | 8.7in |
| Note | Quick Change Rims optional. |
|---|---|
| Note (1) | Extended life wheel stations optional. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities. |
| Rims | 29" or 32" |
| Standard Tires | 40.00 R57 |
| Effective Cylinder Stroke - Front | 5.1in |
|---|---|
| Effective Cylinder Stroke - Rear | 4.2in |
| Rear axle - Oscillation | ±4.9 degrees |
| Type | Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments |
| Front Wet Disc Brake Surface Area | 13921in³ |
|---|---|
| Load Brake | Rear service brakes |
| Note | Anti-Lock Brake System (ABS) optional with CMD package |
| Parking Brakes | Four-corner, Multi-disc, Spring Applied, Hydraulically Released |
| Rear - Wet Disc Brake Surface Area | 20847in³ |
| Service Brakes | Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated |
| Standards | (Service and Secondary): ISO 3450:1996 |
| Body Lower Time - Float | 20s |
|---|---|
| Body Power Down - High Idle | 17.5s |
| Body Raise Time - High Idle | 19s |
| Pump Flow - High Idle | 224gal/min |
| Relief Valve Setting - Raise | 2955psi |
| Type | Twin, two-stage hydraulic cylinders with snubbing valve |
| Air Conditioning | Air Conditioning (HFC - 134A refrigerant): 24,300 Btu/hr |
|---|---|
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II criteria. |
| Heater / Defroster | 38900Btu/h |
| Note | Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning. |
| ROPS Standards (1) | The operator sound pressure level, 76 dB(A), complies with ISO 6394 and ISO 6396. |
| ROPS Standards (2) | ROPS (Rollover Protective Structure) meets ISO 3471:1994 criteria. |
| Brake Hoist System - Includes Tank | 347gal (US) |
|---|---|
| Cooling System | 284gal (US) |
| Crankcase | 82gal (US) |
| Diesel Exhaust Fluid Tank | 62gal (US) |
| Fuel Tank | 750gal (US) |
| Fuel Tank - Optional | 1300gal (US) |
| Note (1) | DEF Tank only available for EPA Tier 4 engine option. |
| Rear Axle - Housing | 260gal (US) |
| Steering System - Including Tank | 77gal (US) |
| Torque Converter - Transmission Sump | 27gal (US) |
| Torque Converter/Transmission System - Including Sump | 55gal (US) |
| Heaped (SAE 2:1)* | 162-191 m³ (212-250 yd³) |
|---|---|
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Note (2) | *ISO 6483:1980 |
| Struck | 112.6-151 m³ (147-197.5 yd³) |
| Front Axle - Empty | 48% |
|---|---|
| Front Axle - Loaded | 33% |
| Rear Axle - Empty | 52% |
| Rear Axle - Loaded | 67% |
| Forward - 1 | 8mile/h |
|---|---|
| Forward - 2 | 10.8mile/h |
| Forward - 3 | 14.8mile/h |
| Forward - 4 | 19.9mile/h |
| Forward - 5 | 27.1mile/h |
| Forward - 6 | 37.3mile/h |
| Reverse | 7.3mile/h |
| Top Speed - Loaded | 37.3mile/h |
| Differential Ratio | 1.8:1 |
|---|---|
| Planetary Ratio | 16:1 |
| Total Reduction Ratio | 26.8:1 |
| Brake Surface - Front | 13921in² |
|---|---|
| Brake Surface - Rear | 20847in² |
| Standards | J-ISO 3450 JAN88, ISO 3450:1996 |
| Heaped (SAE 2:1) | 159-190 m3 (209-250 yd3) |
|---|---|
| Note | Contact your local Cat dealer for body recommendation. |
| Struck | 112-142 m³ (146-186 yd³) |
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II FOPS criteria. |
|---|---|
| ROPS Standards | ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:1994 ROPS criteria. |
| Sound Standards | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 76 dB(A) for cab offered by Caterpillar, when properly installed and maintained and tested with doors and windows closed. |
|---|---|
| Sound Standards (1) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
| Steer Angle | 36° |
|---|---|
| Steering Standards | SAE J15111 OCT90, ISO 5010:1992 |
| Turning Diameter - Front | 93.2ft |
