* High lift, 60/65-51 BFOR (311-1938), standard cooling, 13.8 m3 (18.0 yd3) bucket (496-9912).
Articulation Angle
43°

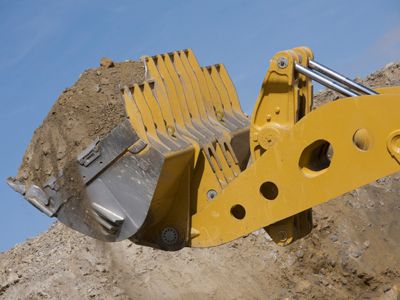

Buckets
Bucket Capacities
12.2-23.7 m3 (16.0-31.0 yd3)
Transmission
Transmission Type
Cat Planetary Power Shift
Forward - 1
4.2mile/h
Forward - 2
7.4mile/h
Forward - 3
12.7mile/h
Reverse - 1
4.7mile/h
Reverse - 2
8.1mile/h
Reverse - 3
13.9mile/h
Direct Drive - Forward 1
Lock-up disabled
Direct Drive - Forward 3
14.1mile/h
Direct Drive - Reverse 3
15.6mile/h
Direct Drive - Forward 2
8mile/h
Direct Drive - Reverse 1
4.9mile/h
Direct Drive - Reverse 2
8.8mile/h
Note
50/65-51 BFOR (311-1938), calculated speeds.
Axles
Front
Fixed
Rear
Trunnion
Oscillation Angle
10 degrees
Service Refill Capacities
Fuel Tank
573.3gal (US)
Cooling System
80.2gal (US)
Crankcase
31.7gal (US)
Transmission
52gal (US)
Hydraulic System - Tank Only
146gal (US)
Hydraulic System Factory Fill
230gal (US)
Differential - Final Drives - Front
127.3gal (US)
Differential - Final Drives - Rear
127.3gal (US)
Note
High Lift configuration.
Hydraulic Cycle Times
Lower
3.8s
Note
High Lift configuration, calculated speeds.
Dump
1.8s
Lower Float Down
3.1s
Rack Back
2.4s
Raise
9.2s
Total Hydraulic Cycle Time
17.2s

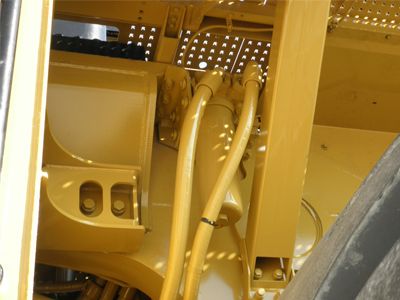

Hydraulic System - Steering
Relief Valve Setting - Steering
5000psi
Maximum Flow at 1,985 rpm (6900 kPa/1,000 psi)
133gal/min
Steering System - Circuit
Closed
Steering System - Pump
Piston, variable displacement
Total Steering Angle
86°
Sound
Dynamic Operator Sound Pressure Level (ISO 6396:2008)
70dB(A)
Operator Sound Pressure - ANSI/SAE J1166 FEB08
72dB(A)
Note (1)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated wi
Note (2)
The machine sound power level is 116 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (3)
The machine sound power level is 113 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the sound suppressed machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan s
Hydraulic System - Lift/Tilt
Maximum Flow at 1,650 rpm
311gal/min
Cylinders - Lift/Tilt
Double-acting
Lift Cylinder - Bore
10.5in
Note
High Lift configuration.
Lift Cylinder - Stroke
66.2in
Lift/Tilt System - Circuit
Positive Flow Control
Lift/Tilt System - Pump
Variable Piston
Relief Valve Setting - Lift/Tilt
4200psi
Tilt Cylinder - Bore
9.3in
Tilt Cylinder - Stroke
40.9in
Engine - Tier 2 Equivalent
Bore
5.7in
Displacement
1959in³
Emissions
U.S. EPA Tier 2 Equivalent
Engine Model
Cat C32 with ACERT Technology
Gross Power - SAE J1995
1041HP
Net Power - EEC 80/1269
973HP
Net Power - ISO 14396
1024HP
Net Power - ISO 9249
973HP
Net Power - SAE J1349
964HP
Peak Torque - 1,250 rpm
4034ft-lb
Rated Speed
1800r/min
Stroke
6.4in
Torque Rise
33%
Note
Standard ambient cooling.
Engine - Tier 4 Final
Bore
5.7in
Displacement
1959in³
Emissions
U.S. EPA Tier 4 Final
Engine Model
Cat® C32 with ACERT™ Technology
Gross Power - SAE J1995
1039HP
Net Power - EEC 80/1269
973HP
Net Power - ISO 14396
1024HP
Net Power - ISO 9249
973HP
Net Power - SAE J1349
964HP
Peak Torque - 1,250 rpm
4034lb/ft
Rated Speed
1800r/min
Stroke
6.4in
Torque Rise
33%
Note
Standard ambient cooling.
Standard Equipment:
Note
Standard and optional equipment may vary. Consult your Cat dealer for details.
Power Train
Brakes, oil-cooled, multi-disc, service/secondary
Case drain filters
Demand fan
Driveline parking brake
Engine, Cat C32 ACERT
Fuel priming pump (electric)
Ground level engine shutoff
Precleaner, engine air intake (above hood)
Radiator
Starting aid, ether, automatic
Throttle lock, electronic
Torque converter, Impeller Clutch (ICTC) with Rimpull Control System
Transmission, planetary powershift, 3F/3R electronic control
Electrical
Alarm, back-up
Alternator, 150-amp
Batteries, maintenance free, 4 – 1,400 CCA
Deutsch terminal connectors
Diagnostic connector starting and charging system
Electrical system, 24 volt
Electronic Service Center
Electronic transmission control
Lighting system, halogen (front and rear) lighting, access stairway
Starter and charging system, 24V
Starter receptacle for emergency start
Starter and transmission lockouts (bumper)
Operator Environment
Advisor Display, displays real time operating information, performs calibrations and customizes operator settings
Air conditioner
Air precleaner
Cab, sound suppressed and pressurized, separate external rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 10-amp) and power port
Cigar lighter, ashtray
Coat hook
Controls, lift and tilt function
Digital display on center console: – Gear – Ground speed – Machine hours
Heater, defroster
Horn, electric
Instrumentation, gauges: – Coolant temperature – Fuel level – Hydraulic oil temperature – Power train oil temperature – Tachometer
Light, cab, dome
Lunchbox, beverage and manual holders
Mirrors, rearview (externally mounted)
Rimpull Control System

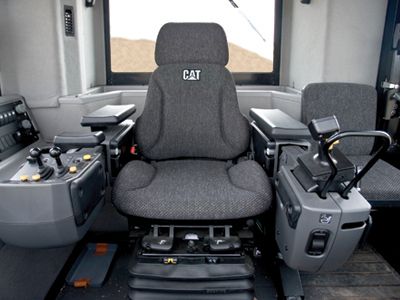

Seat, Cat Comfort (cloth), air suspension, six-way adjustable
Seat, trainer with lap belt, 76 mm (3 in) wide
Seat belt, retractable, 76 mm (3 in) wide
STIC Control System
Transmission gear indicator
Vital Information Management System (VIMS) with Advisor Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System
Wet-Arm wipers/washers (front and rear): – Intermittent front and rear wipers
Other
Automatic bucket leveler
Automatic lift and lower bucket kickout
Axle ecology drain
Bumper service center
Deluxe filtration
Emergency platform egress
Front walkway
Fuel, fast fill system
Grouped hydraulic pressure ports
Guards, crankcase and power train
Hitch, drawbar with pin
Implement and steering ecology drains
Implement lock lever, cab
Linkage pins, maintenance free
Oil sampling valves
Positive Flow Control implement system
Product Link™
Rims
Service center with ground level electrical and fluid connections
Sight gauges for steering, implement and transmission oil
Stairway, left and right rear access
Starter lockout, bumper
Steering and transmission lock lever, cab
Steering, load sensing
Toe kicks
Transmission lockout, bumper
Optional Equipment:
Note
Standard and optional equipment may vary. Consult your Cat dealer for details.
