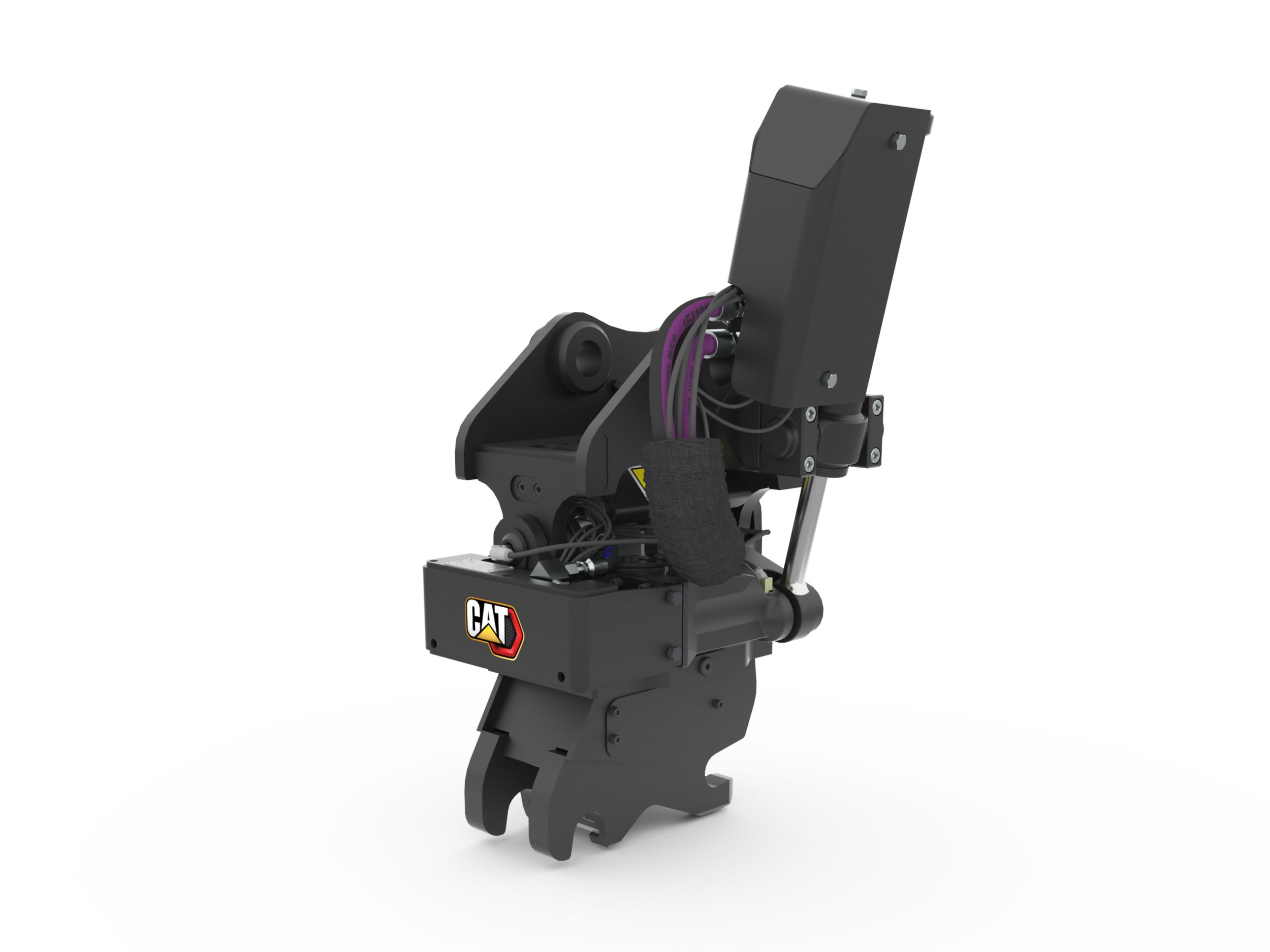

TRS4 Pin On (Pin Grabber Coupler) / Pin Grabber Coupler Tiltrotator For 3-4 Ton Mini Excavators in North Carolina

  • Home
  • New Equipment
  • TRS4 Pin On (Pin Grabber Coupler) / Pin Grabber Coupler Tiltrotator For 3-4 Ton Mini Excavators
    • Back to Home

    Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

    Pricing: Contact for Pricing

    Request a New Equipment Quote

    Fill out this form below and we will get back to you within 1 to 2 business days! Alternatively, give us a call at 833-286-3561


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Request a quote Request Machine Walkaround
      $ Payment Calculator Shop Parts A B Competitive Comparison

      Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

      Pricing: Contact for Pricing

      Request a quote

      Request a New Equipment Quote

      Fill out this form below and we will get back to you within 1 to 2 business days! Alternatively, give us a call at 833-286-3561


        This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

        Request Machine Walkaround
        $ Payment Calculator Shop Parts A B Competitive Comparison
        Compatibility Only compatible with the following Mini Excavator model serial number prefixes: 303 (MY3 1 & up) | 303.5 (CE9 1 & up) | 304 (AN4 1 & up)
        Interface Options: Top-Bottom Pin On (Pin Grabber Coupler) / Pin Grabber
        Length 19.2in
        Machine Class 3-4 Ton Mini Excavator
        Maximum Bucket Capacity 3.9ft³
        Maximum Bucket Width 39.4in
        Maximum Operating Pressure 3045.8psi
        Optimal Hydraulic Flow 17-25 L/min (4.5-6.7 gpm)
        Overall Height 30.4in
        Overall Width 17.9in
        Required Hydraulics 1st Auxiliary
        Rotation Speed 7 Seconds per 1 full rotation
        Tilt Angle Range 40° Left/Right
        Tilting Torque 4277.9lb/ft
        Turning Torque 1253.9lb/ft
        Weight 269lb
