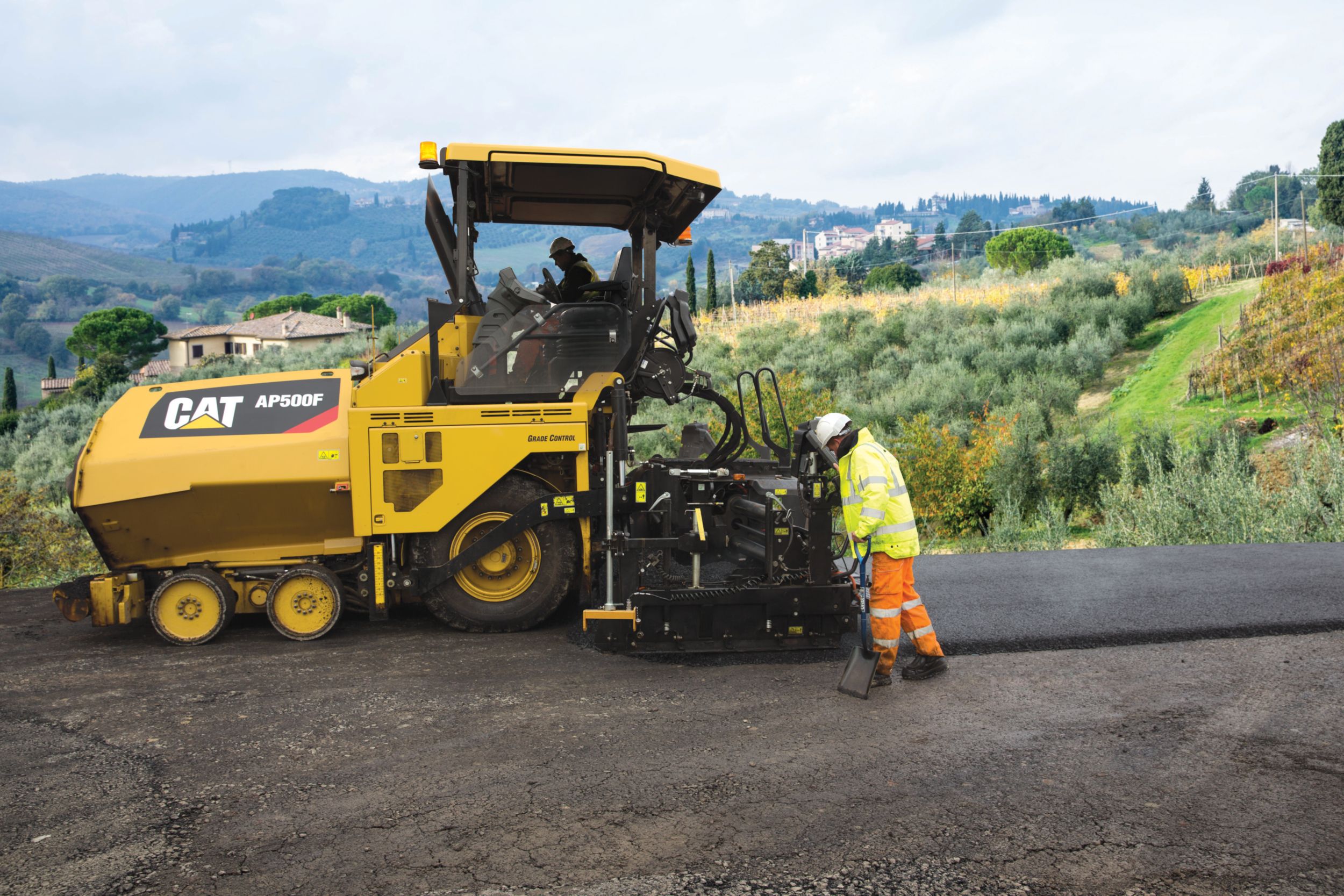

AP500F Wheel Paver

Back to Home

The AP500F is a mid-sized wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects.

Request a quote
Engine Model Cat C4.4 with ACERT
Gross Power 142HP
Hopper Capacity 219ft³
Inside Turn Radius 1.15ft
Maximum Paving Speed - With Tamper Bar Screed 82ft/min
Maximum Paving Speed - With Vibratory Screed 250ft/min
Maximum Paving Width - SE50 V 21.3ft
Maximum Paving Width - SE50 VT 21.3ft
Maximum Throughput Capacity 1288tonnes/hr
Maximum Travel Speed 10mile/h
Standard Paving Range - SE50 V, SE50 VT 2.55 - 5.0 m (8' 4" - 16' 4")
Operating Weight - Paver Only 29020lb
Operating Weight - SE50 V Screed only 7239lb
Operating Weight - SE50 VT Screed only 7695lb
Shipping Weight - Paver Only 28599lb
DEF Tank 5gal (US)
Fuel Tank Capacity 47gal (US)
