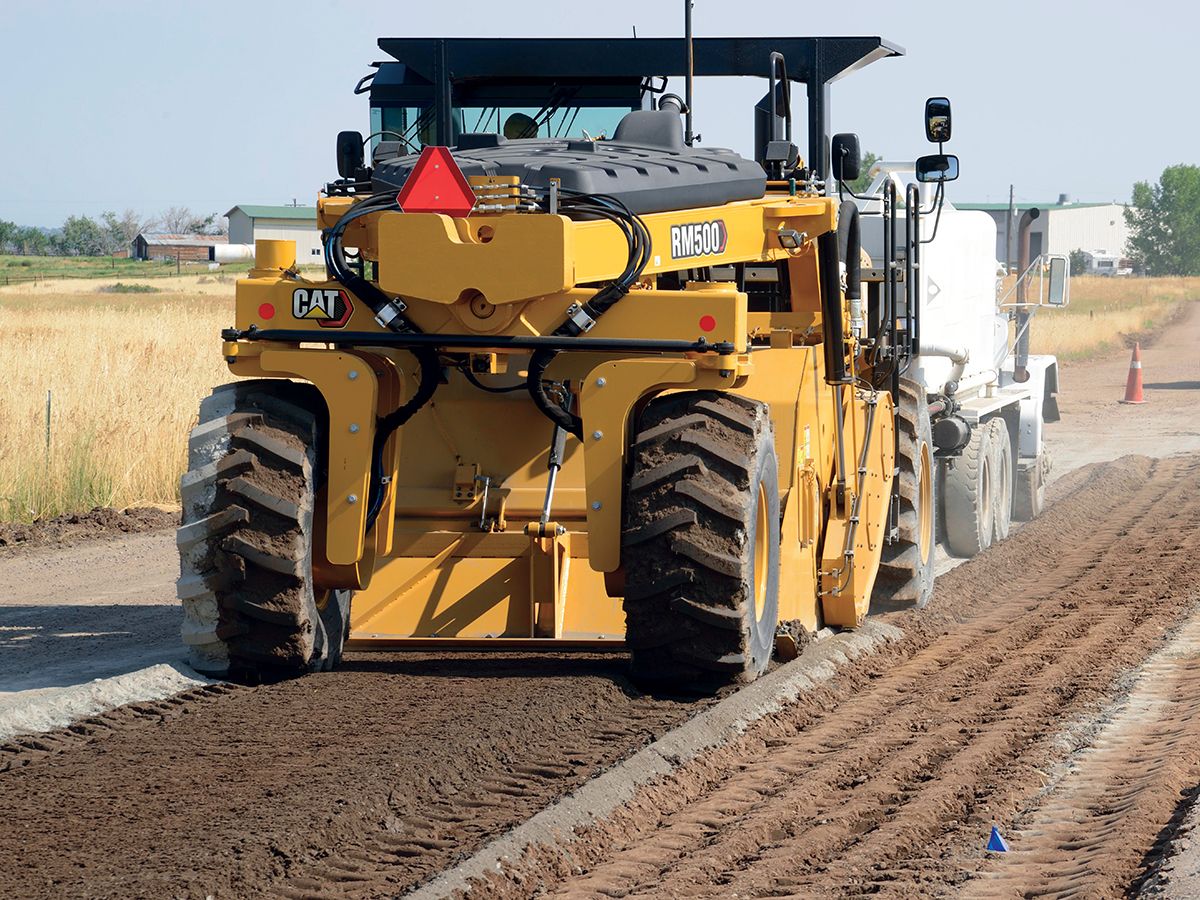

RM500 Road Reclaimer

Maximum Operating Weight	69518lb
Note (1)	Maximum weight includes base machine, all options, ROPS, cab, coolant, lubricants, Universal 16 rotor, full fuel tank,full water tank and 75 kg (165 lb) operator.
Note (2)	Operating weight includes base machine, no options, ROPS, cab, coolant, lubricants, Universal 16 rotor, 50% full fuel tank,50% full water tank and 75 kg (165 lb) operator
Operating Weight	62920lb

Cutting/Mixing Width	96in
Inside Turn Radius	14.2ft
Maximum Cutting/Mixing Depth	20in
Maximum Travel Speed	6.5mile/h
Note (1)	Maximum cutting/mixing depth varies by rotor.
Rotor Drive	3-Speed Chain
Rotor Options	Universal 16, Universal 18, Combination, Soil (Stabilization)
Rotor Speeds	110 / 152 / 205 rpm

Build Number	02A
Emissions	U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Engine Model	Cat® C15
Engine Power	539hp
Gross Power	546hp

Ground Clearance	19.9in
Length	33.83ft
Maximum Height	11.78ft
Wheel Base	21.33ft
Width	9.58ft

Cooling Systems	18.5gal (US)
DEF Tank	12.2gal (US)
Engine Oil	13.7gal (US)
Fuel Tank Capacity	279gal (US)
Hydraulic Tank	59.2gal (US)

Recyclability	97%

Standard Equipment:

Standard and optional equipment may vary. Consult your Cat dealer for details.

Adjustable armrests
Heated suspension seat
180° rotating operating station
Audio-ready with speakers
Full width sliding cab with heat and air conditioning
Access ladder, right and left side
High visibility retractable seat belt
Mini-wheel steering control
Multifunction propel lever
Steering guides
LCD touch screen operator interface

Air to Air Aftercooler (ATAAC)
Dual element air cleaner with pre-cleaner
Extended life coolant with protection to -37 degrees C (-35 degrees F)
On-demand fan with auto-reversing function
Four steering modes
All-Wheel Drive
Electronic differential
Oil-bath brake system
Powertrain guard

150 amp alternator
24-volt charging system
Automotive-type fuse system
Remote start/charge receptacle
Two 1365 CCA maintenance-free batteries

Maintenance-free drive shafts
Self-lubricating roller chain and bearings
Shear disk driveline protection
Automatic Return-to-cut
Powershift 3-speed transmission
Three rotor speeds
Variable volume mixing chamber

Grouped filters with ground level access
Cat Product Link^™ - Cellular
Remote access drains
Ports for Scheduled Oil Sampling (S·O·S℠)
Fluid level sight gauges
Toolbox

Back-up alarm
Remote cameras (front, rear and rear rotor chamber door)
Ground level emergency shutdown switch
Horn (front and rear)
ROPS
Platform handrails and guardrails
Mirrors
Halogen working lights

Optional Equipment:

Standard and optional equipment may vary. Consult your Cat dealer for details.

Cat Bio HYDO^™ biodegradable hydraulic oil
CE certificate

Water spray system
Ultra Low-flow water spray system
Emulsion spray system
Folding telescoping push bar

Torque limiter driveline protection
Rotor - Universal 16
Rotor - Universal 18
Rotor - Combination
Rotor - Soil (Stabilization)
Material sizing breaker bar
Bolt-on counterweight - 1600 kg (3500 lb)

Additional toolbox

Roading lights
Folding LED safety beacon
