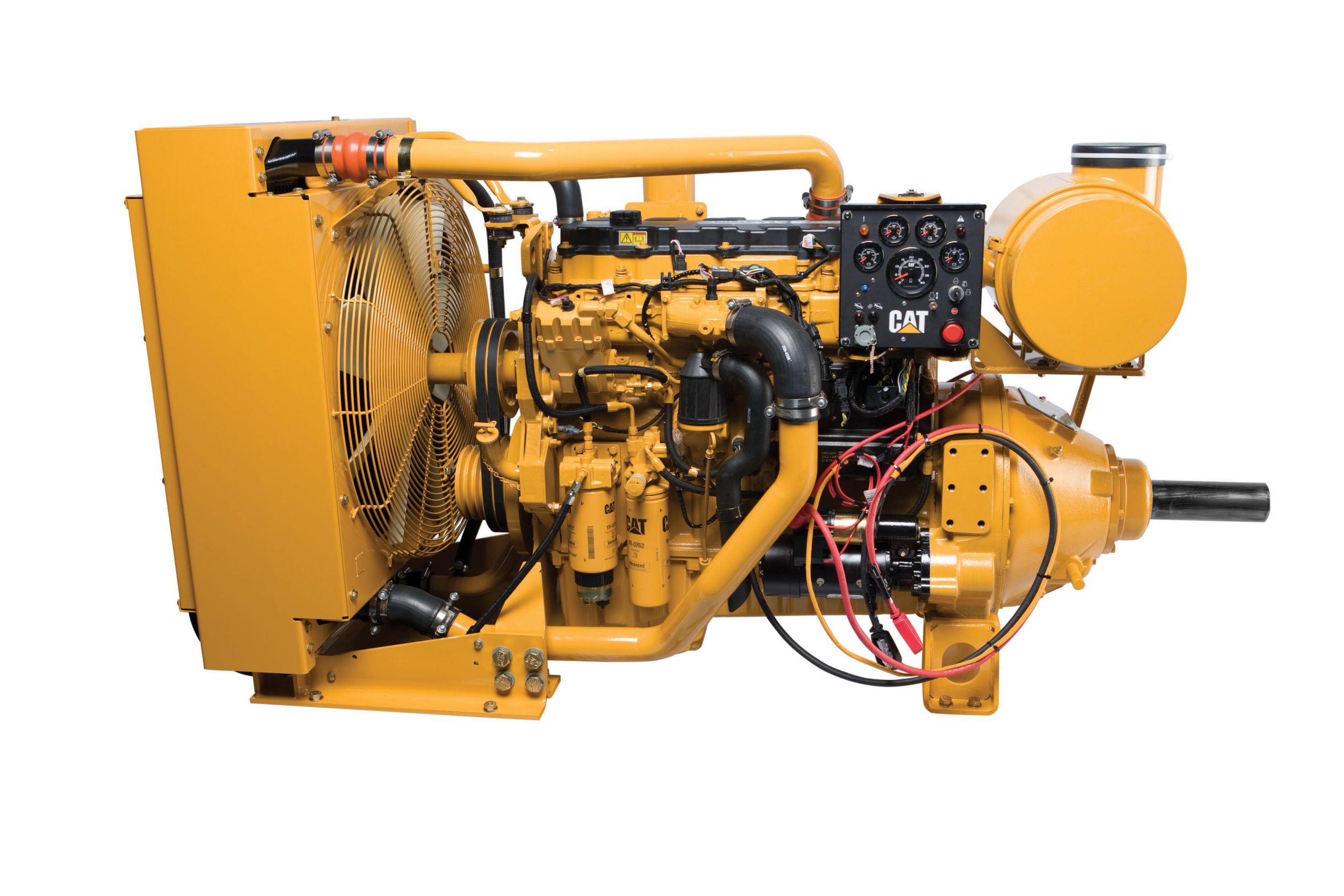

Cat® C9 Industrial Power Unit

Maximum Power	350HP
Minimum Power	275HP
Rated Speed	1800-2200 rpm

Emissions	China Stage II, U.S. EPA Tier 2 Equivalent or U.S. EPA Tier 3 Equivalent, EU Stage II Equivalent or EU Stage IIIA Equivalent

Aftertreatment	-
Aspiration	Turbocharged Aftercooled (TA)
Bore	4.4in
Compression Ratio	16.3:1
Displacement	537in³
Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Rotation from Flywheel End	Counterclockwise
Stroke	5.9in

Height	79.1in
Length	85.8in
Weight	3285lb
Width	38.9in

Standard Equipment:

Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM^™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels And Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- HEUI^™ injection
- Fuel filter, secondary (2 micron)
- ACERT^™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request

Optional Equipment:
