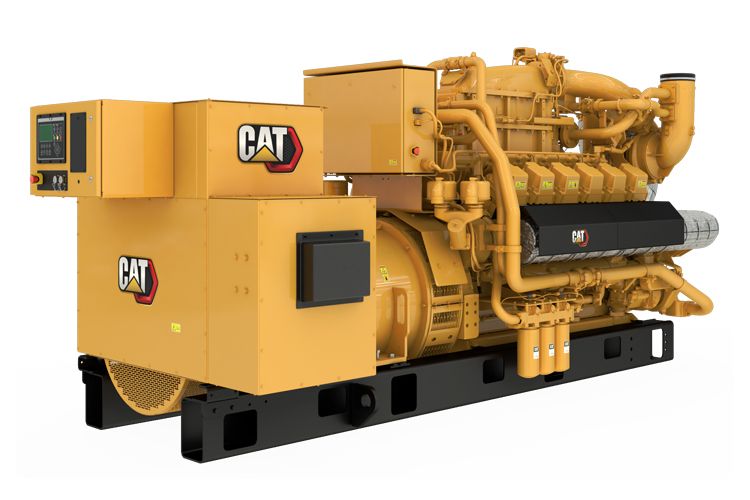

G3512E Gas Generator Set

Standard Equipment:

• Air Inlet

  • Two-element single-stage air cleaner with enclosure and service indicator

• Control Panel

  • EMCP 4.3

• Cooling

  • Jacket water and SCAC engine-driven pumps
  • Jacket water and SCAC thermostats

• Exhaust

  • Dry exhaust manifolds, insulated and shielded
  • Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
  • Cat-flanged face outlet on turbocharger

• Fuel System

  • Engine-installed electronic control valve
  • 24V DC energized-to-run (ETR) gas shutoff valve
  • Gas pressure regulator

• Fuel System

  • Electronic fuel metering valve
  • Throttle plate, 24V DC actuator, controlled by GECM
  • Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve

• General

  • Paint- Caterpillar Yellow except rails are gloss black
  • Parts book
  • Crankshaft vibration damper and guard
  • Operation and maintenance manuals
  • RH Service

• Generator

  • SR4B
  • Permanent Magnet Excitiation
  • Caterpillar's Digital Voltage Regulator (CDVR) including reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, and a min/max exciter
  • Anti-condensation space heater
  • Winding temperature detectors
  • NEMA Class H insulation

• Governing System

  • ADEM A4

• Ignition System

  • Electronic Ignition System (controlled by GECM)
  • Individual Cylinder Detonation Sensitive Timing (DST)

• Starting/charging

  • Electric Starter

Optional Equipment:

• Air Inlet

  • Mounting brackets and piping
  • Air cleaner with precleaner

• Circuit Breakers

  • Frame mounting
  • Right, left, rear mounted
  • 3-pole (IEC 947-2 rated)
  • 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
  • S LSI, G LSIG, P LSIG-P, 4th Digit Type
  • 1200A, 3 Pole, UL-100% Rated P-Frame Circuit Breakers
  • 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
  • 2000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers

• Cooling

  • Remote radiator for JW and SCAC circuits, level switch included but not wired
  • Coolant level drain line with valves, fan with guard
  • Inlet/Outlet connections

• Control Panel

  • Local alarm module
  • Remote annunciator
  • Local PC monitoring
  • Remote PC monitoring
  • Engine failure relay

• Exhaust

  • 305 mm (12 in.) Flange
  • 250mm-329mm Flange Expander
  • Flexible fittings

• Fuel System

  • Remote mounted gas train, sized for 31.5 MJ/Nm3 (800 btu/cu ft) dry pipeline natural gas with inlet pressure range of 19.2 to 48.3 kPa (2.78 to 7 psi).

• General

  • US AID emblem
  • Special paint order
  • Tool set
  • Digital diagnostic tool

• Generator

  • Cable access box
  • Bearing temperature detectors
  • Generator air filter
  • European bus bars

• Starting/charging

  • 24V starting motors
  • Battery with cables and rack (shipped loose)
  • Jacket water heater
  • 45A, 24V charging alternator (requires engine driven pumps)
  • 20A, 24VDC battery charger
