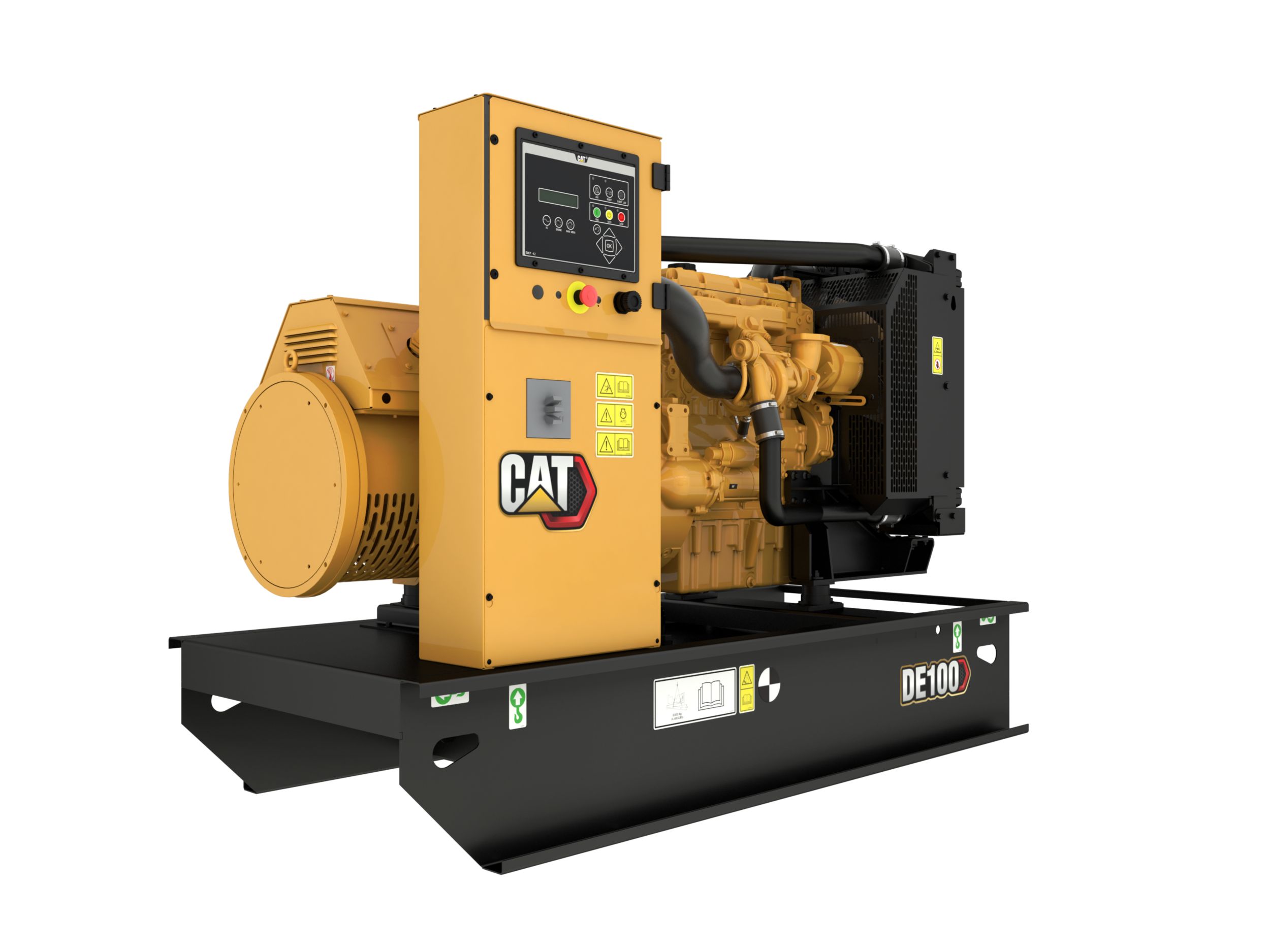

DE100AE0 (50 Hz) Generator Set
Generator Set Specifications
- Maximum Rating
-
88.0 kVA
- Minimum Rating
-
80.0 kVA
- Emissions/Fuel Strategy
-
Non-Certified Emissions
- Voltage
-
220 to 380 Volts
- Frequency
-
50 Hz
- Speed
-
1500 rpm
- Duty Cycle
-
Standby, Prime
Engine Specifications
- Engine Model
-
Cat® C4.4
- Bore
-
4.1in
- Stroke
-
5in
- Displacement
-
268.5in³
- Compression Ratio
-
17.25:1
- Aspiration
-
Turbocharged
- Fuel System
-
Direct Injection
- Governor Type
-
Mechanical
Generator Set Dimensions
- Length - Maximum
-
73.6in
- Width - Maximum
-
840mm
- Height - Maximum
-
52.5in
- Dry Weight - Genset (maximum)
-
1019lb
Standard Equipment:
-
- Engine
-
- C4.4, Inline 4 Cylinder, 4 Stroke Diesel
-
- Control Panel
-
-
- Governing System
-
-
- Alternator
-
- GTA Frame Standard Alternator
-
- Fuel Storage
-
-
- Enclosure
-

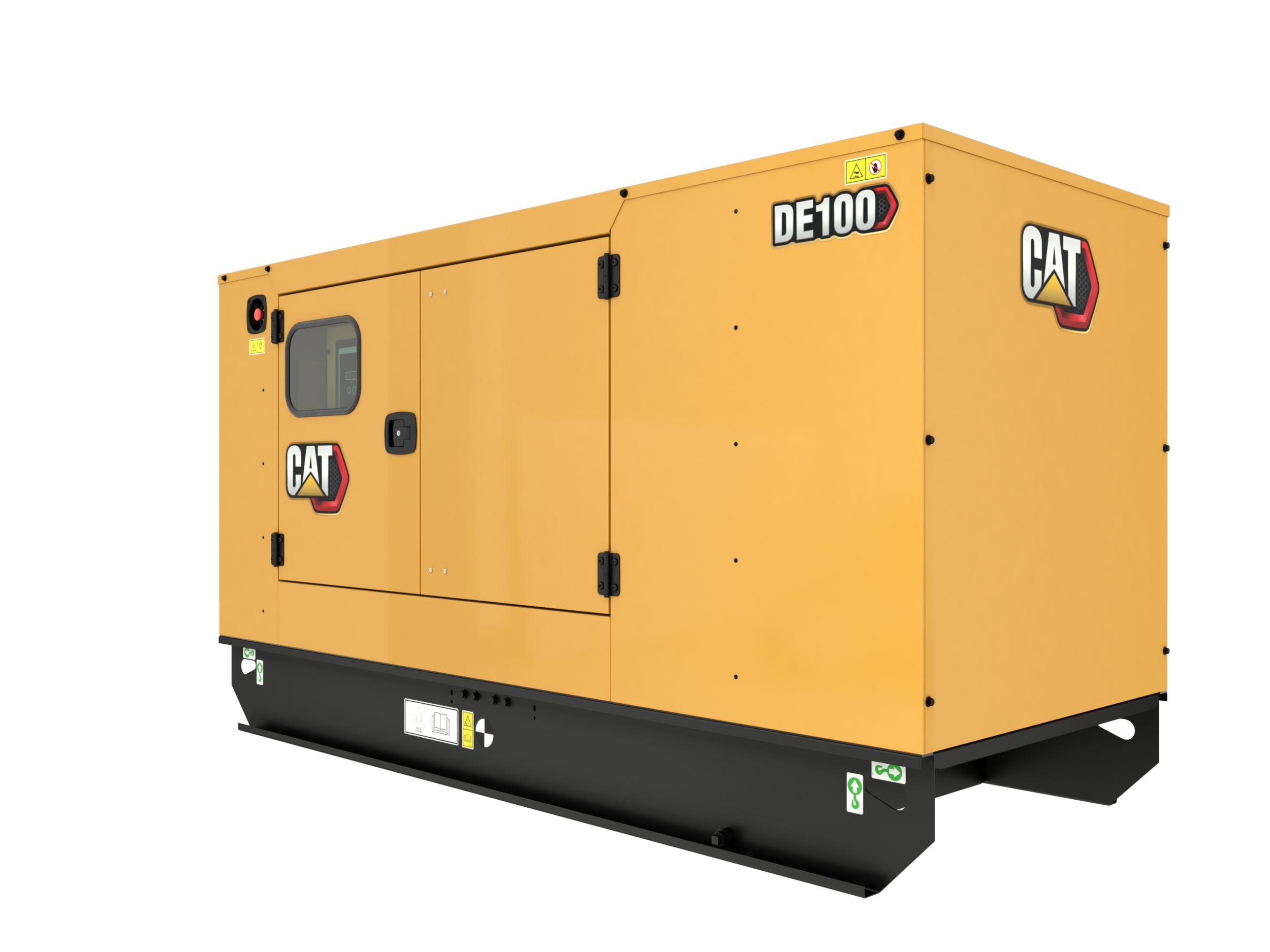

- Modular Easy Access Acoustic Enclosure
-
- Air, Cooling & Exhaust
-
-
- General
-
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment:
