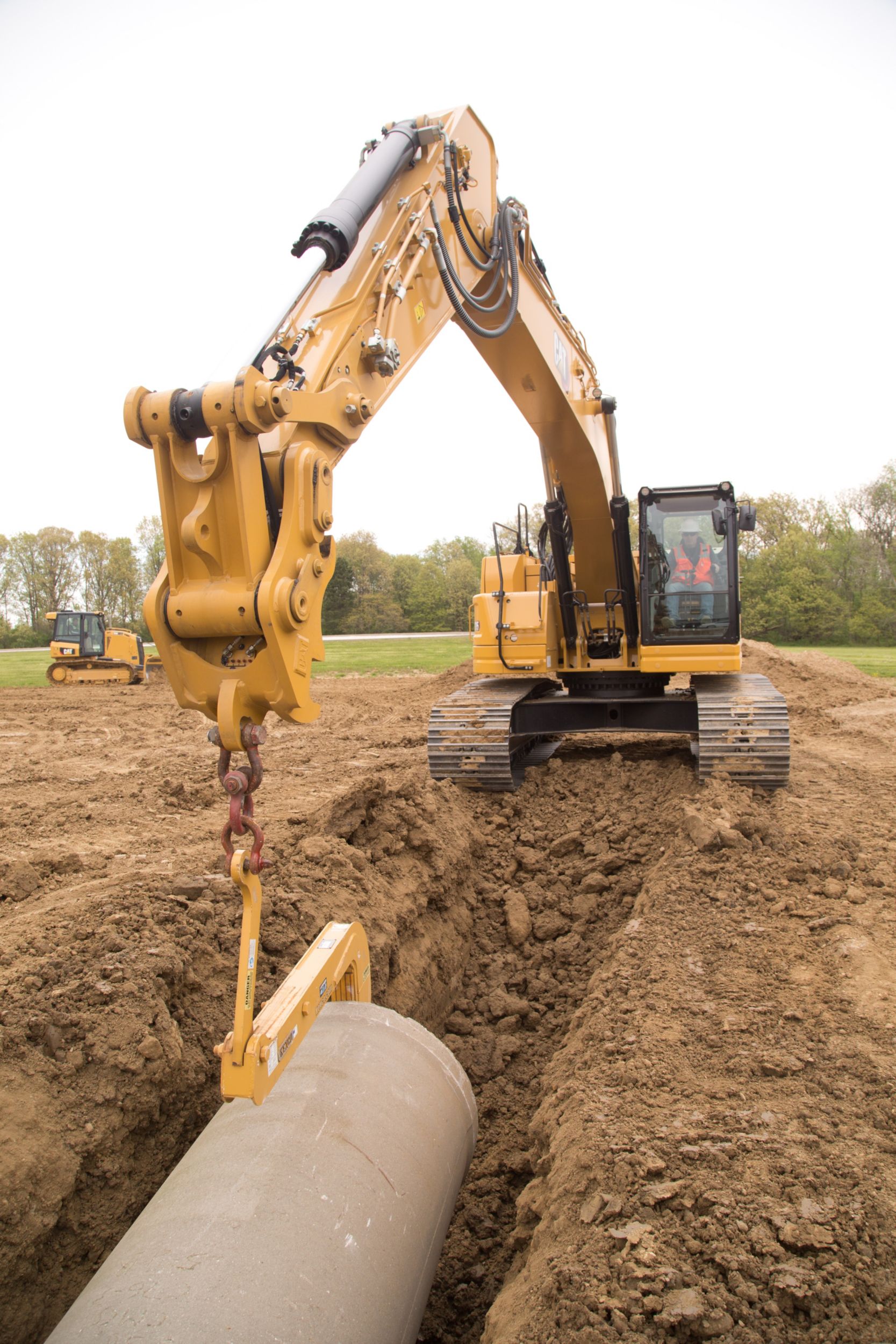

335 Excavadora hidráulica

The Cat® 335 Excavator brings high performance with simple-to-use technologies to boost operator efficiencies up to 45%. Combine these features with a compact radius design, a new cab, longer maintenance intervals, and a power system that is more efficient, and you have a low cost-per-unit of production excavator.

Request a quote
Bore 4in
Desplazamiento 428in³
Modelo de motor C7.1
Potencia del motor - ISO 14396 275HP
Net Power - ISO 9249 273HP
Golpe 5in
Peso operativo 77000lb
Boom Reach 6.15 m (20'2")
Bucket HD 1.54 m³ (2.01 yd³)
Fuerza de excavación de cubos - ISO 46482lbf
Altura máxima de corte 36,7 pies
Corte de profundidad máxima para el nivel de fondo de 2440 mm (8 pies) 22,5 pies
Profundidad máxima de excavación 22.11ft
Altura máxima de carga 26.1ft
Alcance máximo a nivel del suelo 34.11ft
Máxima profundidad de excavación de la pared vertical 19ft
Altura mínima de carga 9.7ft
Palo R3.2CB2 (10'6")
Fuerza de excavación de palos - ISO 32319lbf
Sistema principal - Flujo máximo 560 l/min (148 gal/min)
Presión máxima - Equipo 5075psi
Máxima presión - Balanceo 4175psi
Presión máxima - Viaje 5075psi
Par de giro máximo 79455ft·lbf
Velocidad de giro 10.8r/min
Sistema de refrigeración 3.3gal (US)
Tanque DEF 7gal (US)
Aceite de motor 6.6gal (US)
Final Drive - Cada uno 1.8gal (US)
Capacidad del tanque de combustible 97.2gal (US)
Sistema hidráulico - incluyendo el tanque 92.5gal (US)
Tanque hidráulico 40.7gal (US)
Swing Drive - Cada uno 2.9gal (US)
Boom Reach 6.15 m (20'2")
Bucket HD 1.54 m³ (2.01 yd³)
Liquidación del contrapeso 3.1ft
Despeje del terreno 1,7 pies
Altura del pasamanos 11.3ft
Length to Center of Rollers 13,3 pies
Altura de envío - Parte superior de la cabina 10.9ft
Longitud del envío 32.2ft
Palo R3.2CB2 (10'6")
Radio de giro de la cola 6.3ft
Medidor de vía 9ft
Longitud de la pista 18.1ft
Ancho de transporte 10.11ft
Recyclability 98%

Equipo estándar:

  • Nota
    • El equipo estándar y opcional puede variar. Consulte a su distribuidor Cat para obtener más detalles.
  • Boom And Sticks
    • 6.15 m (20'2") Reach boom
  • Taxi
    • Rollover protective structure (ROPS)
    • Air-adjustable seat with heat (Deluxe only)
    • Auto-adjustable seat with heat and air ventilation (Premium only)
    • High-resolution 254 mm (10 inch) LCD touchscreen monitor
  • La tecnología del gato
    • Enlace de productos para gatos
    • Remote Flash
    • Remote Troubleshoot
    • Cat Grade with 2D
    • Cat Assist
    • Carga de gato
    • 2D E-Fence
  • Sistema eléctrico
    • Maintenance-free batteries
    • LED chassis light, left-hand/right-hand boom lights, cab lights -1800 lumens
    • Interruptor de desconexión eléctrica centralizada
    • Programmable time delay working lights after engine shutdown
  • Motor
    • Cat C7.1 twin turbo diesel engine
    • Three selectable modes: Power, Smart, Eco
    • 52°C (126° F) high-ambient cooling capacity with derate
    • -18°C (0° F) cold start capability
    • Sealed double element air filter with integrated precleaner
    • 1 x 145 Amp. dual alternator
    • Bomba eléctrica de cebado de combustible
    • Hydraulic and reversible demand fan
    • Two-stage fuel filtration system with water separator and indicator
  • Sistema hidráulico
    • SmartBoom (Europe only)
    • Electric main control valve
    • Boom and stick regeneration circuits
    • Calentamiento del aceite hidráulico automático
    • Auto two-speed travel
    • Boom and stick drift reduction valve
    • Element type main hydraulic filter
  • Seguridad y protección
    • Rear- and right-side-view cameras
    • ISO 2867 right-hand handrail and hand hold
    • Service platform with anti-skid plate and countersunk bolts
    • Hydraulic lockout lever neutralizes all controls
    • Ground level-accessible secondary engine shutoff switch in cab
    • Signaling/warning horn
  • Servicio y mantenimiento
    • Sampling ports for Scheduled Oil Sampling (S.O.S)
    • Grouped location for engine oil and fuel filter
  • El tren de aterrizaje y las estructuras
    • Base frame with standard track rollers and HD carrier rollers
    • Grease lubricated track
    • ISO 15818 tie down points on base frame
    • Two-piece segmented track guiding guard

Equipo opcional:

  • Nota
    • El equipo estándar y opcional puede variar. Consulte a su distribuidor Cat para obtener más detalles.
  • Boom And Sticks
    • 3.2 m (10'6") Reach stick
    • 3.75 m (12'4") Reach stick
  • Taxi
    • Cat Stick Steer
    • Auxiliary relay
  • La tecnología del gato
    • Cat Grade with Advanced 2D
    • Cat Grade with 3D single GNSS
    • Cat Grade with 3D dual GNSS
  • Motor
    • -32° C (-25° F) cold start capability
  • Seguridad y protección
    • Cat Detect - People Detection
    • 360° visibility
    • Swing alarm
    • Cat Command remote control
  • Servicio y mantenimiento
    • Integrated vehicle health management system
  • El tren de aterrizaje y las estructuras
    • Full length track guiding guard
    • 5.0 mt (11,020 lb) counterweight
    • 7.7 mt (16,980 lb) counterweight
    • 600 mm (24") triple grouser track shoes
    • 700 mm (28") triple grouser track shoes
    • 850 mm (33") triple grouser track shoes
    • 3440 mm (11'3") blade
    • 3600 mm (11'10") blade
