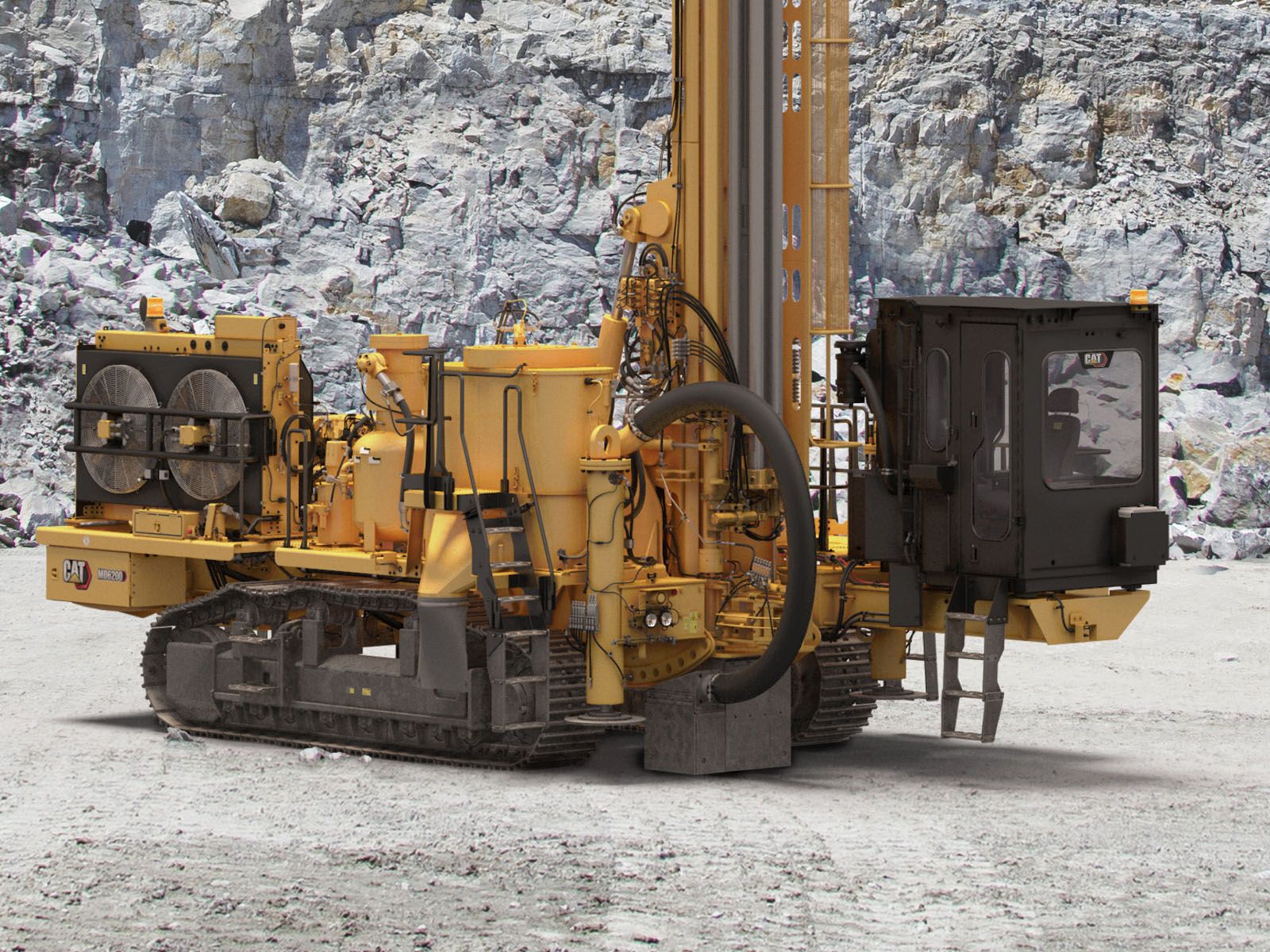

| Capacidad de extracción | Hasta 15 876 kg (hasta 35 000 lb) |
|---|
| Carga de bits | Up to 16 964 kg (37,400 lb) |
|---|---|
| Motor | Cat© C18 |
| Diámetro del orificio | 140-200 mm (5,5-7,87 pulgadas) |
| Angle Drilling Available | 30 degrees to 0 degrees in 5-degree increments |
|---|---|
| Bit Load (single-Pass) | 37400lb |
| Compressor - DTH Drilling | 29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi) |
| Compresor - Perforación rotativa | 32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi) |
| Hoist Capacity | Up to 11 907 kg (Up to 26,250 lb) |
| Hoist Speed | 4.3ft/s |
| Hole Depth Range - Multi-Pass Depth | Down to 47.58 m (Down to 156 ft) |
| Hole Depth Range - Single-Pass Depth | 36 pies |
| Gama de diámetros de orificio | 140-200 mm (5,5-7,87 pulgadas) |
| Pull-DownCapacity | Hasta 15 876 kg (hasta 35 000 lb) |
| U.S. EPA Tier 2 Equivalent - Emissions | U.S. EPA Tier 2 equivalent |
| U.S. EPA Tier 2 Equivalent - Engine | C18 @ 1,800 rpm |
| U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396) | 587hp |
| U.S. EPA Tier 4 Final - Emissions | Final del Nivel 4 de la EPA de los EE.UU. |
| U.S. EPA Tier 4 Final - Engine | C18 @ 1,800 rpm |
| U.S. EPA Tier 4 Final - Power Rating (ISO 14396) | 589hp |
| DTH Drilling | Includes tool lubrication system |
|---|---|
| DTH Drilling - 1050 cfm/350 psi | 29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler |
| Nota | With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature. |
| Rotary Drilling | Optional tool lubrication system |
| Rotary Drilling - 1150 cfm/125 psi | 32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi) |
| Choice (1) | Low pressure 8.6 bar (125 psi) |
|---|---|
| Choice (2) | High pressure 24.1 bar (350 psi) |
| Componentes (1) | Refrigeradores con fácil acceso para su limpieza |
|---|---|
| Componentes (2) | Todas las secciones del núcleo del refrigerador son sustituibles |
| Componentes (3) | Functional in ambient temperature of up to 52� C (125� F) |
| Componentes (4) | Control automático del ventilador con velocidad variable |
| Nivel climático 1 Líquidos y lubricantes estándar (1) | Rated down to -1C (30 F) |
|---|---|
| Fluidos y lubricantes estándar de nivel climático 1 (2) | Withstands high heat up to 52 C (125 F) |
| Climate Level 2 Arctic Fluids and Lubricants, Engine Block and Manifold Heater 120V or 240V | Rated down to -18 C (0 F) |
| Componentes (1) | Three leveling jacks provide leveling on a 7� bench (any orientation) |
|---|---|
| Componentes (2) | Heavy duty tow hooks (non-drill end) |
| Componentes (3) | Cuatro (4) orejetas de elevación, para su uso con cables o cadenas |
| Características (1) | Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life |
| Características (2) | Superficies antideslizantes |
| Características (3) | Fuel tank capacity 833 L (220 gal) |
| Choice (1) | Fixed access steps to the cab area |
|---|---|
| Choice (2) | Small platform to the cab includes fixed access steps |
| Choice (3) | Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates |
| Componentes (1) | Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket |
|---|
| Rodillos de transporte | Tres (3) |
|---|---|
| Componentes (1) | Protectores y guías para cadenas de oruga |
| Tirador de la barra de tracción | 262 000 Nm (193,241 lbf-ft) |
| Rodillos inferiores | Eight (8) |
| Modelo | Cat® 336 Excavator type |
| Velocidad de viaje - Alta | 2 millas/h |
| Velocidad de viaje - Baja | 1.3mile/h |
| Tremadas triples (1) | 600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure |
| Componentes (1) | Two (2) main pumps: 85 cc (piston with proportional electronic controls) |
|---|---|
| Componentes (2) | One (1) auxiliary circuit pump: 45 cc (piston, load sensing) |
| Componentes (3) | One (1) fan pump: 45 cc (piston with proportional electronic controls) |
| Componentes (4) | One (1) charge pump: 73.8 cc (gear, fixed displacement) |
| Componentes (5) | Scheduled Oil Sampling (S-O-S SM) ports |
| Opciones (1) | Static dust curtains, four sides boxed enclosed |
|---|---|
| Opciones (2) | Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector) |
| Opciones (3) | Tram off spray system (option) |
| High Volume Water Injection - Maximum - Tank Above Deck - Capacity | 200gal (US) |
| High Volume Water Injection - Maximum - Tank Below Deck - Capacity | 200gal (US) |
| High Volume Water Injection - Maximum - Tanks Total Capacity | 400gal (US) |
| Water Injection - Tank Mounted Below Front Deck | 200gal (US) |
| Water Injection - Tank Mounted Below Front Deck - Components | Water flow meter, volume control, tank fill level indicator |
| Water Injection plus Dust Collector (1) | 76.5 cmm (2,700 cfm) dust collector; includes standard water injection |
| Water Injection plus Dust Collector (2) | Self-cleaning filters, dust chute clean-out door |
| Elevador | Up to 11 907 kg (Up to 26,250 lb) |
|---|---|
| Multi-Pass Depth | Down to 47.58 m (Down to 156 ft) |
| Pulldown - Rated Single Cylinder Pull-Down/Hoist System | Hasta 15 876 kg (hasta 35 000 lb) |
| Single-Pass Depth | 36 pies |
| Feature (1) | Dos motores de arranque |
|---|---|
| Feature (2) | Ayuda de arranque con éter |
| Feature (3) | Tier 4 Final package complete with DEF/Engine Shutdown Control Package |
| Componentes (1) | Two-piece bushing |
|---|---|
| Componentes (2) | Pipe positioner clamps |
| Componentes (3) | Llave para cubiertas |
| Componentes (4) | Amortiguador |
| Componentes (5) | Cross over subs |
| Componentes (6) | Junta rascadora para tuberías |
| Componentes (7) | El lubricador de la herramienta de perforación se incluye con la selección del compresor DTH |
| Componentes (8) | Mejor suplente |
| Longitud del cuerpo | 31 pies |
|---|---|
| Altura mástil abajo | 11,75 pies |
| Altura mástil arriba | 54.3ft |
| Longitud mástil abajo | 57.5ft |
| Mast only length | 52.1ft |
| Nota | *Contact the factory for width with platform access to cab or service platform walkway. |
| Width cab end* | 13,7 pies |
| Width non-cab end | 11,7 pies |
| 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4 | 5.5in |
|---|---|
| 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5 | 6in |
| Componentes (1) | Casquillo de una sola pieza para la plataforma de rodillos |
|---|---|
| Componentes (2) | Pipe positioner clamps |
| Componentes (3) | Llave para cubiertas |
| Componentes (4) | Subdivisión de bits |
| Componentes (5) | Mejor suplente |
| Componentes (6) | Junta rascadora para tuberías |
| Componentes (7) | Drill tool lubricator (optional) |
| Características (1) | Pipe carousel: Accepts quantity of four (4) 9.14 m (30 ft) pipes |
|---|---|
| Características (10) | Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating |
| Características (11) | Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in) |
| Features (12) | Closed circuit camera mounted in mast to view pipe carousel/top drive operation |
| Features (13) | Pipe positioner for angle drilling, multi-pass pipe handling |
| Features (14) | Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket |
| Características (2) | Standard angle drilling package (0 to 30 degrees, in�5-degree�increments) |
| Características (4) | Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in) |
| Características (5) | Drills strings configured for bit changes above deck |
| Características (6) | Single cylinder pulldown/hoist system |
| Características (7) | Conjunto de llave para plataforma deslizante |
| Características (8) | Configured with roller deck bushing (for low pressure/tricone drilling) |
| Características (9) | Two-piece deck bushing (for high pressure DTH drilling) |
| Componentes (1) | Control del par de giro |
|---|---|
| Componentes (2) | Bloqueos virtuales de desplazamiento del cabezal giratorio |
| Componentes (3) | Bloqueos virtuales de desplazamiento del cabezal giratorio |
| Velocidad de rotación | 0-150 rpm |
| Par motor - Motor único | 6166lb/ft |
| Diseño de la cabina | Falling Object Protective Structure (FOPS) certified cab includes: - Rubber shock-mounts to absorb mechanical vibration - Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) hig |
|---|---|
| Cab Packages | Standard configuration includes a fabric seat, removable floor mat, single pane window glass and driller window guard Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass a |
| Cameras | - Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation |
| HVAC | - Floor heating vent - Filter access from deck, 500 hour service interval - Defogging HVAC vents on main window |
| Iluminación | - LED interior lights, backlit joysticks and keypads - Flood lights for the drill perimeter; area spotlights - Mast beacon and tram flashing strobe light (option) |
| Asientos | - Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in) - Seat locks and has two point retractable, 76 mm (3 in) seat belt |
| Windows | - Large windows on the front, rear and right cab side; full length drill window with guard - Window shades (option) - Windshield wiper with a common washer tank - Manometer Pressure Gauge (option) |
| Componentes (1) | Mandos eléctricos para perforación, desplazamiento, nivelación y funciones auxiliares |
|---|---|
| Componentes (10) | Registro de datos sobre el estado de la máquina, con alertas y registros de códigos de avería, y con posibilidad de exportación |
| Componentes (11) | Control de la supresión de polvo |
| Componentes (12) | Indicador de bloqueo del mástil |
| Componentes (13) | Sistema de control proporcional de la velocidad del ventilador ECM |
| Componentes (14) | Enclavamiento del tranvía, límites de estabilidad del vehículo |
| Componentes (15) | Enlace de tranvía, tubería en el agujero |
| Componentes (16) | Enclavamiento del tranvía: mástil levantado y bloqueado o bajado y aparcado |
| Componentes (17) | Tram interlock, jacks retracted |
| Componentes (18) | Enclavamiento del tranvía, cabrestante estacionado |
| Componentes (19) | Cab environment controls (AC, heat, fan speeds) |
| Componentes (2) | Control del par de giro |
| Componentes (20) | Pre wired for Terrain and Autonomous Operation |
| Componentes (3) | Virtual rotary head travel stops |
| Componentes (4) | Indicador de activación/desactivación del posicionador de tubos |
| Componentes (5) | Medidor de profundidad de perforación |
| Componentes (6) | Drill performance and display system |
| Componentes (7) | Apagado retardado del motor |
| Componentes (8) | Indicadores de filtro para el sistema hidráulico, el sistema de combustible, el compresor y el motor |
| Componentes (9) | Jack pressure sensors |
| Componentes (1) | Medidor de profundidad de perforación |
|---|---|
| Componentes (2) | Drill Assist Automated Functionality (onboard technology): - Auto Level (with auto retract jacks) - Auto Mast (raise, lower and lock into place) - Auto Dril (single pass) |
| Componentes (3) | Cat Terrain listo |
| Componentes (4) | Product Link™ Elite |
| Tipo (1) | Autonomous ready |
| Componentes (1) | Seven (7) emergency stop buttons |
|---|---|
| Componentes (10) | Machine lifting provisions |
| Componentes (11) | FOPS Certified Operator Cab |
| Componentes (2) | Protector con bisagras a lo largo de toda la ventana frontal de la perforadora |
| Componentes (3) | Conditional safety interlocks |
| Componentes (4) | Self-closing gates |
| Componentes (5) | Bocina eléctrica que se activa mediante un pulsador situado en la cabina |
| Componentes (6) | Automatic, audible tram alarm |
| Componentes (7) | Battery disconnect and starter switches can be locked out |
| Componentes (8) | Air hose retention devices |
| Componentes (9) | Slip resistant platform surfaces |
| Feature (1) | Approach angle of 15-degrees facilitates loading and unloading on a lowboy |
| Paquete (1) | Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water |
|---|---|
| Paquete (2) | Standard Package: Automated lubrication system, fast fill for fuel and water (option) |
| Package (3) | Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option) |
| Gama de pesos de trabajo | 40 823 - 45 359 kg (90,000 - 100,000 lb) |
|---|
