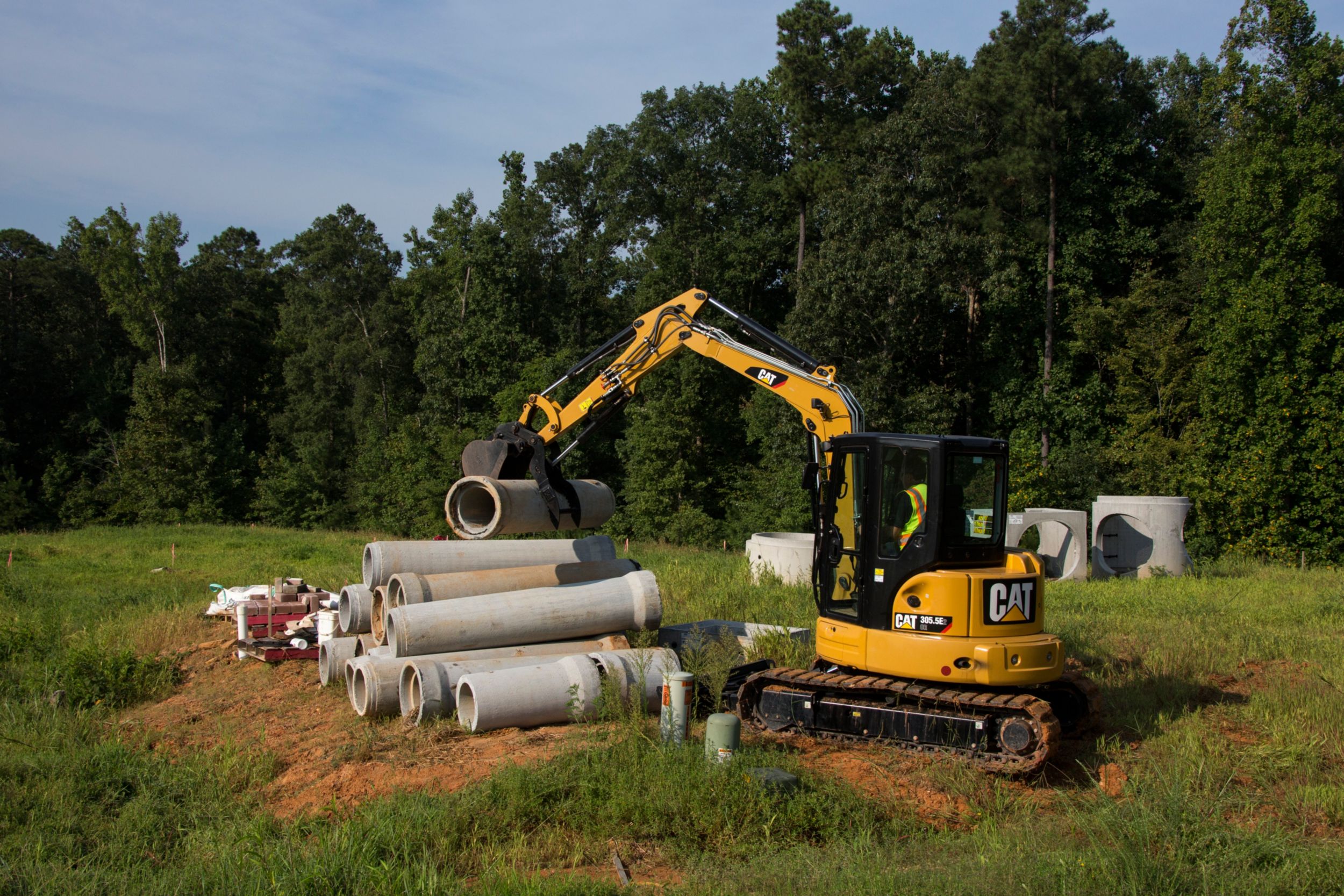

The Cat C2.4 meets U.S. EPA Tier 4 Final emission standards for North America, EU Stage V emission standards for Europe and Tier 4 Interim emission standards for all other regions.
Weights*
Operating Weight
11443lb
Weight - Cab, Long Stick
11443lb
Weight - Cab, Standard Stick
11334lb
Weight - Canopy, Long Stick
11069lb
Weight - Canopy, Standard Stick
10970lb
Dimensions - Long Stick
Dig Depth
144in
O/A Track Width
78in
O/A Undercarriage Length
102in
Swing Bearing - Height
24in
Tail Swing
43in
Track Belt/Shoe Width
16in
Vertical Wall
104in
Maximum Dig Height
214in
Maximum Blade Height
16in
Maximum Blade Depth
22in
Boom Swing - Right
31in
Boom Swing - Left
27in
Boom In Reach
100in
Boom Height - Shipping Position
85in
O/A Shipping Length
208in
Maximum Dump Clearance
154in
Maximum Reach
235in
Maximum Reach - Ground Level
229in
O/A Shipping Height
100in
Swing System
Machine Swing Speed
10r/min
Blade
Width
78in
Height
14.8in
Dig Depth
21.9in
Lift Height
15.9in
Service Refill Capacities
Cooling System
2.8gal (US)
Engine Oil
2.5gal (US)
Hydraulic Tank
18gal (US)
Fuel Tank
16.6gal (US)
Hydraulic System
20.6gal (US)
Hydraulic System
Note
Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Digging Force - Bucket
10050lb
Operating Pressure - Equipment
3553psi
Digging Force - Stick - Standard
5550lb
Digging Force - Stick - Long
4788lb
Pump Flow at 2,400 rpm
39.6gal/min
Operating Pressure - Travel
3553psi
Operating Pressure - Swing
3132psi
Maximum Auxiliary Circuit - Primary - Flow at Pump
21.1gal/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump
6.6gal/min
Maximum Auxiliary Circuit - Secondary - Pressure at Pump
3553psi
Maximum Auxiliary Circuit - Primary - Pressure at Pump
3553psi
Lift Capacities at Ground Level - Lift Point Radius: 3000 mm (9'8”)
Blade Up - Side
2359in
Blade Up - Front
3197lb
Blade Down - Front
5159lb
Blade Down - Side
2646in
Dimensions - Standard Stick
Vertical Wall
91in
Maximum Dump Clearance
129in
Maximum Reach
220in
Maximum Reach - Ground Level
210in
O/A Shipping Height
100in
O/A Shipping Length
204in
O/A Track Width
78in
O/A Undercarriage Length
102in
Track Belt/Shoe Width
16in
Tail Swing
43in
Swing Bearing - Height
24in
Maximum Dig Height
207in
Maximum Blade Depth
22in
Maximum Blade Height
16in
Boom Height - Shipping Position
69in
Boom In Reach
93in
Boom Swing - Left
27in
Boom Swing - Right
31in
Dig Depth
129in
Lift Capacities at Ground Level - Lift Point Radius: 4000 mm (13'1”)
Blade Down - Front
2778lb
Blade Up - Front
1676lb
Blade Up - Side
1257lb
Blade Down - Side
1411lb
Travel System
Ground Pressure - Canopy
4.3psi
Ground Pressure - Cab
4.4psi
Maximum Traction Force - Low Speed
10161lb
Travel Speed - High
2.7mile/h
Travel Speed - Low
1.7mile/h
Maximum Traction Force - High Speed
5418lb
Operating Specifications
Stick Length - Standard
52in
Stick Length - Long
67in
Cab
Exterior Sound Power Level - ISO 6395:2008*
96dB(A)
Dynamic Operator Sound Pressure Level (ISO 6396:2008)
81dB(A)
Standard Equipment:
Engine
Cat C2.4 diesel engine (meets U.S. EPA Tier 4 Final emission standards for North America, EU Stage V emission standards for Europe and Tier 4 Interim emission standards for all other regions)
Automatic engine idle
Automatic engine shut-off
Automatic two speed travel
Diesel Particulate Filter (North America only)
Diesel Oxidation Catalyst (North America only)
Fuel and water separator
Power on demand
Hydraulic System
1-way and 2-way (combined function)
Accumulator
Automatic swing parking brake
Auxiliary hydraulic lines
Adjustable auxiliary relief
Auxiliary line quick disconnects
Cat interlock system: hydraulic lockout
Continuous auxiliary flow
Ecology drain
Hydraulic oil cooler
High definition hydraulics
Load sensing/flow sharing
Operator Environment
100% pilot control ergonomic joysticks
Adjustable armrests
COMPASS: complete, operation, maintenance, performance and security system
Multiple languages
Cup holder
Hydraulic neutral lockout bar
Literature holder
Pattern changer (optional in Europe)
Site reference system: leveling
Tool storage area
Travel control pedals with hand levers
Washable floor mat
Undercarriage
Dozer blade with float function
Track, rubber belt, 400 mm (16 in) width
Tie down eyes on track frame
Towing eye on base frame
Front Linkage
200 degree bucket rotation
Certified lifting eye on bucket linkage (optional in Europe)
Front shovel capable
Thumb ready stick
Electrical
12 volt electrical system
60 ampere alternator
650 CCA maintenance free battery
Fuse box
Ignition key start/stop switch
Slow blow fuse
Warning horn
Lights And Mirrors
Boom light with time delay capability
Safety And Security
Anti-theft system (COMPASS)
Caterpillar Corporate “One Key” System
Door locks
Lockable fuel cap
Retractable seat belt
Roll Over Protective Structure (ROPS) (ISO 12117-2)
Tip Over Protective Structure (TOPS) (ISO 12117)
Top guard – ISO 10262 (Level 1)
Travel alarm (optional in Europe)
Technology
Product Link™
Optional Equipment:
Engine
Engine block heater
Hydraulic System
Quick coupler lines
Boom lowering check valve
Stick lowering check valve
Secondary auxiliary hydraulic lines
Operator Environment
Cab:
Air conditioning
Heat
High back suspension seat
Interior light
Interlocking front window system
Radio
Windshield wiper
Undercarriage
Power angle blade
Track, double grouser (steel), 400 mm (16 in)
Track, double grouser (steel) with rubber pad, 400 mm (16 in)
