Medical Lubricated Vane Open Systems

Modelo	HP	SCFM @ 19" Hg	Depósito (gal)	BTU/Hr	dB(A) Nivel	FLA @ 208V	FLA @ 230V	FLA @ 460V	Hoja de especificaciones	Folleto
Sistemas dúplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#

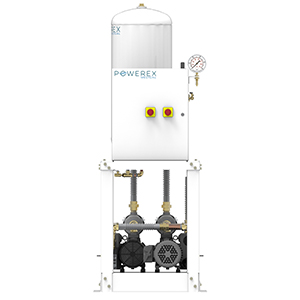

VVTD0151	1.5 (2)	7	30V	3251	63	11.0	10.8	6.4
VVTD0201	2 (2)	11	30V	4335	66	13.2	12.8	7.4
VVTD0303	3 (2)	17	80V	6503	66	18.8	17.6	9.8
VVTD0403	5 (2)	25	80V	10838	68	29.6	28.0	15.0
VVTD0503	5 (2)	37	80V	10838	74	30.6	27.8	14.9
VTD0153	1.5 (2)	7	80H	3251	63	11.0	10.8	6.4
VTD0203	2 (2)	11	80H	4335	66	13.2	12.8	7.4
VTD0303	3 (2)	17	80H	6503	66	18.8	17.6	9.8
VTD0404	5 (2)	25	120H	10838	68	29.6	28.0	15.0
VTD0504	5 (2)	37	120H	10838	74	30.6	27.8	14.9
VTD0755	7.5 (2)	52	200H	16256	80	44.0	42.8	22.4
VTD1006	10 (2)	77	240H	21675	81	54.8	53.2	27.6
Sistemas dúplex de sobredepósito									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPDT0402	5 (2)	25	60H	10838	68	29.6	28.0	15.0
VPDT0502	5 (2)	37	60H	10838	74	30.6	27.8	14.9
VPDT0752	7.5 (2)	52	60 H	16256	80	44.0	42.8	22.4
Sistemas dúplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPD0504	5 (2)	37	120V	10838	72	31.6	27.8	14.9
VPD0754	7.5 (2)	52	120V	16256	80	44	42.8	22.4
VPD1004	10 (2)	77	120V	21675	81	54.8	53.2	27.6
VPD1505	15 (2)	111	200V	32513	83	82.8	76.8	39.4
VPD2005	20 (2)	137	200V	43350	84	110	106	54
VPD2505	25 (2)	168	200V	54188	85	138	126	64
Duplex Systems Expandable to Triplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPD0504-EX3	5 (2)	37	120V	21676	75	46.4	40.7	21.3
VPD0754-EX3	7.5 (2)	52	120V	32512	83	65	63.2	32.6
VPD1004-EX3	10 (2)	77	120V	43350	84	81.2	78.8	40.4
VPD1505-EX3	15 (2)	111	200V	65026	86	123.2	114.2	58.1
VPD2005-EX3	20 (2)	137	200V	86700	87	164	158	80
VPD2505-EX3	25 (2)	168	200V	108360	88	206	188	95
Sistemas Triplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPT0504	5 (3)	74	120V	21676	75	46.4	40.7	21.4
VPT0754	7.5 (3)	104	120V	32512	83	65	63.2	32.6
VPT1004	10 (3)	154	120V	43350	84	81.2	78.8	40.4
VPT1505	15 (3)	222	200V	65026	86	123.2	114.2	58.1
VPT2005	20 (3)	274	200V	86700	87	164	158	80
VPT2505	25 (3)	336	200V	108376	88	206	188	95
Triplex Systems Expandable to Quadplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPT0505-EX4	5 (3)	74	200V	32514	77	61.2	53.6	27.8
VPT0755-EX4	7.5 (3)	104	200V	48768	85	86	83.6	42.8
VPT1005-EX4	10 (3)	154	200V	65025	86	107.6	104.4	53.2
VPT1505-EX4	15 (3)	222	200V	97539	88	163.6	151.6	76.8
VPT2005-EX4	20 (3)	274	200V	130050	89	218	210	106
VPT2505-EX4	25 (3)	336	200V	162564	90	274	250	126
Sistemas Quadplex									#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#
VPQ0505	5 (4)	111	200V	32514	77	61.2	53.6	27.8
VPQ0755	7.5 (4)	156	200V	48768	85	86	83.6	42.8
VPQ1505	15 (4)	333	200V	97539	88	163.6	151.6	76.8
VPQ2005	20 (4)	411	200V	130050	89	218	210	106
VPQ2505	25 (4)	504	200V	162564	90	274	250	126
VPQ1005	10 (4)	231	200V	65025	86	107.6	104.4	53.2
