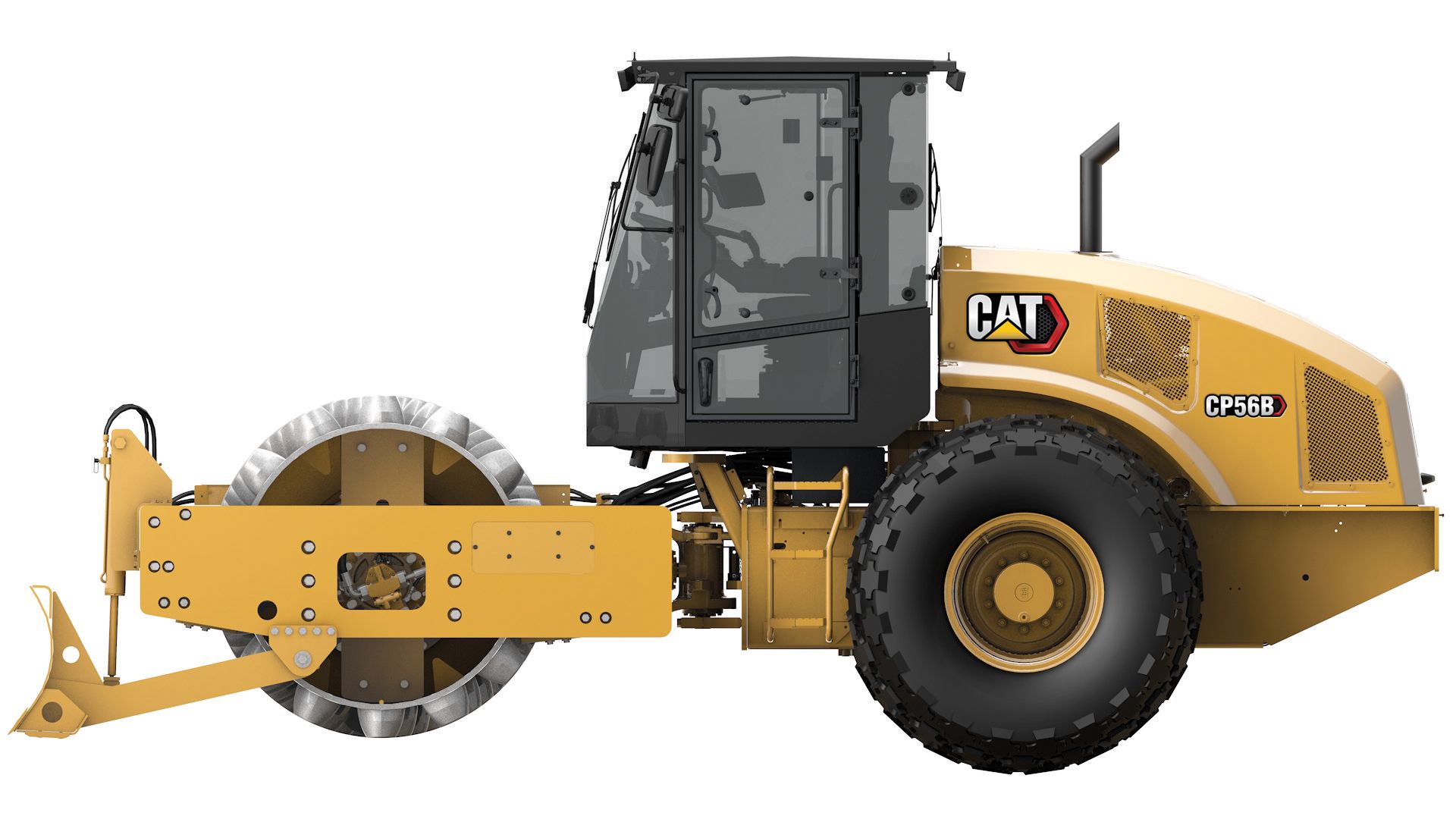

CP56B Vibratory Soil Compactor
- Operating Weight - With Cab:
- 25707 lb
- Compaction Width:
- 84 in
- Gross Power:
- 157 HP
- Weight - Drum with Cab:
- 14231 lb
Weights
- Operating Weight - With Cab
- 25707lb
- Weight - Drum with Cab
- 14231lb
- Weight - Drum with ROPS/FOPS
- 14026lb
Operating Specifications
- Compaction Width
- 84in
- Turning Radius - Inside Drum Edge
- 12.08ft
- Ground Clearance
- 17.9in
- Travel Speed - Maximum
- 7mile/h
Engine
- Gross Power
- 157HP
- Engine Model
- Cat C4.4 with ACERT
Dimensions
- Drum Diameter - Over Pads
- 61in
- Height - With ROPS/FOPS or Cab
- 10.25ft
- Optional Blade Height
- 27.1in
- Overall Length - With Blade Option
- 21ft
- Overall Width - With Blade Option
- 8.25ft
- Drum Diameter
- 51in
- Drum Width
- 84in
- Overall Length
- 19.25ft
- Overall Width
- 7.58ft
- Wheel Base
- 9.58ft
Vibratory System
- Centrifugal Force - Maximum
- 67600lb
- Centrifugal Force - Minimum
- 31670lb
- Nominal Amplitude - High
- 0.083in
- Nominal Amplitude - Low
- 0.039in
- Variable Frequency Option Range
- 23.3 - 30.5 Hz (1400-1830 vpm)
- Vibratory Frequency - Standard
- 30.5 Hz (1830 vpm)
Tires
- Tires
- 23.1 x 26
Service Refill Capacities
- Fuel Tank Capacity
- 64gal (US)
Standard Equipment:
-
- Operator Environment
-
- ROPS/FOPS Canopy with Handrails/Guardrails, Floor Mat
- Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera with Color Touchscreen Display
- Seat Belt
- 12-volt Power Outlet
-
- Vibratory System
-
- Padfoot Drum
- Dual Amplitude, Single Frequency
- Dual Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
-
- Power Train
-
- Cat C4.4 Diesel Engine
- Air Cleaner, Dual Element
- Three-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
-
- Electrical
-
- 24 volt Electrical System
- 100 ampere Alternator
- 750 Cold-cranking Amps Battery Capacity
-
- Other
-
- Product Link™
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- SOS℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment:
-
- Operator Environment
-
- ROPS/FOPS Cab with Climate Control, Cloth Seat
- Internal Rear View Mirror
- External Rear View Mirrors
- Sun Visor
- Cab Internal Roll-down Sun Screen
-
- Vibratory System
-
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
-
- Power Train
-
- Transmission Guard
-
- Technology Solutions
-
- Measure - Machine Drive Power
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
-
- Other
-
- Upgraded Halogen Light Package
- Amber Rotating Beacon
- Fuel Fill Access Door
