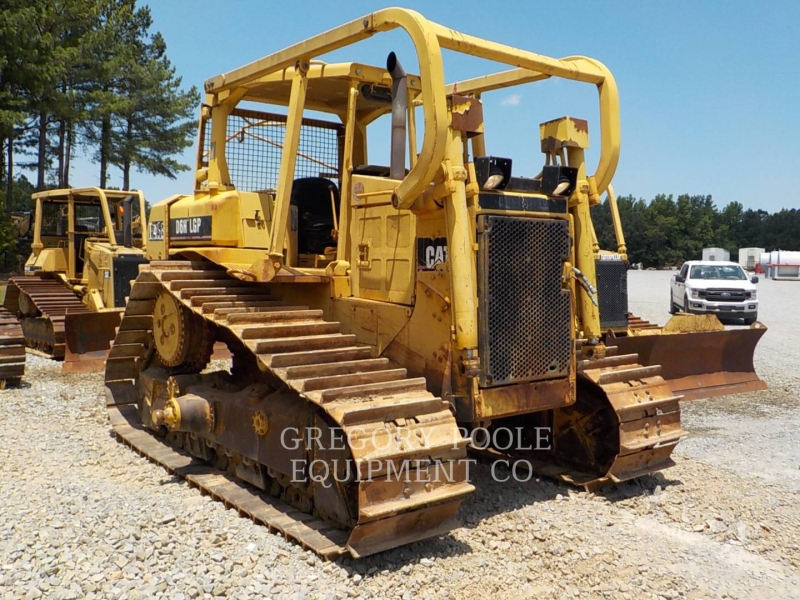

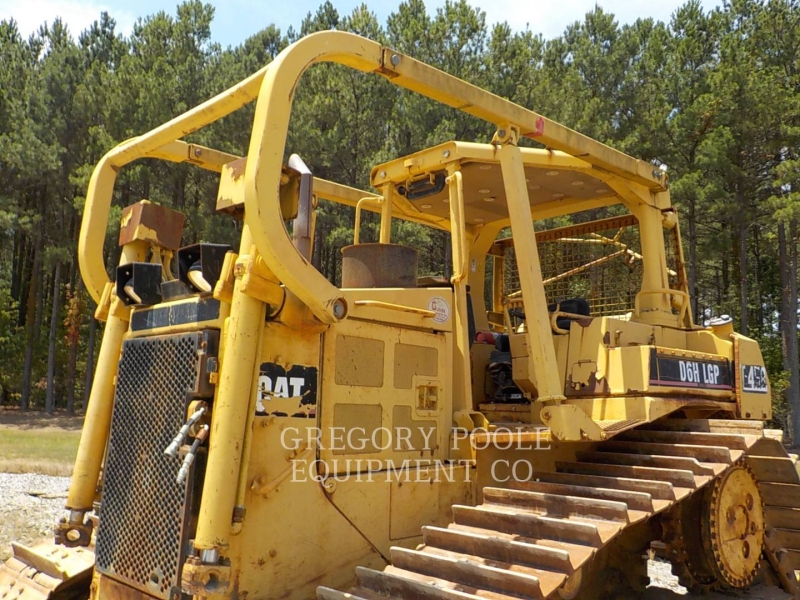

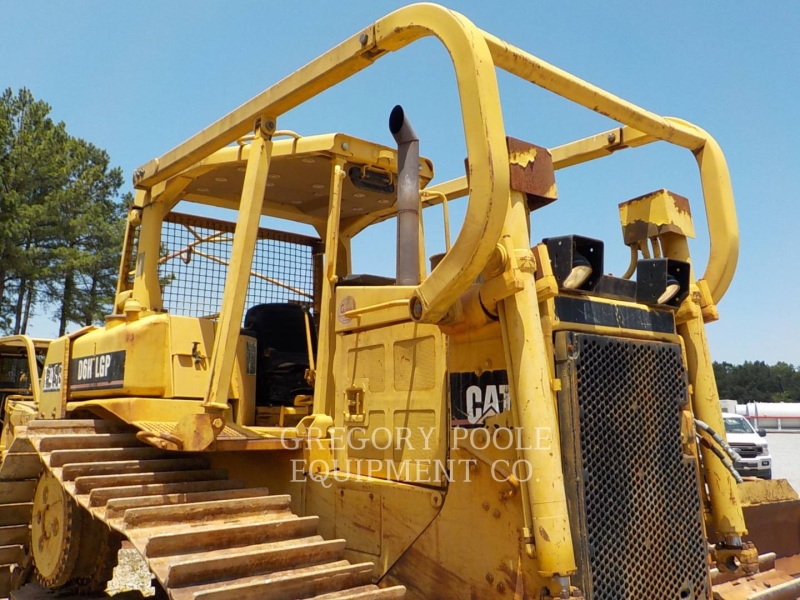

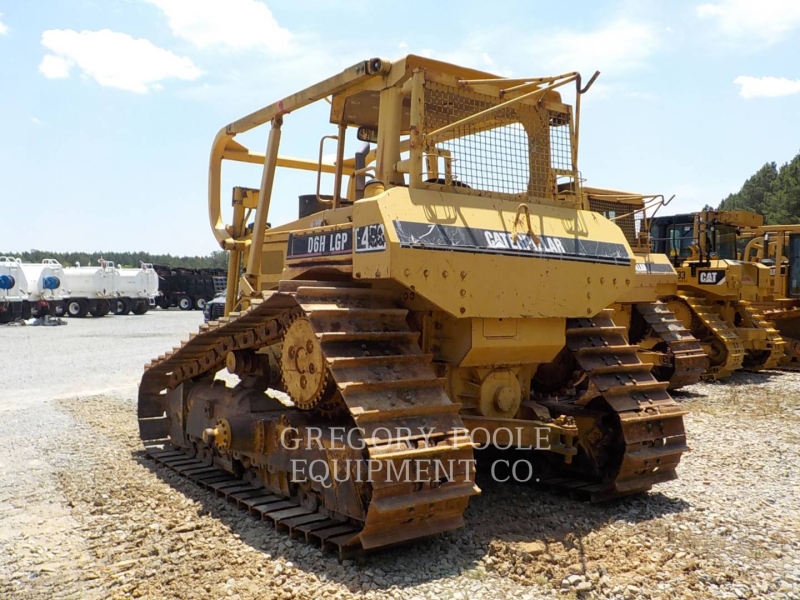

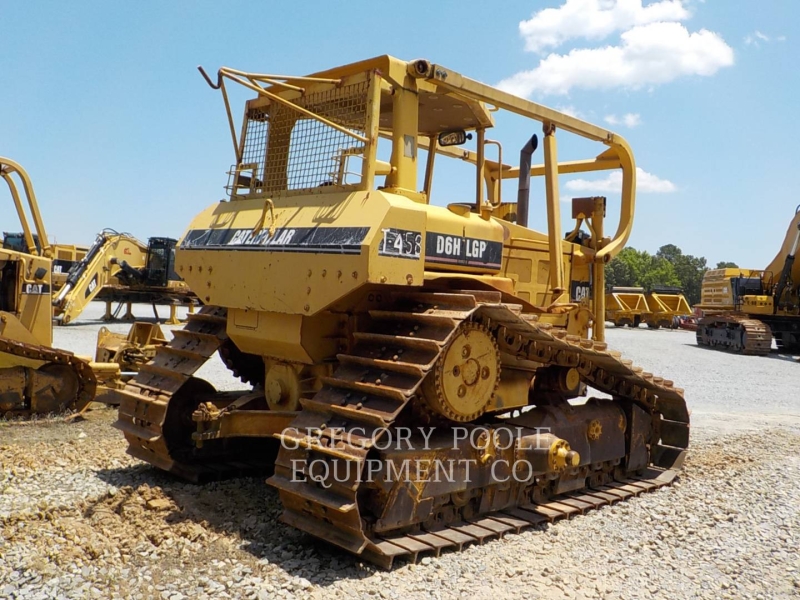

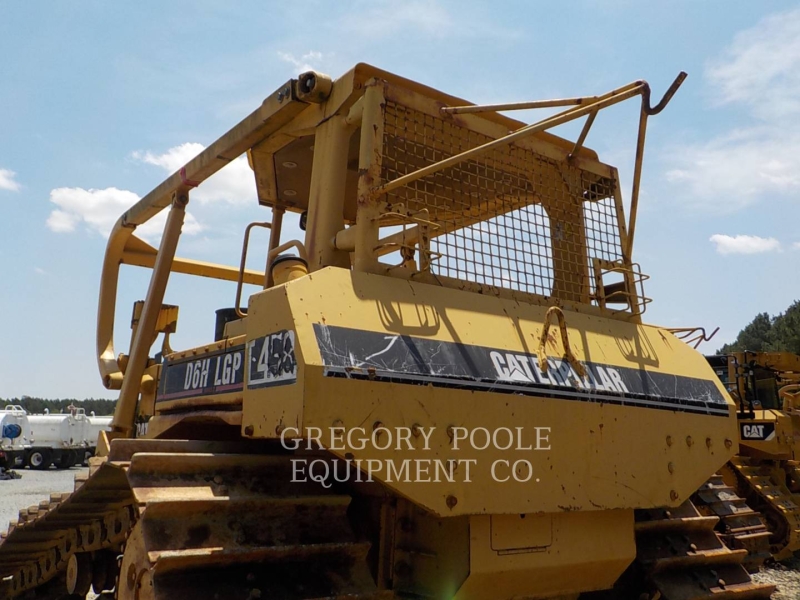

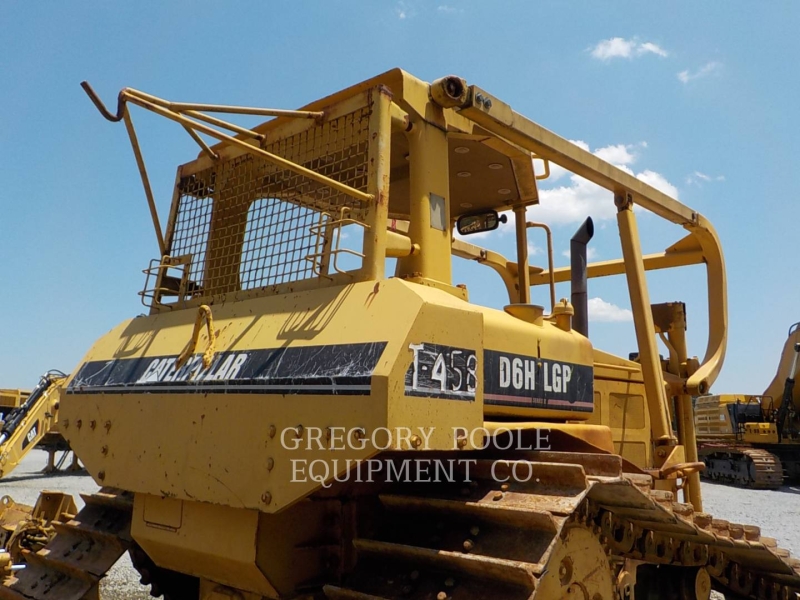

1996 Caterpillar D6HIILGP | gregorypoole

Price: $45,000

Hours:: -
Rating:: As-Is
Serial Num:: 3YG06458
Phone:: +001 8669488988
Contact:: Used Equipment
Location:: Hope Mills, NC

Request a quote

Email/Share

Print

Blade, S
Blade, Single Angle Tilt
Diff Steer
Drawbar
Engine Enclosures
Hyd Control
Lgp
Lighting
Operator's Manual
Orops
Screens
Sweeps

Photos

Manufacturer: Caterpillar

Year: 1996

Price: $45,000

Hours in Service: 11143

Rating: As-Is

Location: Hope Mills, NC

Request a quote

PRINT
SHARE

Manufacturer: Caterpillar

Year: 1996

Price: $45000

Hours in Service: 11143

Rating: As-Is

Location: Hope Mills, NC

Request a quote

PRINT
SHARE

Blade, S
Blade, Single Angle Tilt
Diff Steer
Drawbar
Engine Enclosures
Hyd Control
Lgp
Lighting
Operator's Manual
Orops
Screens
Sweeps

Contact	Name: Used Equipment Email: Used@Gregpoole.com Phone: +001 8669488988
Unit Number	-
Model	D6HIILGP
Serial Number	3YG06458
Year	1996
Hours	11143
City	Hope Mills
State	NC
Country	US
Rating	As-Is
Certification	None
Price	$45000

General Appearance

Cleaning Required: Yes
S.O.S. Taken: No
Cab or Canopy: Good
Draw Bar: Good
Fuel Tank: Good
Grab Irons: Fair
Hood: Good
Main Frame Welds: Good
Paint: Fair
Pre-Cleaner Bowl: Fair
Sheet Metal: Fair
Steps / Ladder: Good

Safety Items

ROPS: Yes
Back Up Alarm: Poor
Horn: Fair
Parking Brake - SAFETY ITEMS: Good

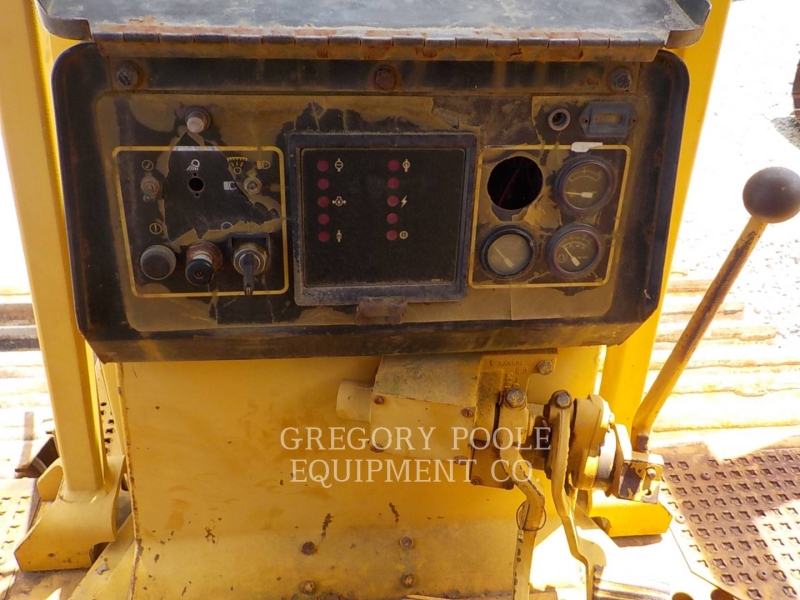

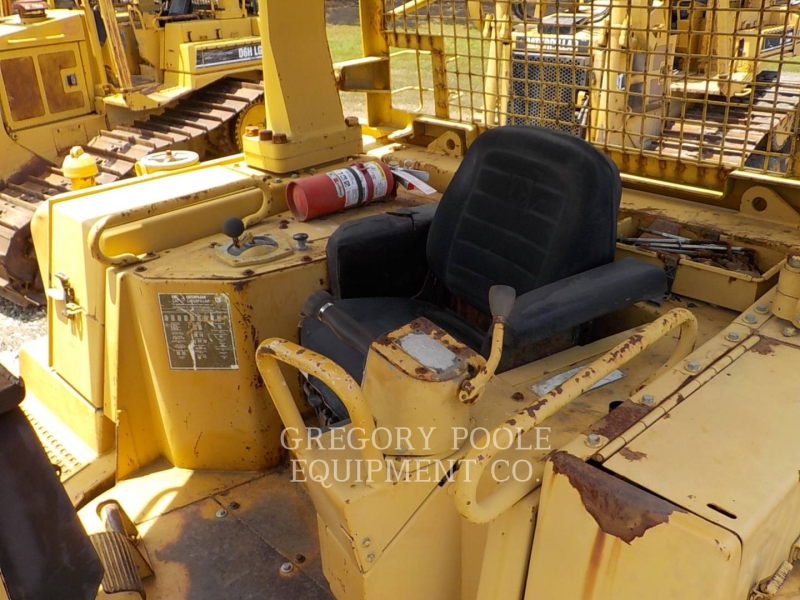

Gauges, Operator Station, Console

Dash Console: Good
EMS Panel / Warnings: Fair
Gauges: Fair
Glass/Mirrors: Good

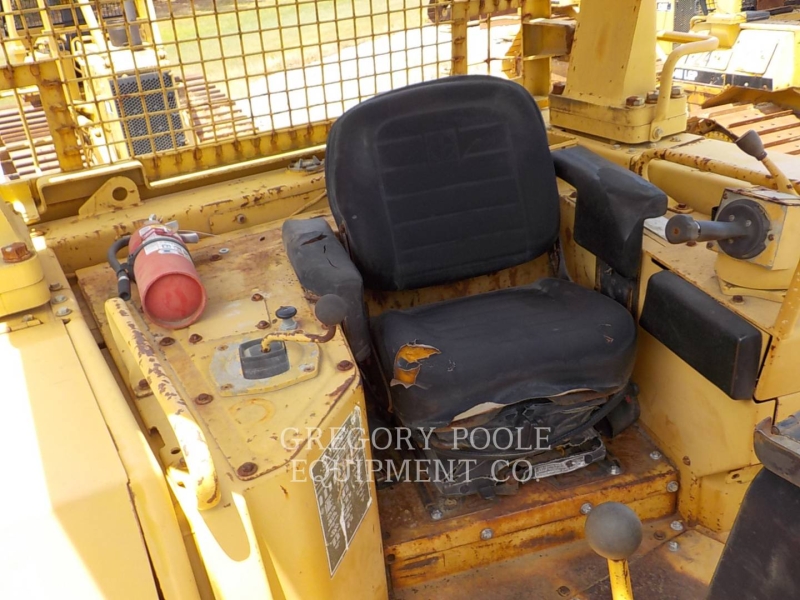

Seat Cushion / Arm Rest: Fair
Switches: Fair

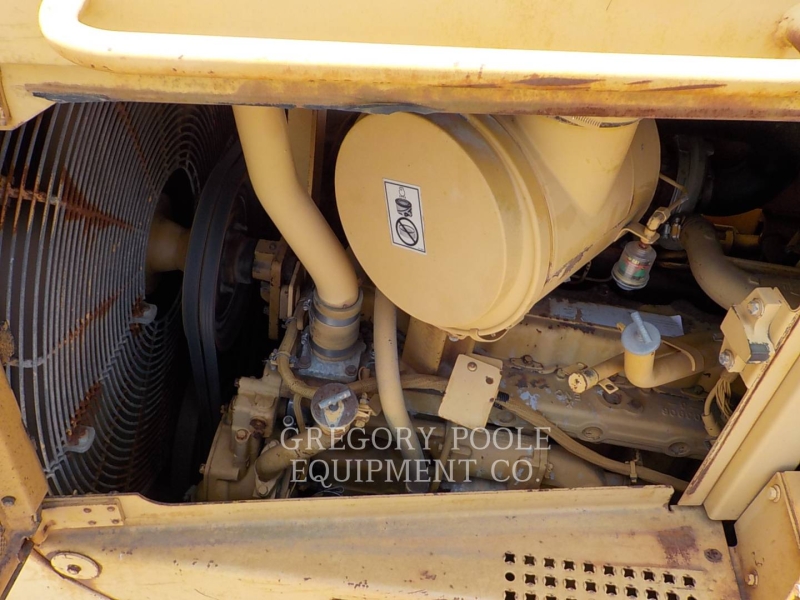

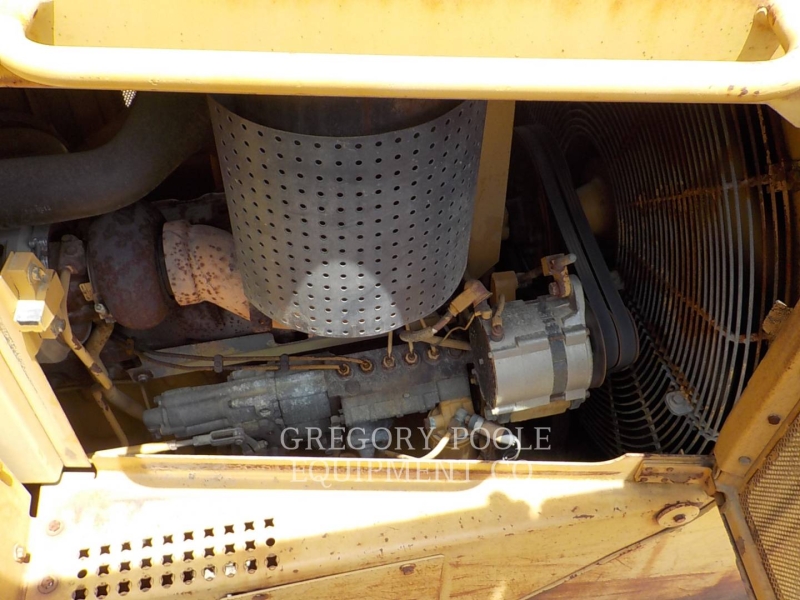

Engine

Blow By: No
Compression in Radiator: No
Knocking: No
Oil Leaks: No
Water in Oil: No
Engine Supports: Good
Fuel Injection System: Good
Operating Condition - ENGINE: Good
Turbocharger / Blower: Good

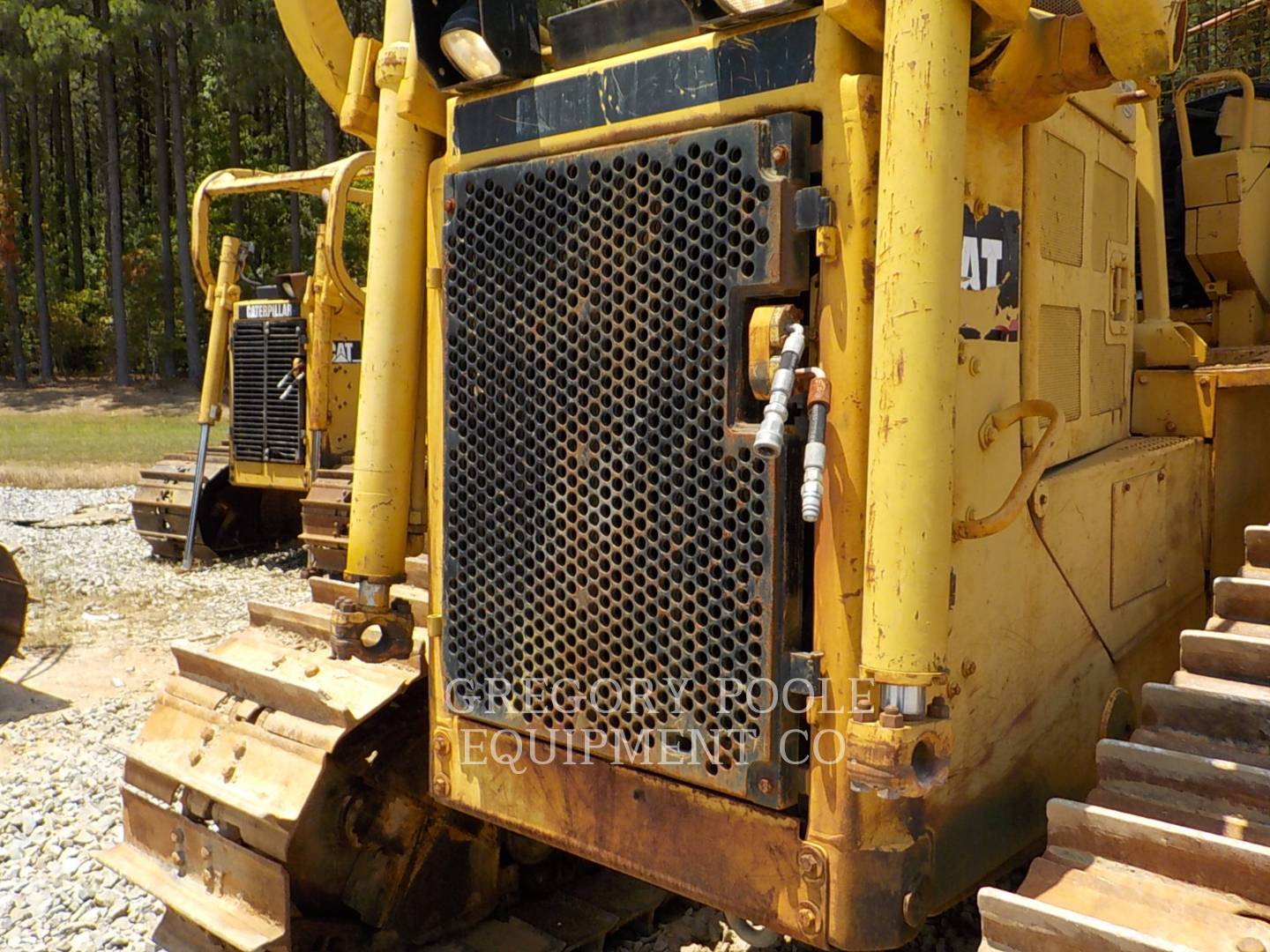

Cooling System

Leaks - COOLING SYSTEM: Yes
Modular Radiator: Yes
Belts / Pulleys - COOLING SYSTEM: Fair
Coolers: Good
Fan: Good
Hoses: Fair
Radiator: Good
Water Pump: Good

Electrical, Starting And Charging System

Alternator: Good

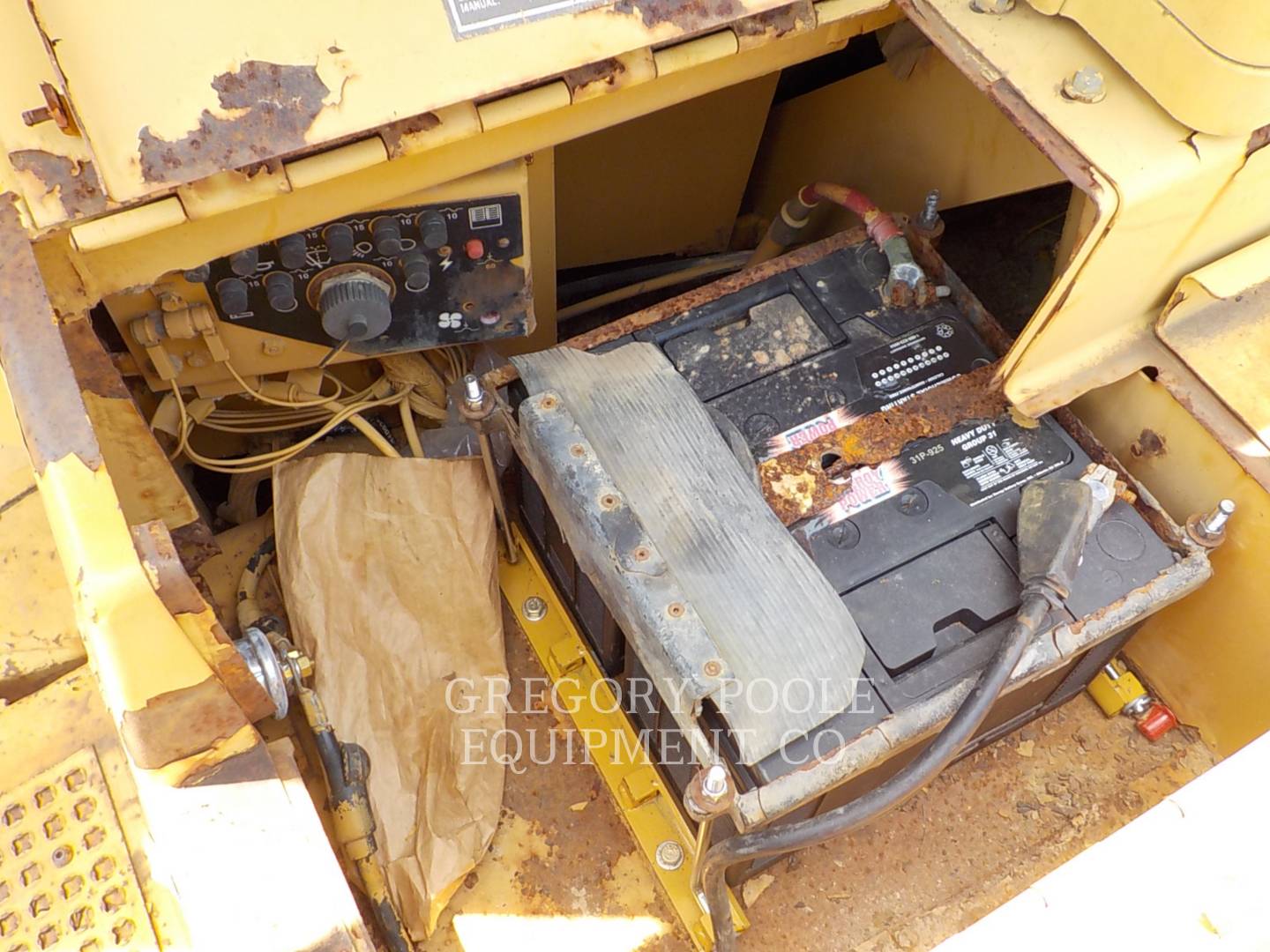

Batteries / Cables: Fair
Starter: Good
Wiring: Good

Transmission

Leaks - TRANSMISSION: No
Transmission - Noisy: No
Case: Good
Controls - TRANSMISSION: Fair
Cooler: Good
Lines / Fittings - TRANSMISSION: Good
Operating Condition - TRANSMISSION: Good
Pump - TRANSMISSION: Good
Seals: Good
Temp / Pressure Gauges: Fair
Transmission - Forward Shifts: Good
Transmission - Reverse Shifts: Good

Steering

Differential Steer: Good
Differential Steering Controls: Good
Steering Operating Condition: Good

Hydraulics

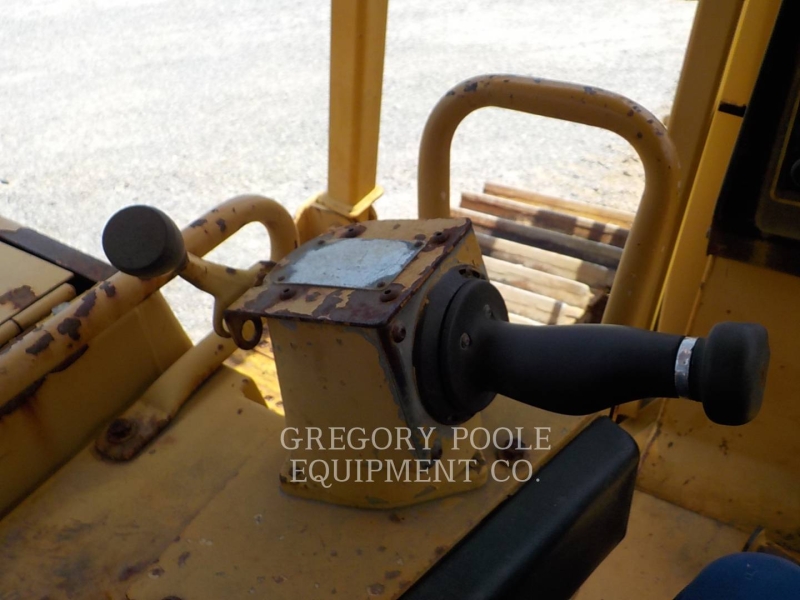

Control Linkage - HYDRAULICS: Fair
Hose Lines: Fair
Lift Cylinders: Fair

Blade

Trunnions: Good

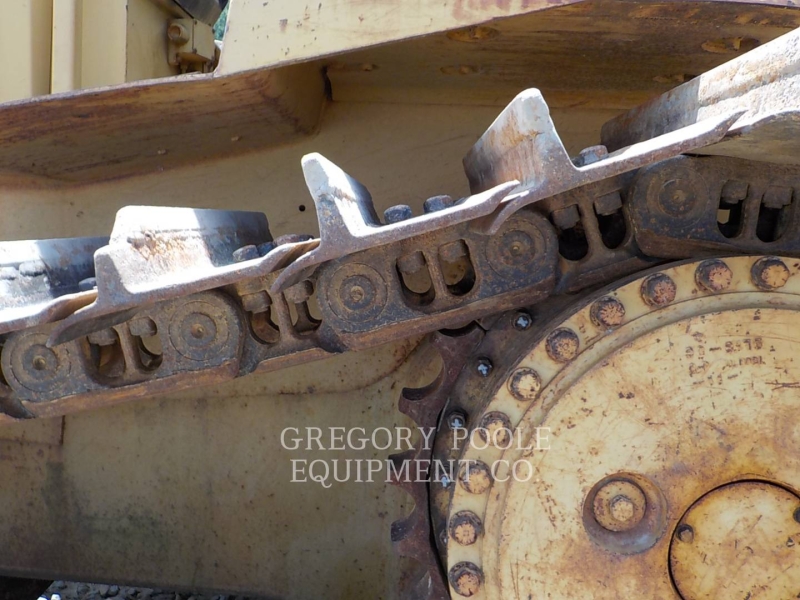

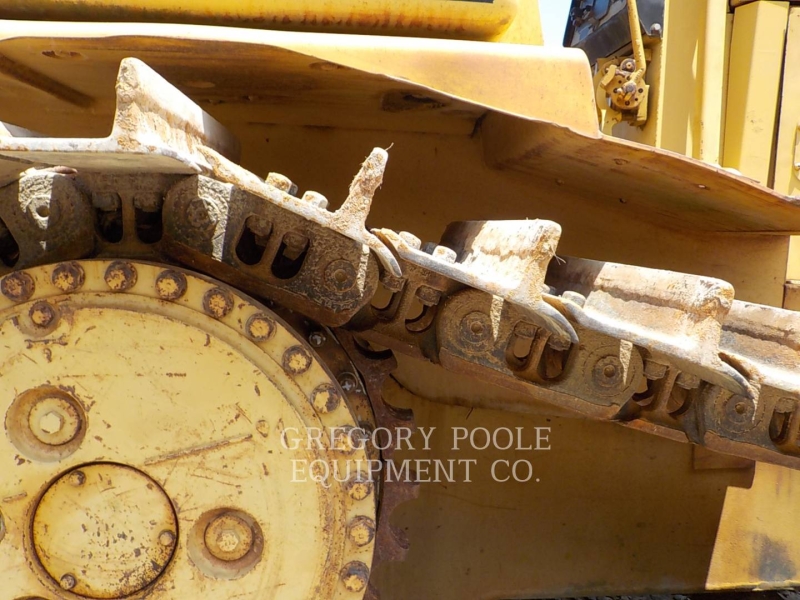

Undercarriage

Pins & Bushings Turned?: No
Track Frame - Left: Good
Track Frame - Right: Good
Carrier Rollers Front: Left: 191 mm Measurement, Left: 32% Worn, Right: 191 mm Measurement, Right: 32% Worn
Idlers Front: Left: 25 mm Measurement, Left: 23% Worn, Right: 19 mm Measurement, Right: 66% Worn
Idlers Rear: Left: 19 mm Measurement, Left: 66% Worn, Right: 18 mm Measurement, Right: 72% Worn
Links: Left: 129 mm Measurement, Left: 38% Worn, Right: 129 mm Measurement, Right: 38% Worn
Pins & Bushings (External): Left: 70 mm Measurement, Left: 30% Worn, Right: 70 mm Measurement, Right: 30% Worn
Segments: Left: 30% Worn, Right: 30% Worn
Track Roller 1: Left: 22 mm Measurement, Left: 36% Worn, Right: 22 mm Measurement, Right: 36% Worn
Track Roller 2: Left: 20 mm Measurement, Left: 26% Worn, Right: 20 mm Measurement, Right: 26% Worn
Track Roller 4: Left: 20 mm Measurement, Left: 26% Worn, Right: 20 mm Measurement, Right: 26% Worn
Track Roller 5: Left: 20 mm Measurement, Left: 26% Worn, Right: 20 mm Measurement, Right: 26% Worn
Track Roller 7: Left: 20 mm Measurement, Left: 26% Worn, Right: 20 mm Measurement, Right: 26% Worn
Track Roller 8: Left: 20 mm Measurement, Left: 26% Worn, Right: 20 mm Measurement, Right: 26% Worn

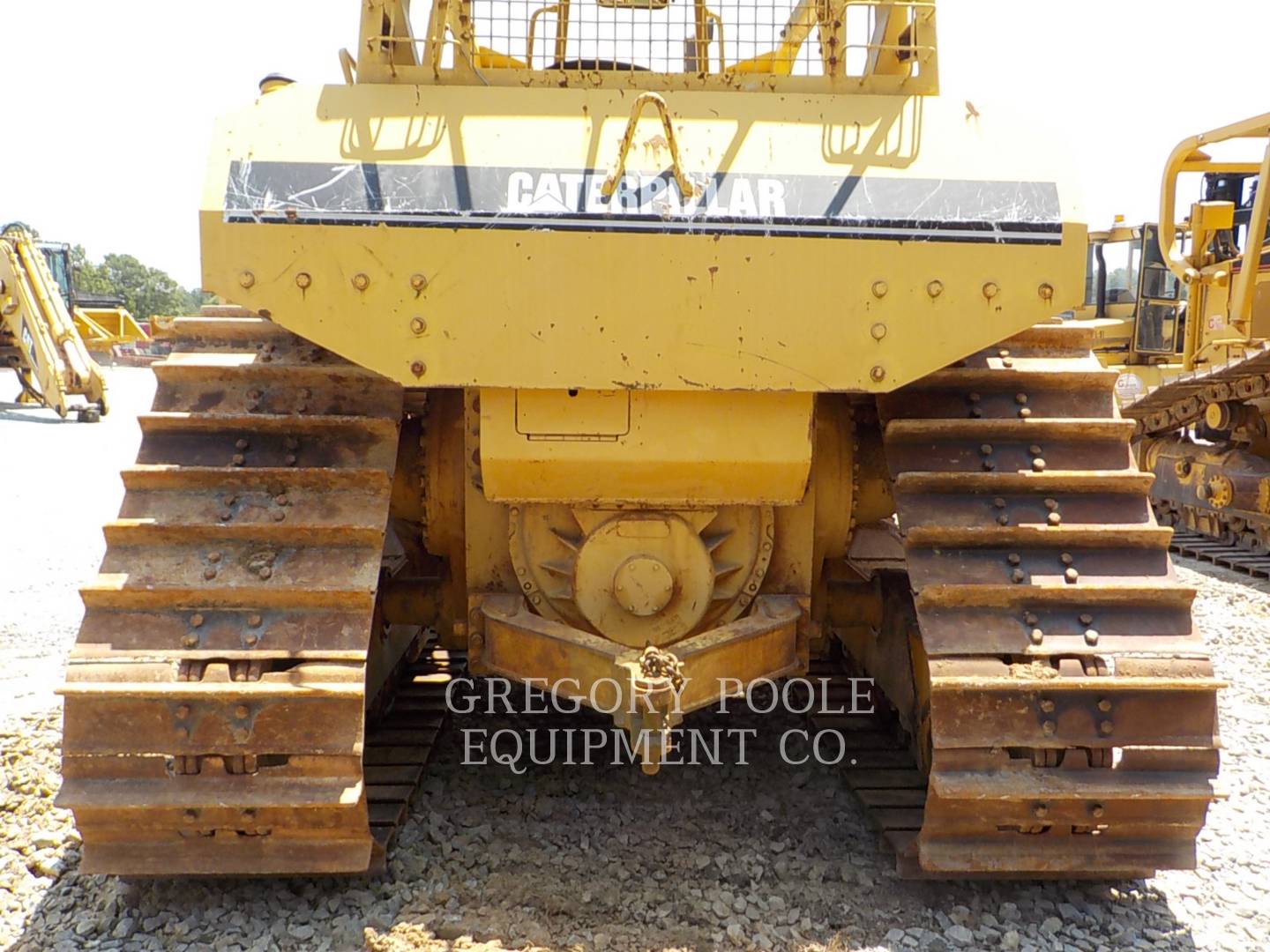

Final Drives

Housings, Left: Good
Housings, Right: Good
Planetaries / Differential, Left: Good
Planetaries / Differential, Right: Good
