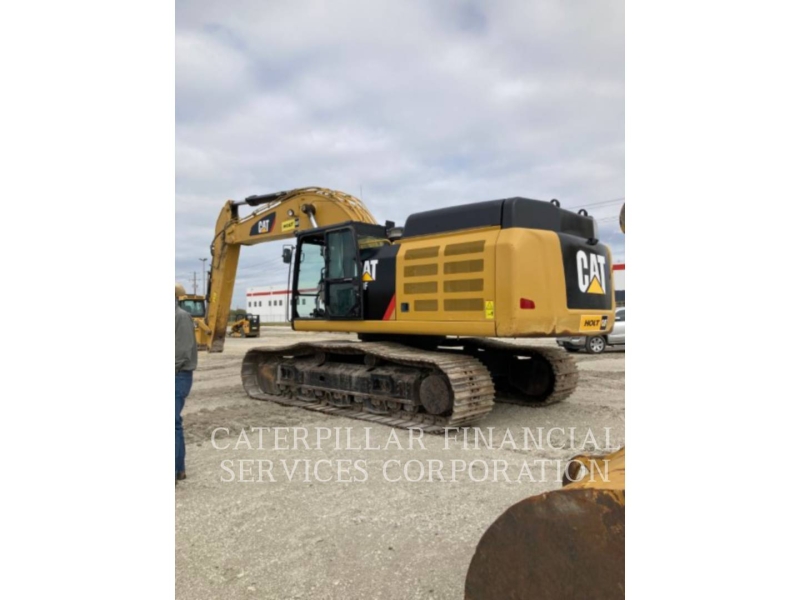

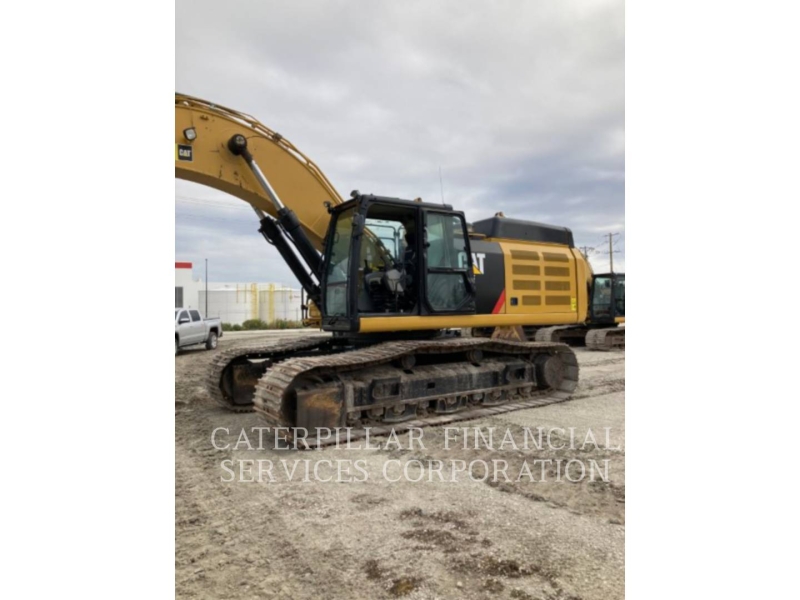

General Appearance

Cleaning Required

Yes

S.O.S. Taken

No

Bumper

Good

Car Body

Good

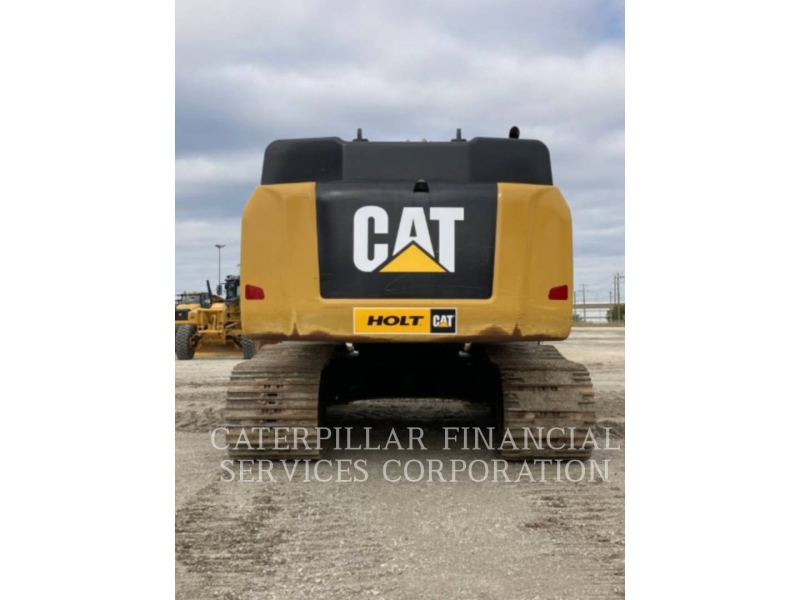

Counterweight

Good

Crankcase Guard / Battery Box

Good

Decals

Good

Draw Bar

Good

Eng. Enclose Hood / Stack

Good

Engine Doors

Good

Fuel Tank

Good

Grab Irons

Good

Main Frame Welds

Good

Paint

Good

Pre-Cleaner Bowl

Good

Radiator Grill & Shroud

Good

Sheet Metal

Good

Steps / Ladder

Good

Safety Items

Safety Decals In Place

Yes

Safety Decals Legible

Yes

Brake Hold

Good

Horn

Good

Secondary Exit

Good

Swing Brake

Good

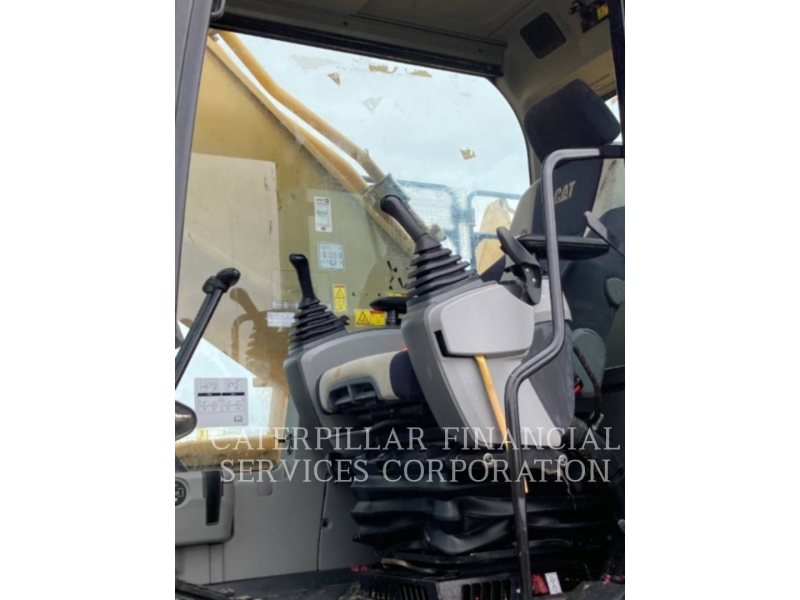

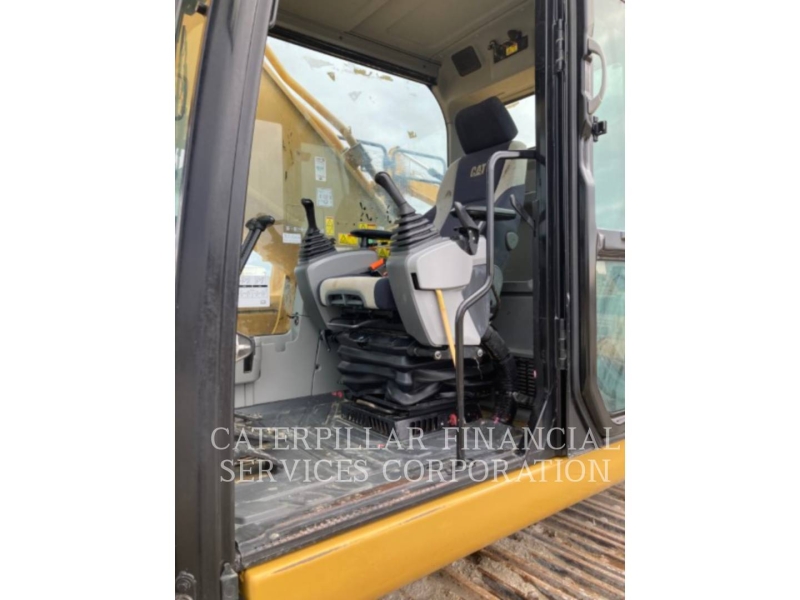

Gauges, Operator Station, Console

Back Up Alarm

Yes

Current O&MM

Yes

Current Safety Manual

Yes

Air Conditioner

Good

Dash Console

Good

Door Latches

Good

EMS Panel / Warnings

Good

Floor Boards

Good

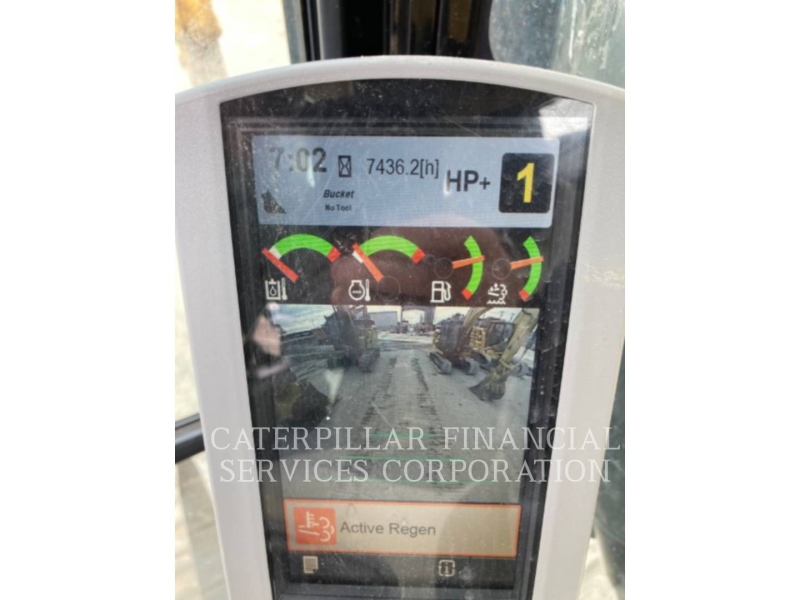

Gauges

Good

Glass/Mirrors

Good

Heater

Good

Interior Lights

Good

Meter

Good

Seat Belt

Good

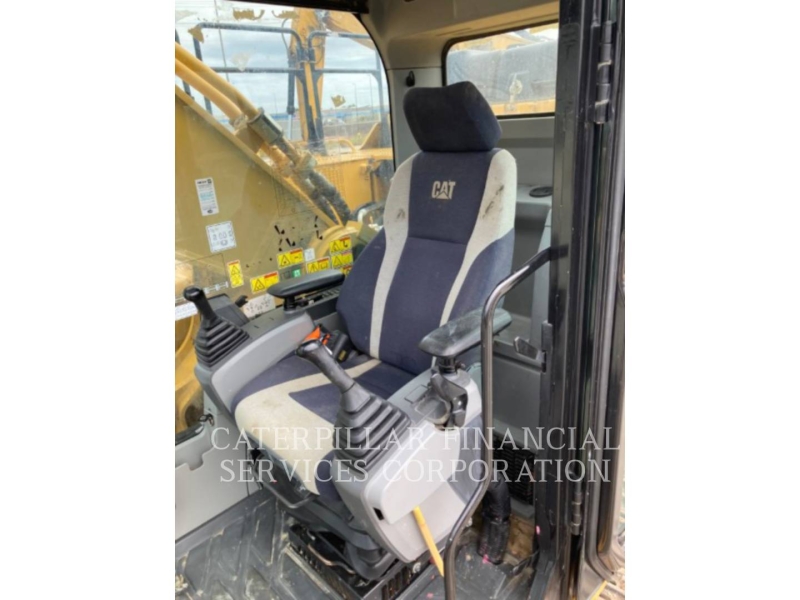

Seat Cushion / Arm Rest

Fair

Switches

Good

Windshield Wipers

Good

Engine

Blow By

No

Compression in Radiator

No

Fluid Levels OK?

Yes

Knocking

No

Oil Leaks

No

Water in Oil

No

Air Cleaners

Good

Belts / Pulleys

Good

Engine Supports

Good

Exhaust / Muffler

Good

Fuel Injection System

Good

Governor

Good

Operating Condition - ENGINE

Good

Turbocharger / Blower

Good

Cooling System

Leaks

No

Coolers

Good

Fan

Good

Fan Drive

Good

Hoses

Good

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

Alternator

Good

Batteries / Cables

Good

Lighting

Good

Starter

Good

Wiring

Good

Hydraulics

Boom Cylinder

Good

Bucket Cylinder

Good

Hose Lines

Good

Hydraulic Swivel

Good

Operating Condition - HYDRAULICS

Good

Pump Drive

Good

Pumps & Valves

Good

Stick Cylinder

Good

Swing Gear

Good

Swing Motors

Good

Tank

Good

Travel Motors

Good

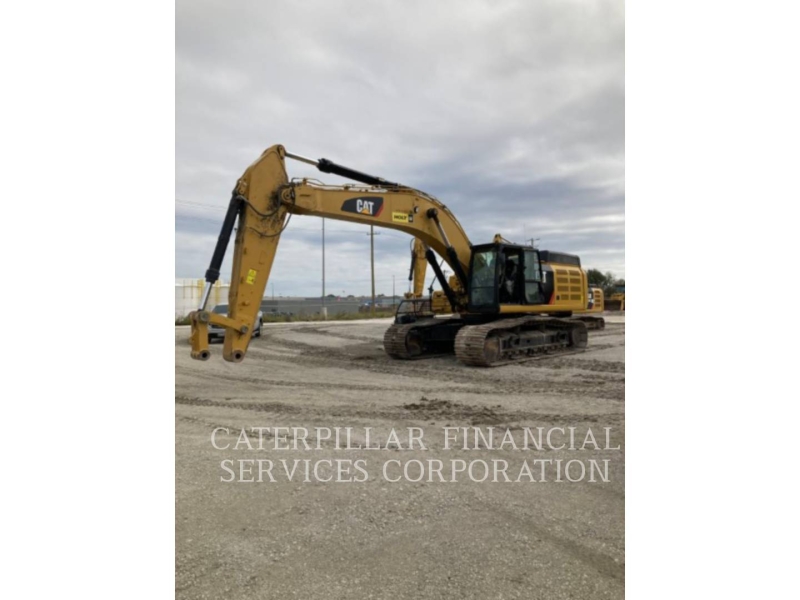

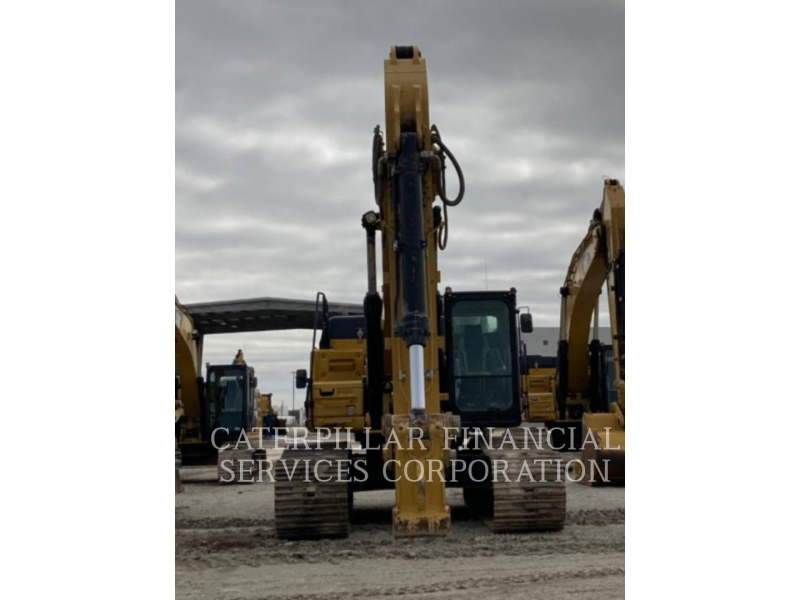

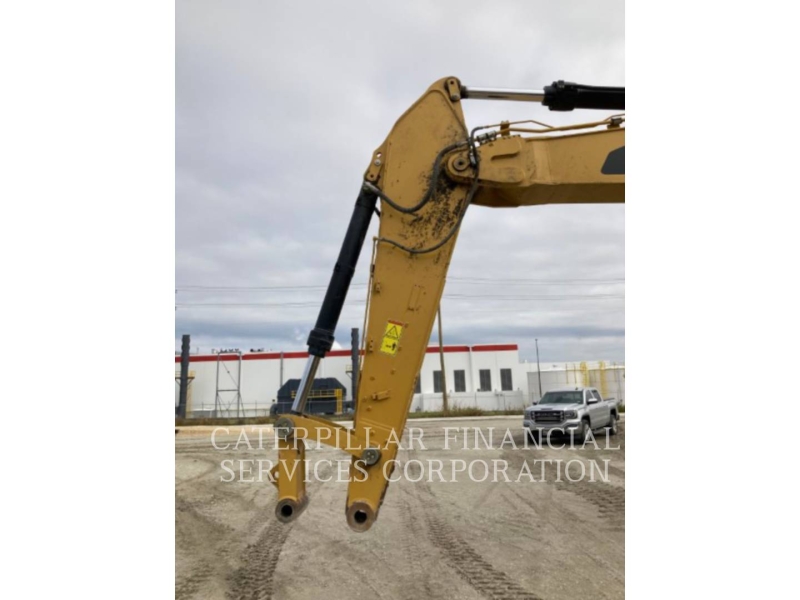

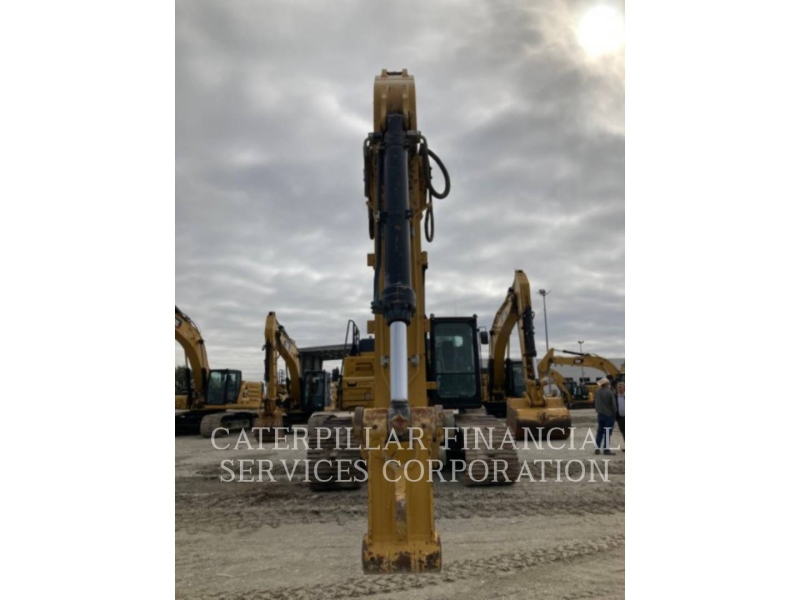

Boom

Boom Condition

Good

Boom Pins

Good

Pins & Bushings - BOOM

Good

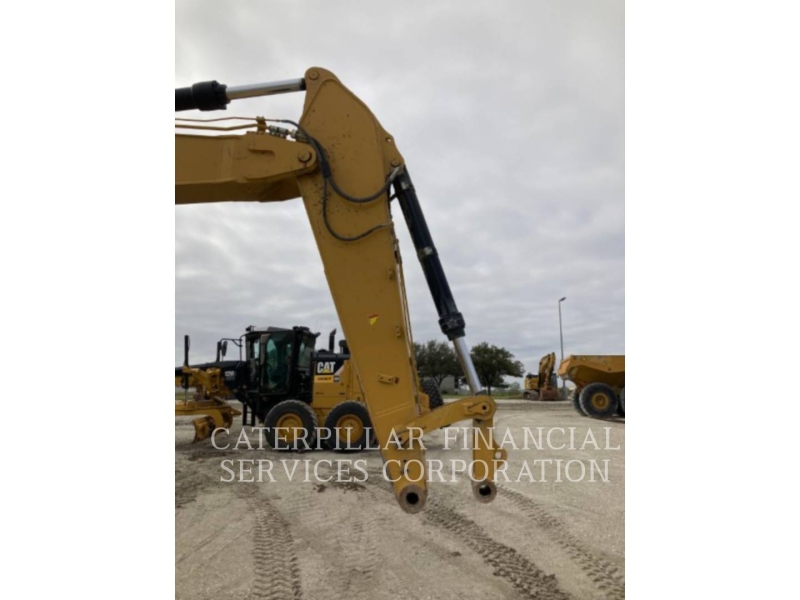

Stick

Pins & Bushings - STICK

Good

Stick Conditions

Fair

Stick Pins

Good

Bucket

Bucket Bottom

Good

Bucket Linkage

Good

Bucket Mounts

Good

Bucket Sides

Good

Teeth / Adapters

Good

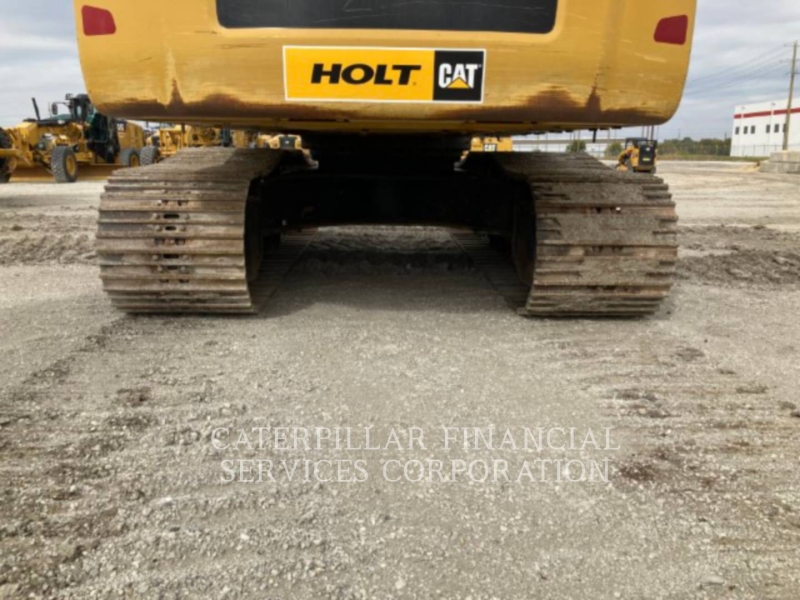

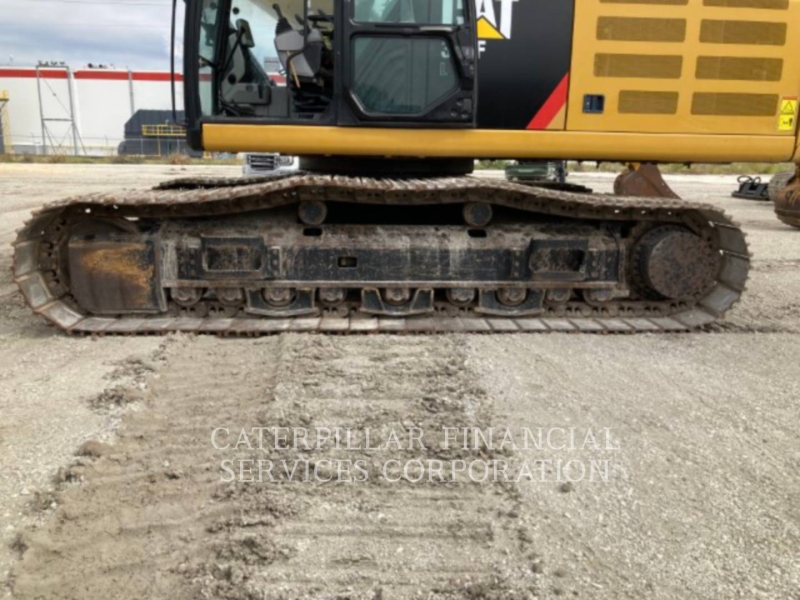

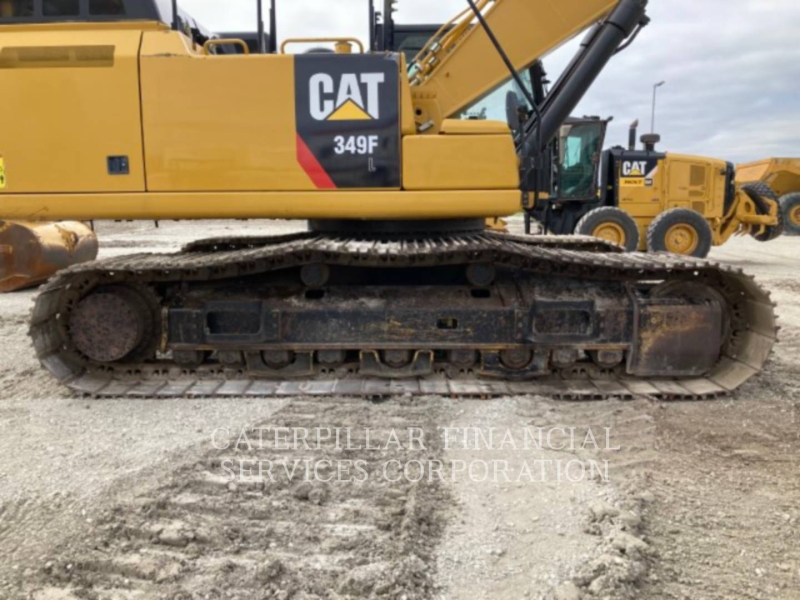

Undercarriage

Pins & Bushings Turned?

No

Track Frame - Left

Good

Track Frame - Right

Good

Carrier Rollers Front

Left: 177 mm Measurement, Left: 24% Worn, Right: 178 mm Measurement, Right: 16% Worn

Carrier Rollers Rear

Left: 177 mm Measurement, Left: 24% Worn, Right: 176 mm Measurement, Right: 32% Worn

Idlers Front

Left: 22 mm Measurement, Left: 28% Worn, Right: 22 mm Measurement, Right: 28% Worn

Links

Left: 127 mm Measurement, Left: 20% Worn, Right: 127 mm Measurement, Right: 20% Worn

Pins & Bushings (External)

Left: 71 mm Measurement, Left: 30% Worn, Right: 71 mm Measurement, Right: 30% Worn

Pins & Bushings (Internal)

Left: 865.5 mm Measurement, Left: 5% Worn, Right: 866 mm Measurement, Right: 10% Worn

Segments

Left: good Measurement, Left: 30% Worn, Right: good Measurement, Right: 30% Worn

Track Roller 1

Left: 23 mm Measurement, Left: 30% Worn, Right: 22.5 mm Measurement, Right: 25% Worn

Track Roller 2

Left: 22 mm Measurement, Left: 20% Worn, Right: 22 mm Measurement, Right: 20% Worn

Track Roller 3

Left: guard Measurement, Right: guard Measurement

Track Roller 4

Left: 22 mm Measurement, Left: 20% Worn, Right: 22 mm Measurement, Right: 20% Worn

Track Roller 5

Left: guard Measurement, Right: guard Measurement

Track Roller 6

Left: 22 mm Measurement, Left: 20% Worn, Right: 22.5 mm Measurement, Right: 25% Worn

Track Roller 7

Left: guard Measurement, Right: guard Measurement

Track Roller 8

Left: 22 mm Measurement, Left: 20% Worn, Right: 23 mm Measurement, Right: 30% Worn

Track Roller 9

Left: 23 mm Measurement, Left: 30% Worn, Right: 23 mm Measurement, Right: 30% Worn

Track Shoes (Width)

Left: 36 in. triple grouser Measurement, Left: 12% Worn, Right: 36 in. triple grouser Measurement, Right: 12% Worn

Final Drives

Housings

Good

Planetaries / Diff

Good
