General Appearance

Cleaning Required

No

Extra Fuel Tanks

No

S.O.S. Taken

Yes

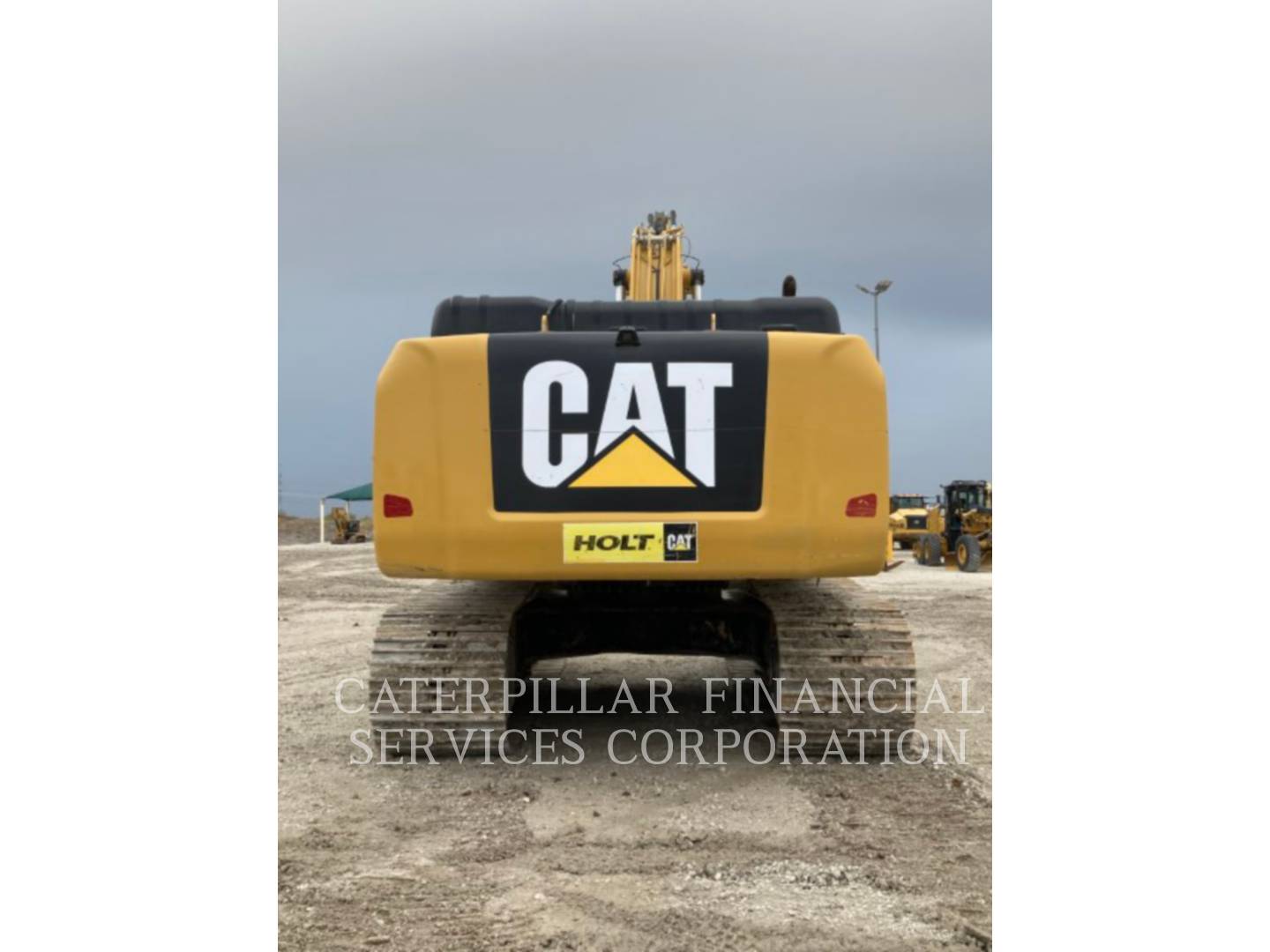

Bumper

Good

Car Body

Good

Catwalk

Fair

Counterweight

Good

Crankcase Guard / Battery Box

Good

Decals

Good

Draw Bar

Good

Eng. Enclose Hood / Stack

Good

Engine Doors

Good

Fuel Tank

Good

Grab Irons

Good

Main Frame Welds

Good

Paint

Fair

Pre-Cleaner Bowl

Good

Radiator Grill & Shroud

Good

Sheet Metal

Fair

Steps / Ladder

Good

Safety Items

ROPS

Yes

Safety Decals In Place

Yes

Safety Decals Legible

Yes

Brake Hold

Good

Horn

Good

Secondary Exit

Good

Swing Brake

Good

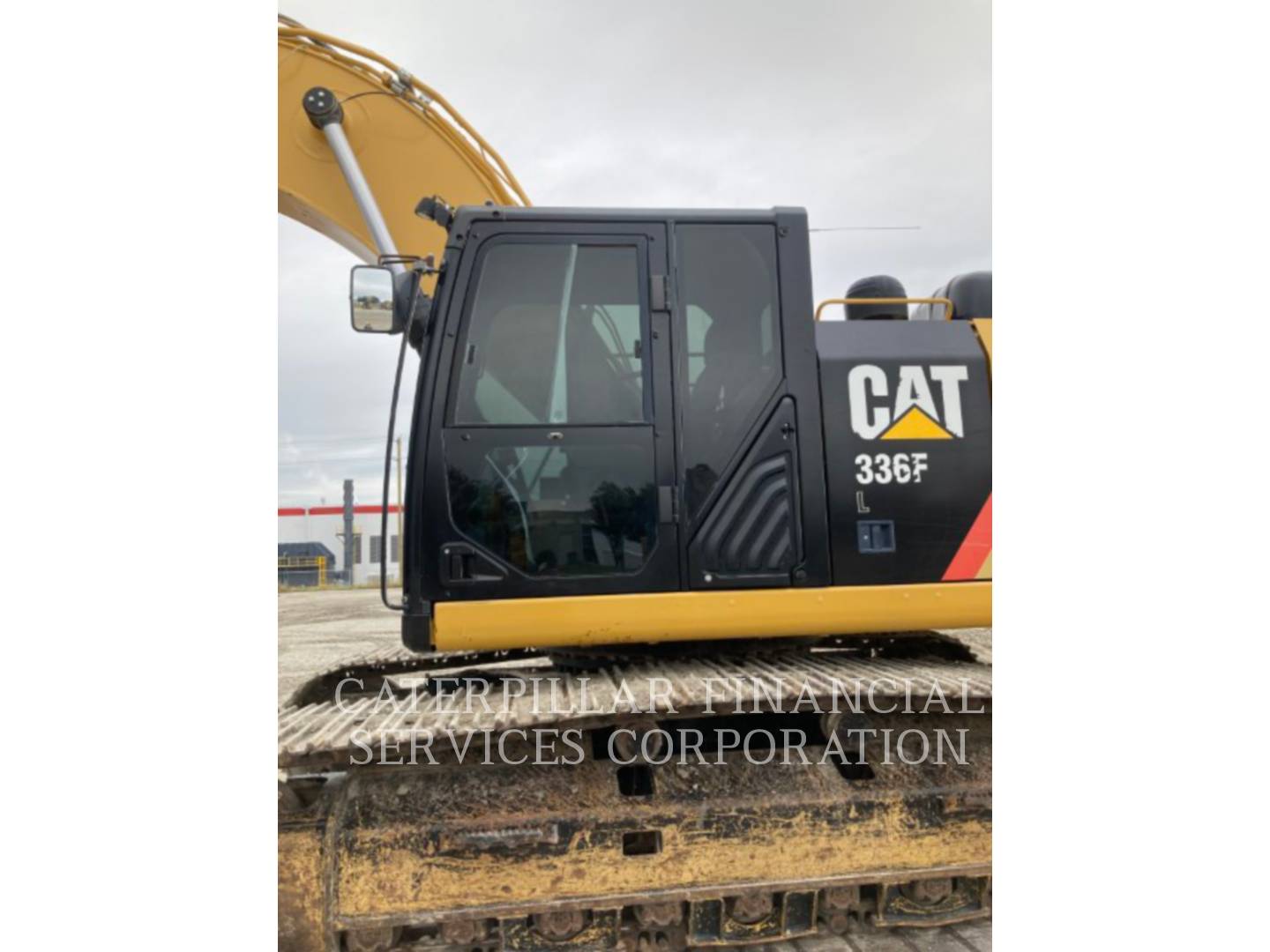

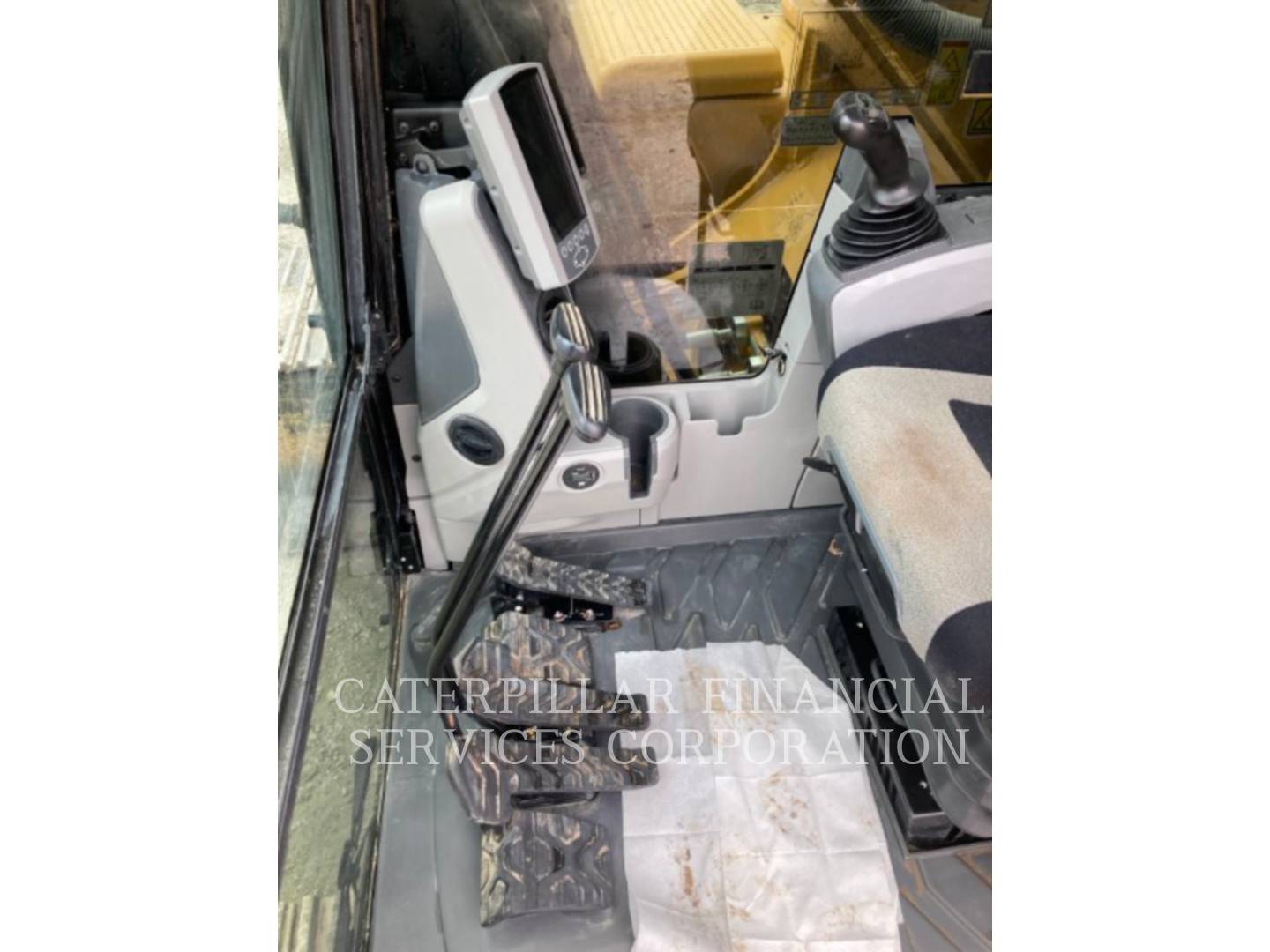

Gauges, Operator Station, Console

Back Up Alarm

Yes

Current O&MM

Yes

Current Parts Manual

No

Current Safety Manual

Yes

Air Conditioner

Good

Dash Console

Good

Door Latches

Good

EMS Panel / Warnings

Fair

Floor Boards

Good

Gauges

Good

Glass/Mirrors

Good

Heater

Good

Interior Lights

Good

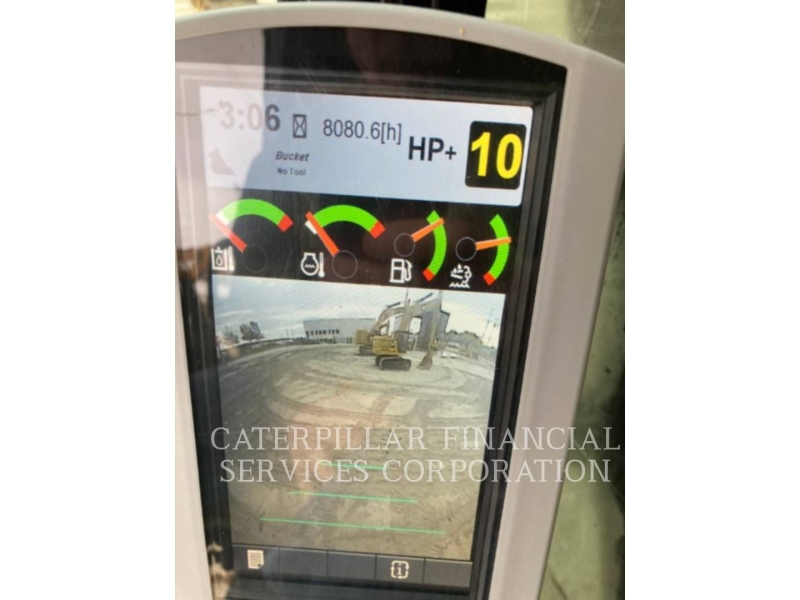

Meter

Good

Seat Belt

Good

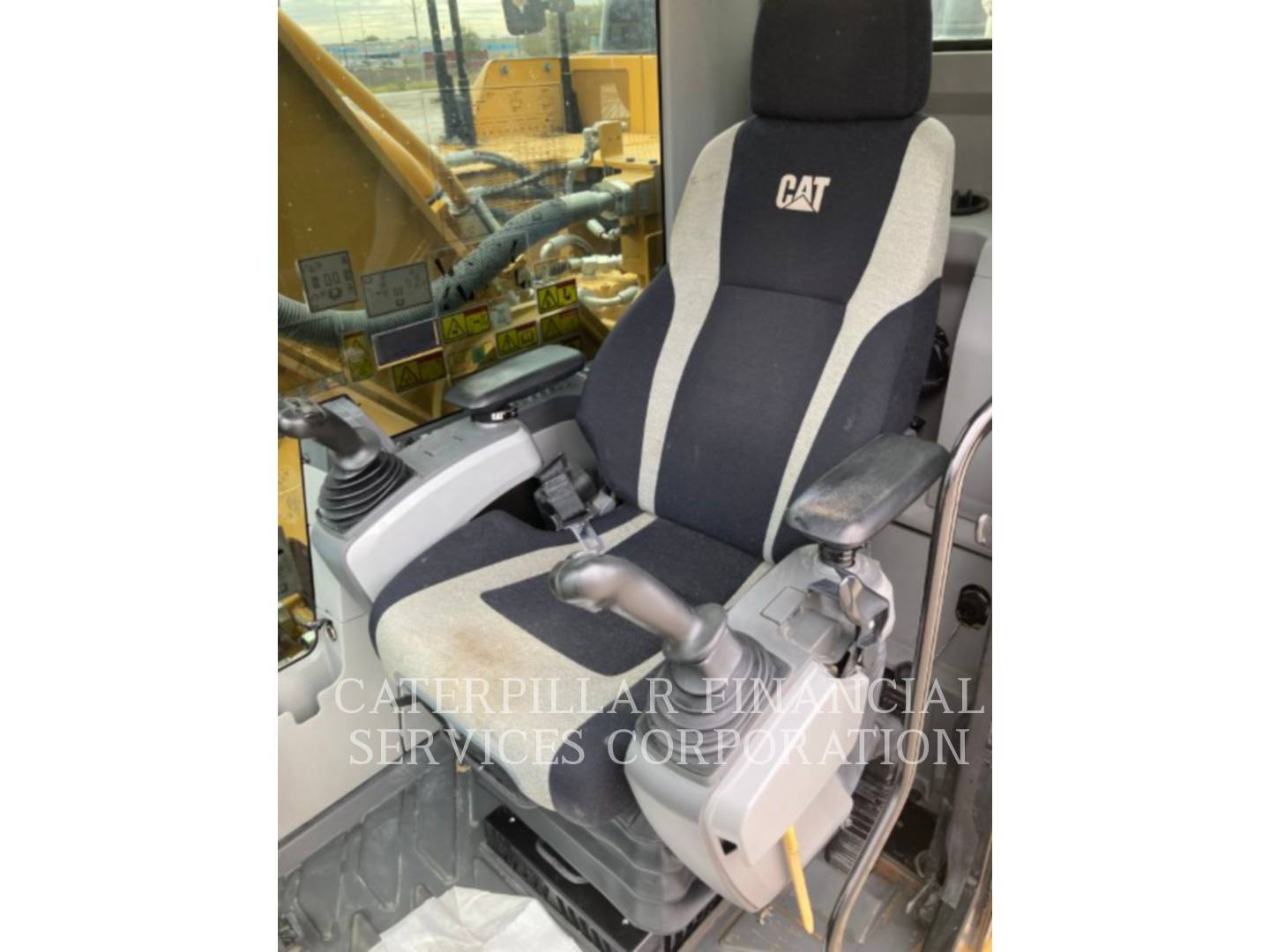

Seat Cushion / Arm Rest

Fair

Switches

Good

Windshield Wipers

Good

Engine

Blow By

No

Compression in Radiator

No

Fluid Levels OK?

Yes

Knocking

No

Oil Leaks

No

Water in Oil

No

Air Cleaners

Good

Belts / Pulleys

Good

Engine Supports

Good

Exhaust / Muffler

Good

Fuel Injection System

Good

Governor

Good

Operating Condition - ENGINE

Good

Turbocharger / Blower

Good

Cooling System

Leaks

No

Coolers

Good

Fan

Good

Fan Drive

Good

Hoses

Good

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

Alternator

Good

Batteries / Cables

Good

Lighting

Good

Starter

Good

Wiring

Good

Hydraulics

Boom Cylinder

Good

Bucket Cylinder

Good

Hose Lines

Good

Hydraulic Swivel

Good

Operating Condition - HYDRAULICS

Good

Pump Drive

Good

Pumps & Valves

Good

Stick Cylinder

Good

Swing Gear

Good

Swing Motors

Good

Tank

Good

Travel Motors

Good

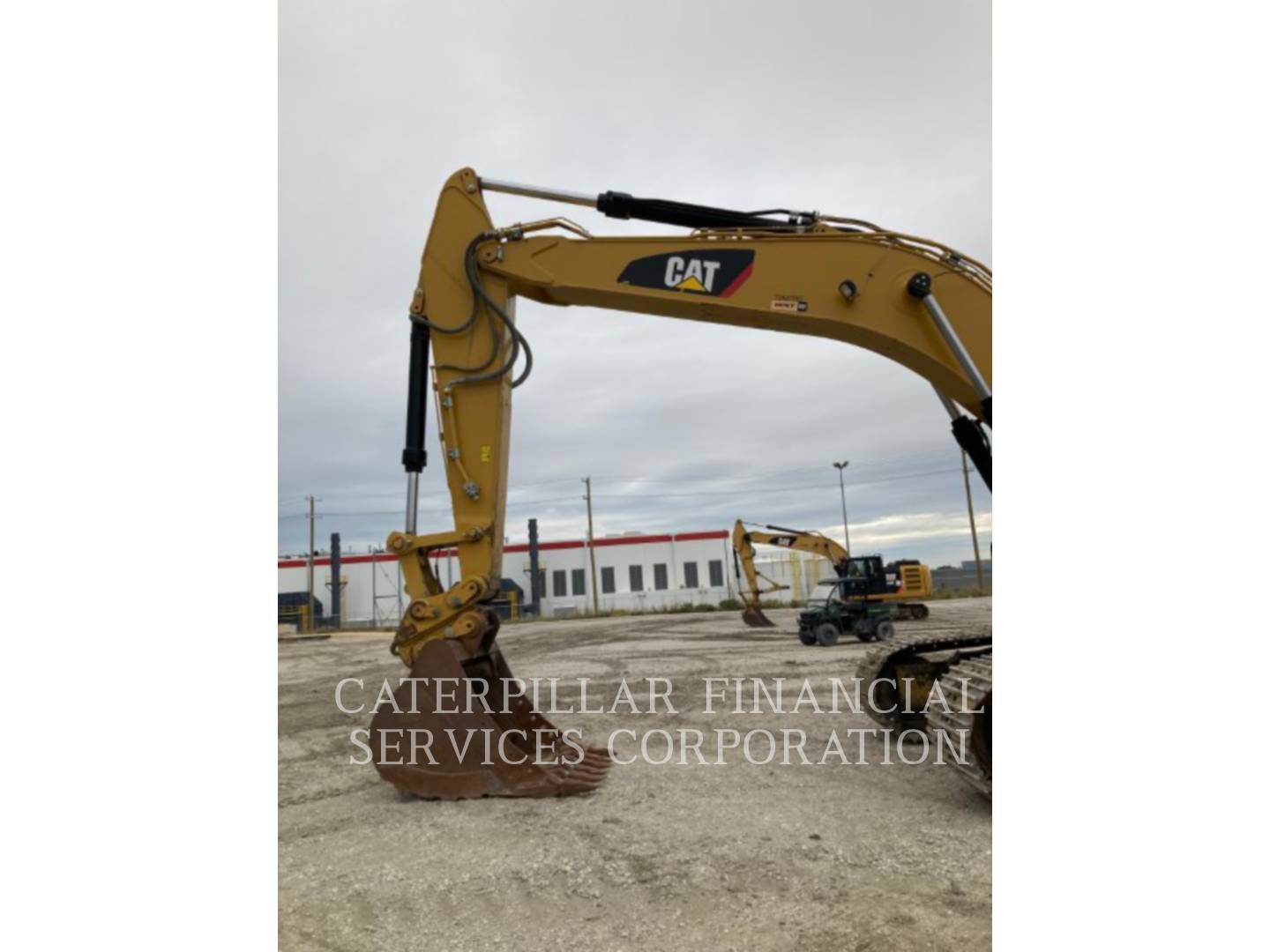

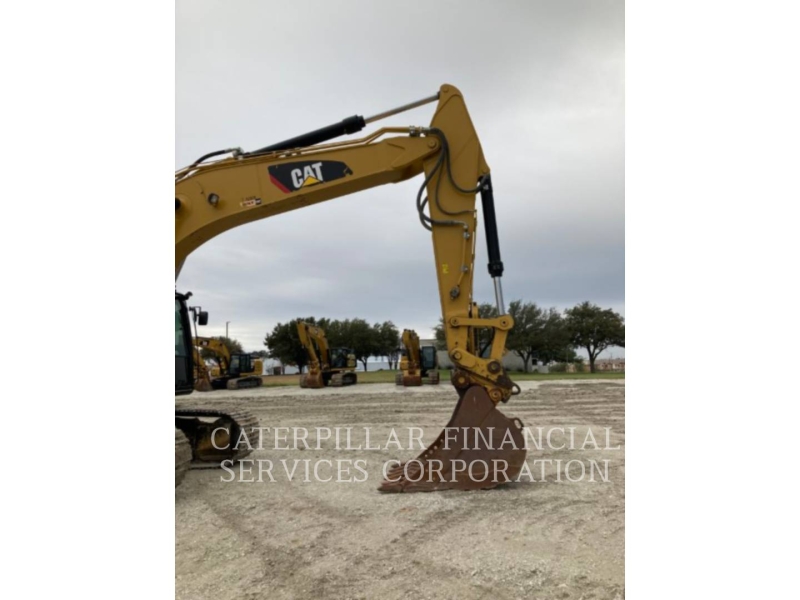

Boom

Boom Condition

Good

Boom Pins

Good

Pins & Bushings - BOOM

Fair

Stick

Pins & Bushings - STICK

Poor

Stick Conditions

Fair

Stick Pins

Good

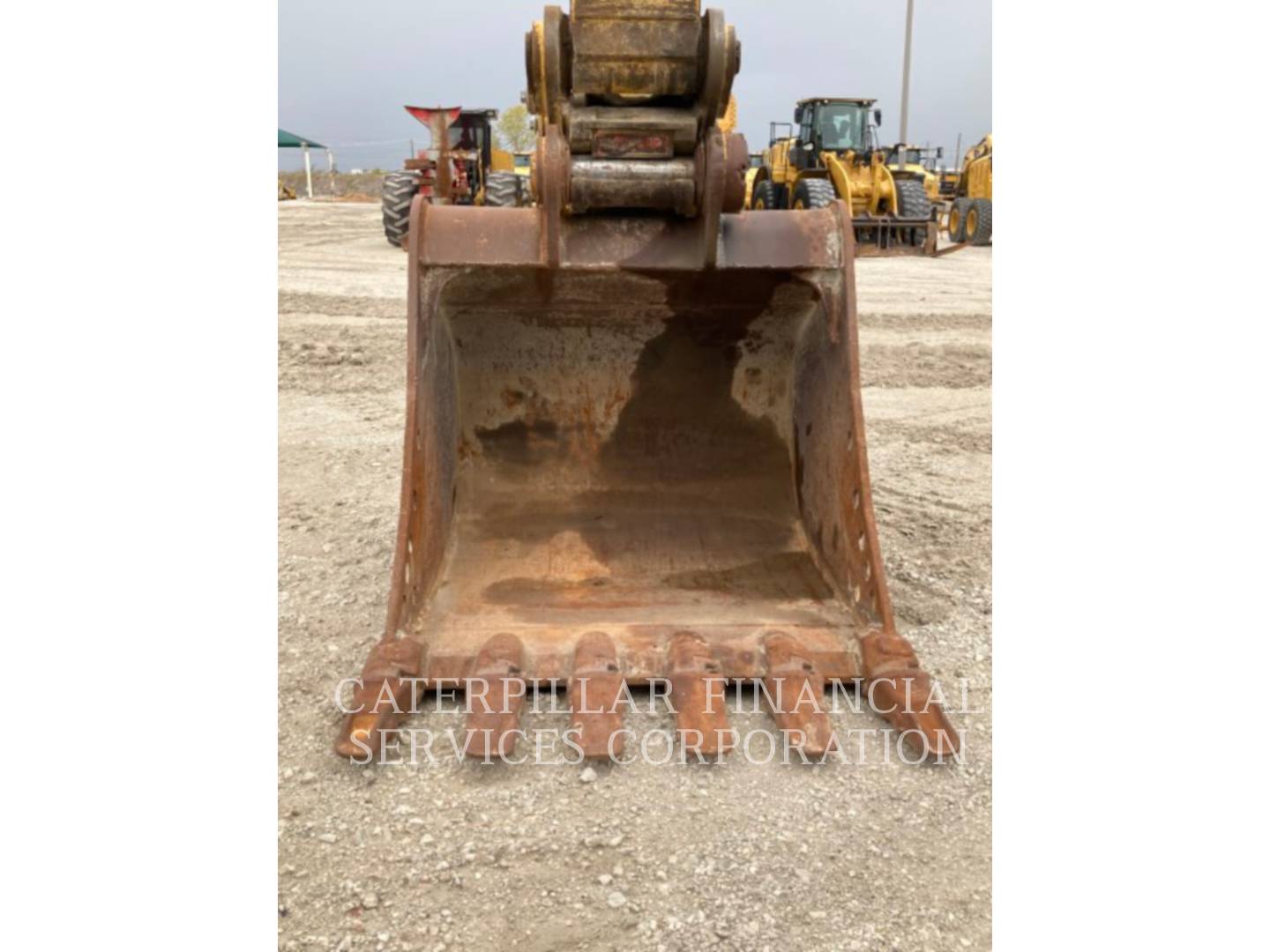

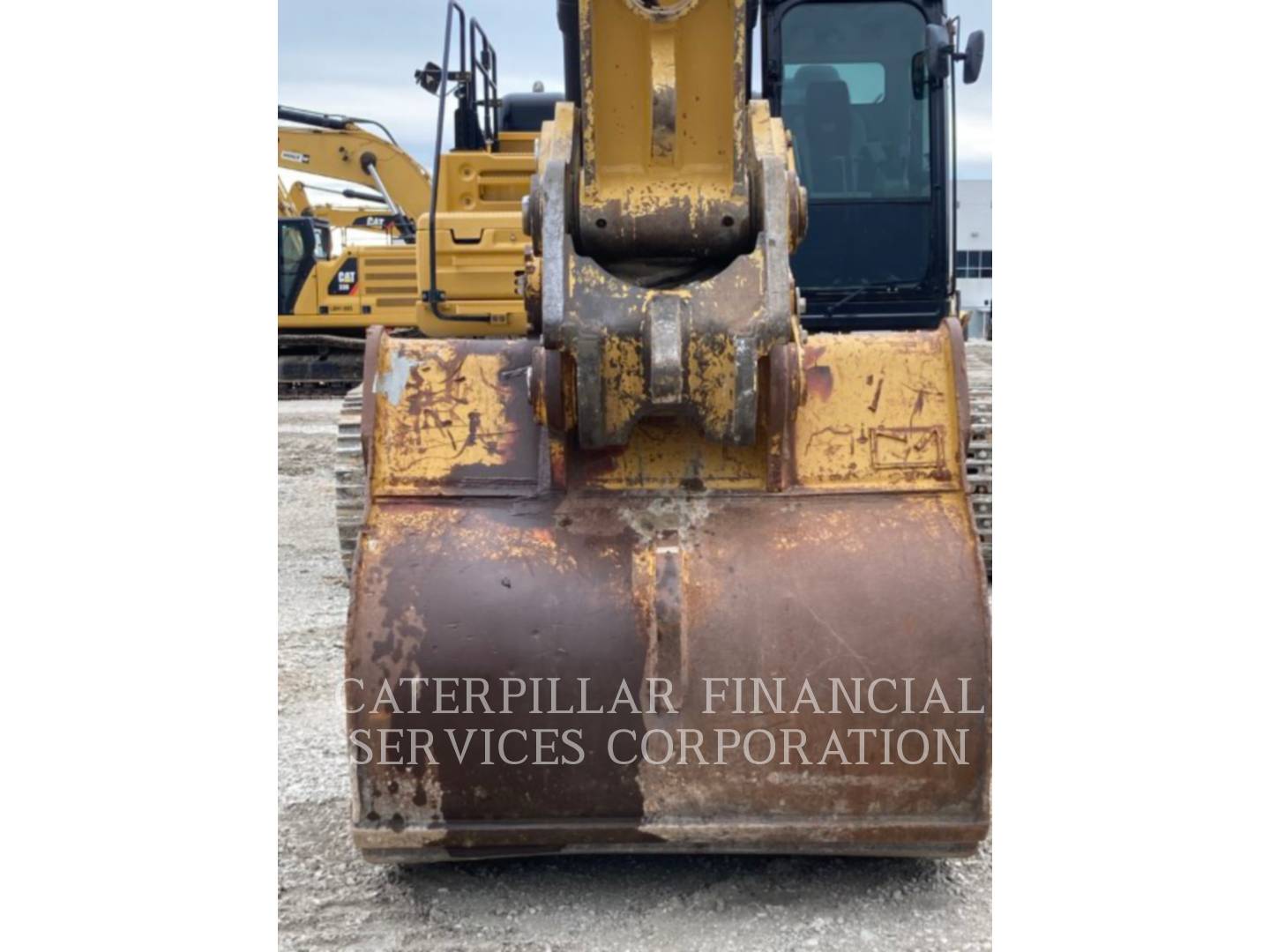

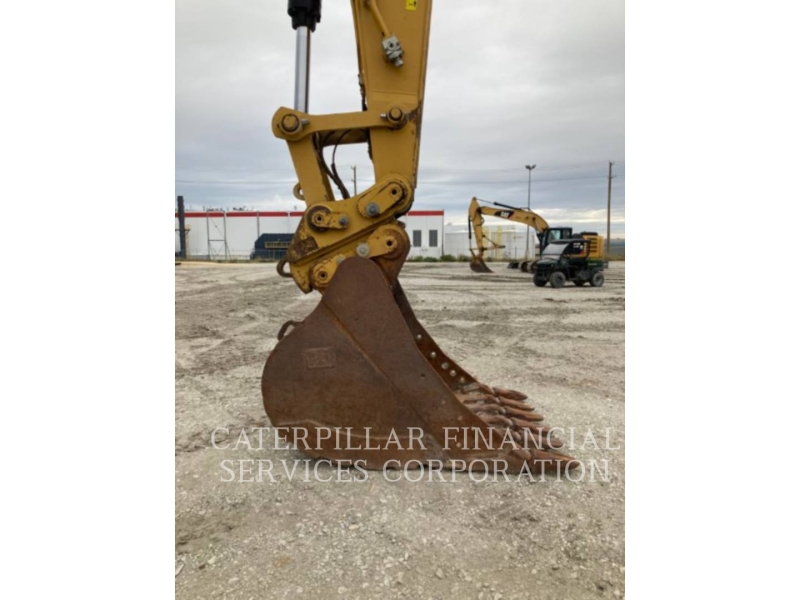

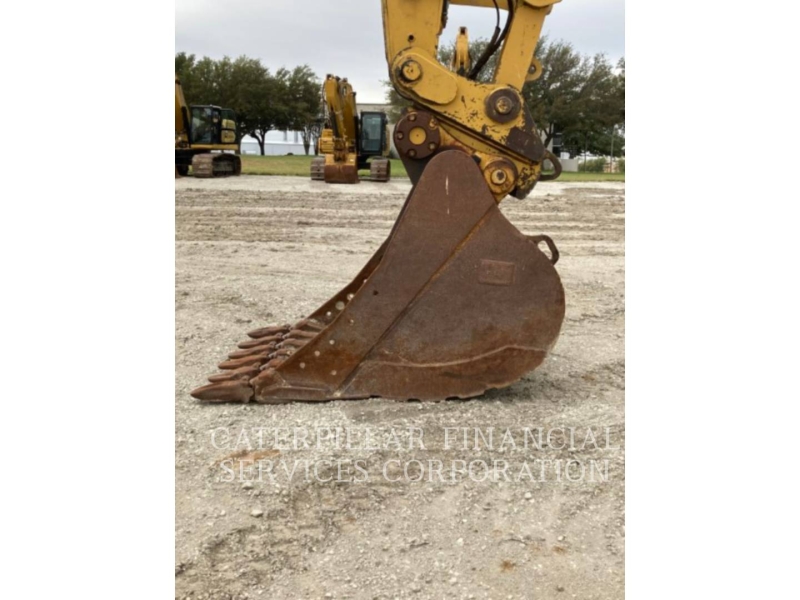

Bucket

Bucket Bottom

Fair

Bucket Linkage

Fair

Bucket Mounts

Fair

Bucket Sides

Fair

Teeth / Adapters

Fair

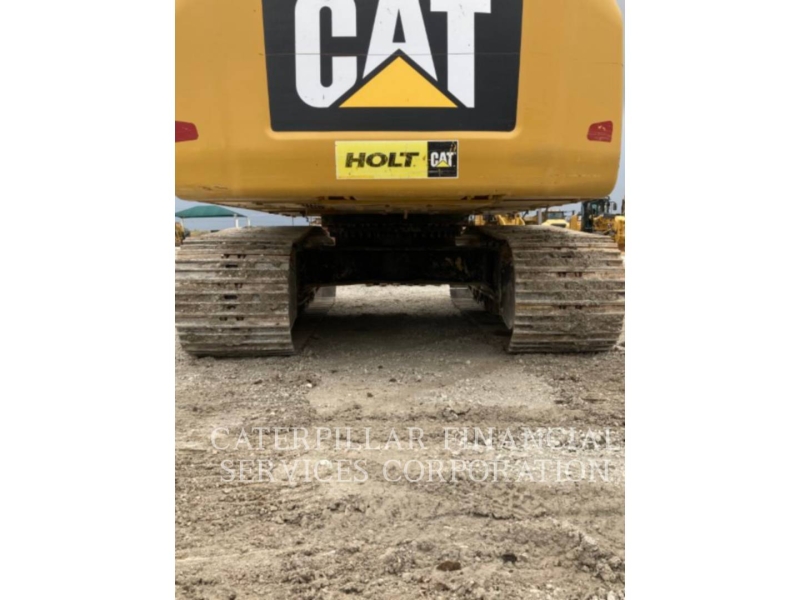

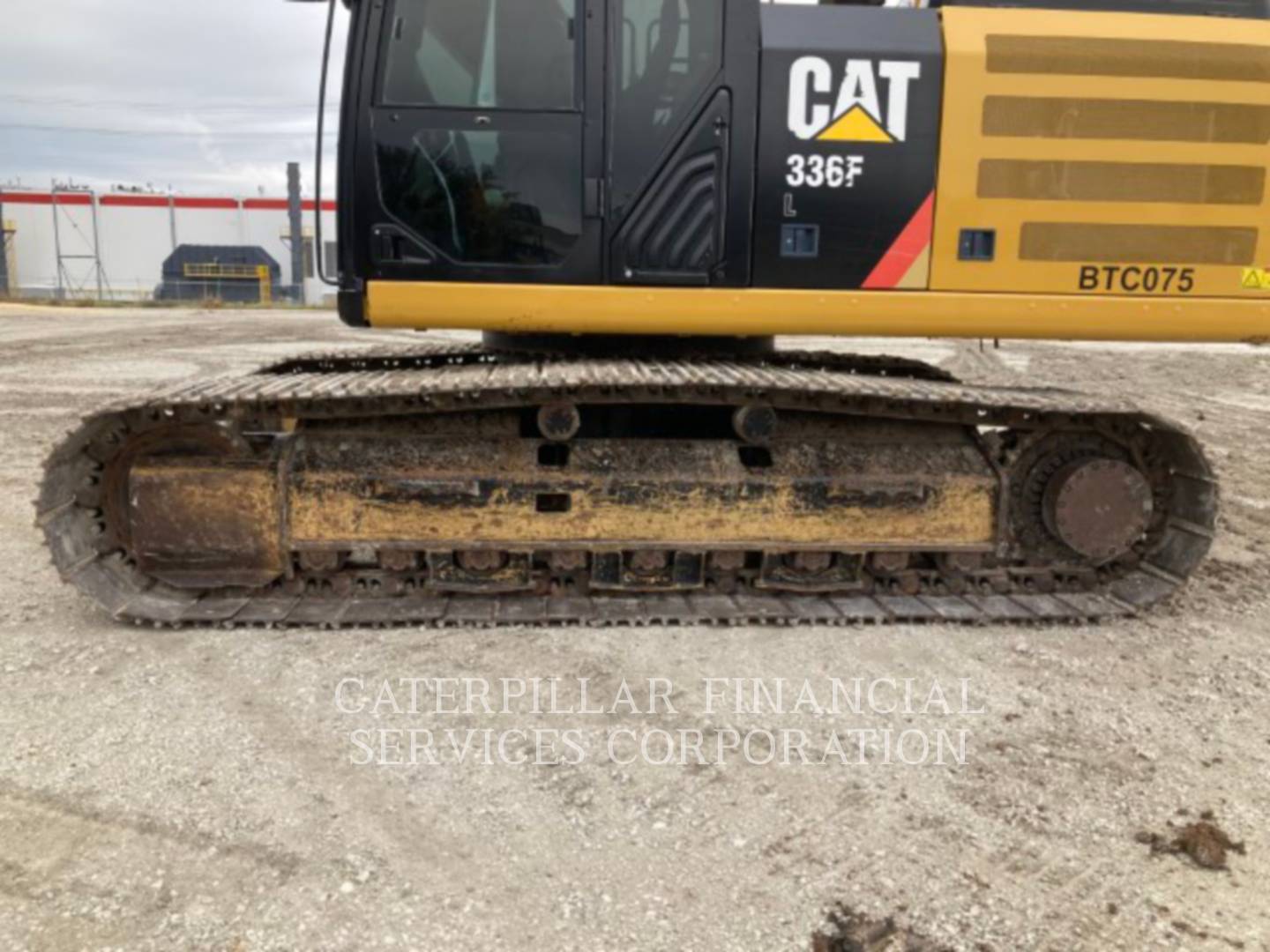

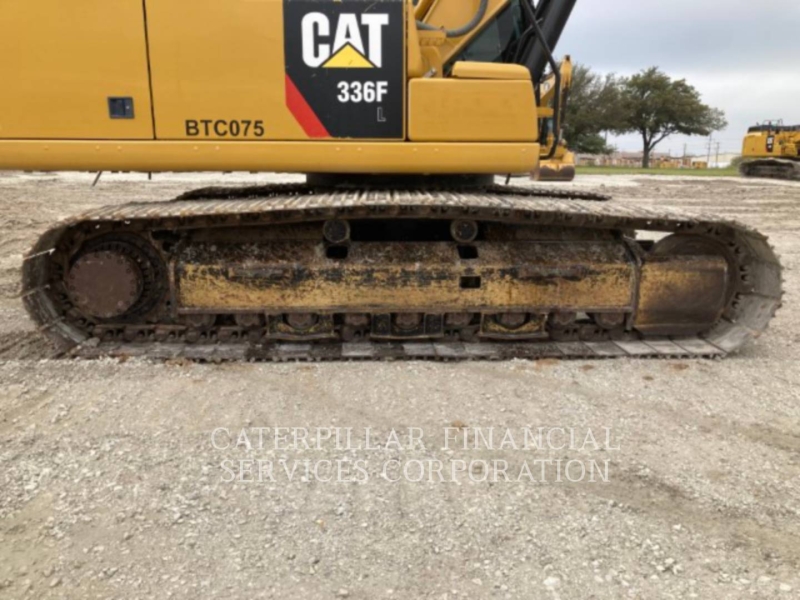

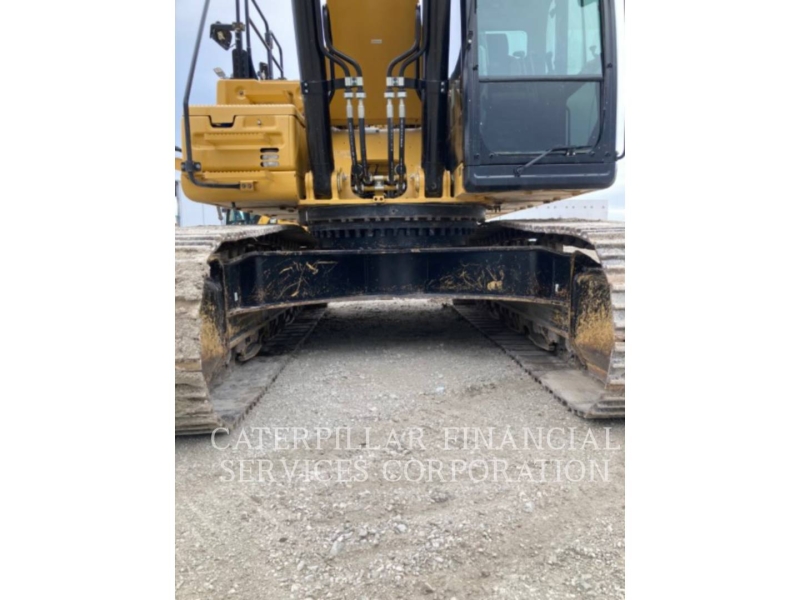

Undercarriage

Pins & Bushings Turned?

Yes

Track Frame - Left

Good

Track Frame - Right

Good

Carrier Rollers Front

Left: 151 mm Measurement, Left: 36% Worn, Right: 150 mm Measurement, Right: 40% Worn

Carrier Rollers Rear

Left: 151 mm Measurement, Left: 36% Worn, Right: 151 mm Measurement, Right: 36% Worn

Idlers Front

Left: 23 mm Measurement, Left: 40% Worn, Right: 23 mm Measurement, Right: 40% Worn

Links

Left: 120.5 mm Measurement, Left: 49% Worn, Right: 121 mm Measurement, Right: 42% Worn

Pins & Bushings (External)

Left: turned Measurement, Right: turned Measurement

Pins & Bushings (Internal)

Left: 867.5 mm Measurement, Left: 20% Worn, Right: 868 mm Measurement, Right: 25% Worn

Segments

Left: good Measurement, Right: good Measurement

Track Roller 1

Left: 22 mm Measurement, Left: 44% Worn, Right: NEW Measurement, Right: 0% Worn

Track Roller 2

Left: 21 mm Measurement, Left: 35% Worn, Right: 22 mm Measurement, Right: 44% Worn

Track Roller 3

Left: guard Measurement, Right: guard Measurement

Track Roller 4

Left: 20.5 mm Measurement, Left: 25% Worn, Right: 21 mm Measurement, Right: 30% Worn

Track Roller 5

Left: guard Measurement, Right: guard Measurement

Track Roller 6

Left: 20.5 mm Measurement, Left: 25% Worn, Right: 21 mm Measurement, Right: 30% Worn

Track Roller 7

Left: guard Measurement, Right: guard Measurement

Track Roller 8

Left: 21 mm Measurement, Left: 30% Worn, Right: 21.5 mm Measurement, Right: 40% Worn

Track Roller 9

Left: NEW Measurement, Left: 0% Worn, Right: NEW Measurement, Right: 0% Worn

Track Shoes (Width)

Left: 34 in. triple grouser Measurement, Left: 30% Worn, Right: 34 in. triple grouser Measurement, Right: 30% Worn

Final Drives

Housings

Good

Planetaries / Diff

Good
